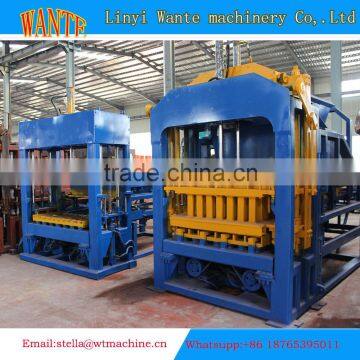

QT10-15 Full automatic producing line
The parts of the line
Batching machine----PLD1200
Model |
PL1200 |
Weigh bucket capacity (L) |
1200 |
Productivity m3/h) |
56 |
Batching precision |
±1Energy saved |
Max weighing capacity (kg) |
3000 |
Number of material matching |
3 |
Work loading height (mm) |
3000 |
Feeding belt speed (m/s) |
1 |
Power (kw) |
12 |
Gross weight (kg) |
4000 |
Demission (mm) |
9000*2200*3500 |
Model |
JS750 |
|
Charging Capacity (L) |
1000 |
|
Discharging Capacity (L) |
750 |
|
Production Capacity (m3/h) |
≥25 |
|
Max Aggregate Diameter (mm) |
≤40/60 |
|
Cycle Time (s) |
72 |
|
Stirring Vane |
Rev Speed (r/min) |
31 |
Quantity |
4×7 |
|
Stirring Motor |
Model |
|
Power (KW) |
25.5 |
|
Lifting Motor |
Model |
|
Power (KW) |
5.5 |
|
Pump Motor |
Model |
|
Power (KW) |
0.75 |
|
Dimensions ( mm) |
Travel State |
3230×2520×2880 |
Operation State |
5525×3100×5680 |
|
Total weight (Kg) |
6500 |
|
Main specification and technical parameters | |
Overall size |
3500x2220x2850mm |
Shaping cycle |
15-20 seconds |
Pallet size |
1300x900x30mm (bamboo) |
1300x900x30mm (plastic) | |
Vibration frequency |
Max.4000 R/Min |
Electricity |
380V/220V/ (adjustable) |
Vibration force |
120KN |
Total weight |
13000 KGS |
Bricks and capacity
We have our long-term and reliable shipping company, which could guarantee to provide best freight service.
However, if the customer required, we could use their own nominated shipping service.
1. History
Linyi WANTE machinery Co.,Ltd has more than 18 years' exprience of manufacturing burn-free block machine.We are always the leading company in the field of block macihines industry. for now,
we have achieved essential ceticifications domestic and overseas,such like ISO9001,CE.
2.Profession
Our products are Automatic Burn-free brick making machine, aerated concrete block production line,
aerated concrete wall panel production line.Our company posses more than 2000 employees,and one
third of them are professional engineers.
