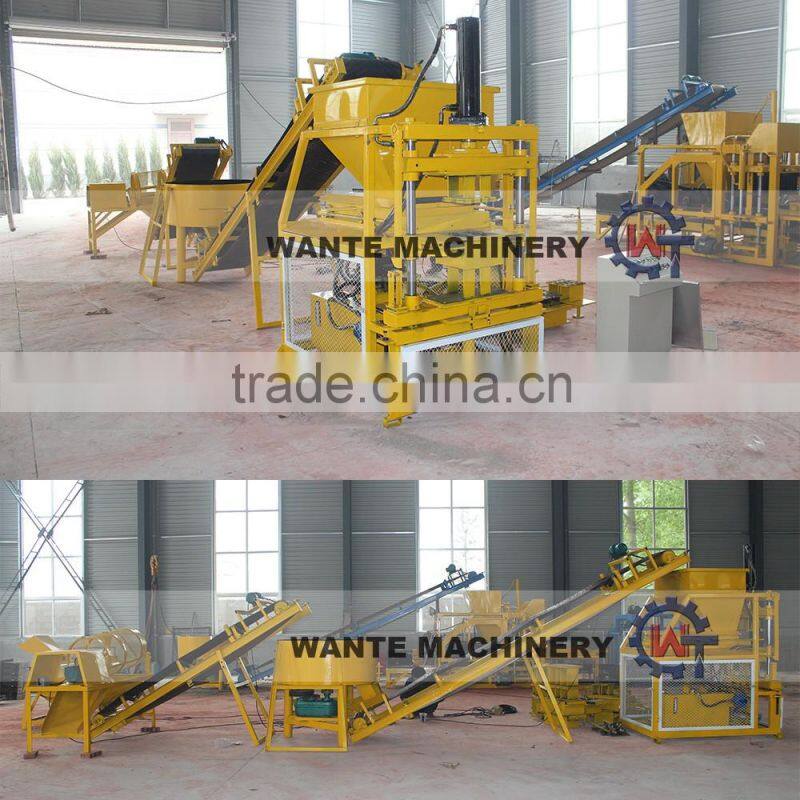

WANTE MACHINERY WT2-10 high pressure auto clay interlocking block machine
WANTE MACHINERY WT2-10 high pressure auto clay interlocking block machine
Working process:

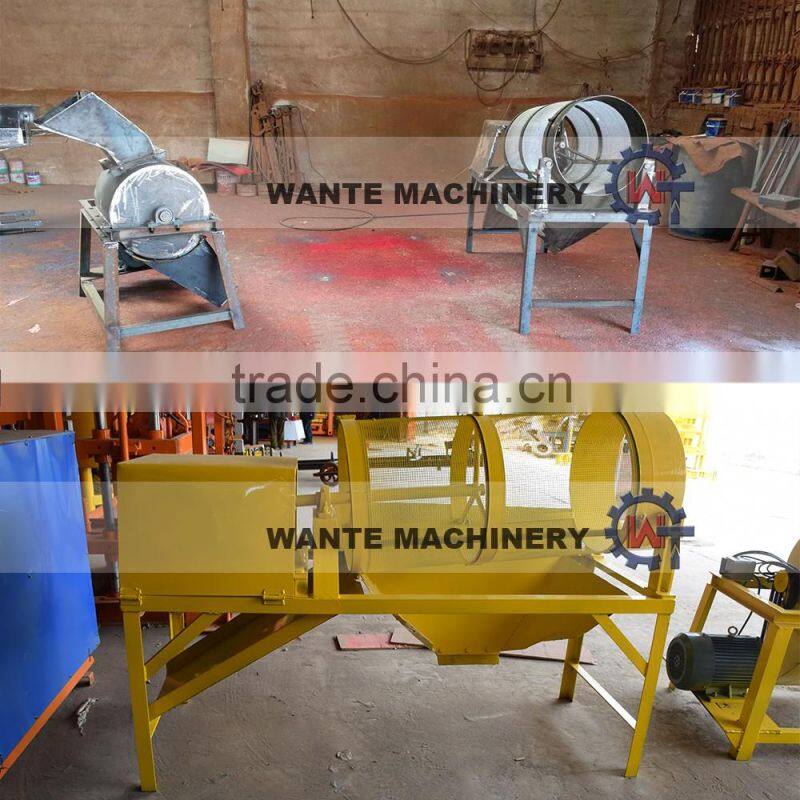

1. Big clay made into small size by soil crusher
2. Remove the big size clay, use small size clay only
3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.
5. Produce green block.
6. Carry the green block to curing aera.
WANTE MACHINERY WT2-10 high pressure auto clay interlocking block machine
Specification date:
WT2-10 high pressure auto clay interlocking block machine | |
Overall size |
2500(L)×900(W)×2300(H)mm |
Shaping cycle |
6-8 seconds |
Power |
7.5 KW |
15 Hp diesel engine | |
Pressure |
16Mpa |
Total weight |
1300 KGS |
Conveyor belt | |
Belt width (M) |
6(4.5/3) |
Belt length (M)/KW |
6/2.2 |
Belt speed (M/S) |
2 |
JD350 mixer | |
Overall size |
1200(L)×1200(W)×1300(H)mm |
Shaping cycle |
5 mins |
Volume |
350L (25Kgs Cement) |
Electricity |
380V/220V/ (adjustable) |
Total weight |
330KG |
Soil crusher | |
Overall size mm |
1100(L)x1100(W)x1400(H)mm |
Motor |
5.5kw |
Electricity |
220v |
380v | |
Capacity |
500KGS/H |
Total weight |
200 KGS |
Soil screen | |
Power |
3KW |
Capacity |
480KGS/h |
Total weight |
300KGS |

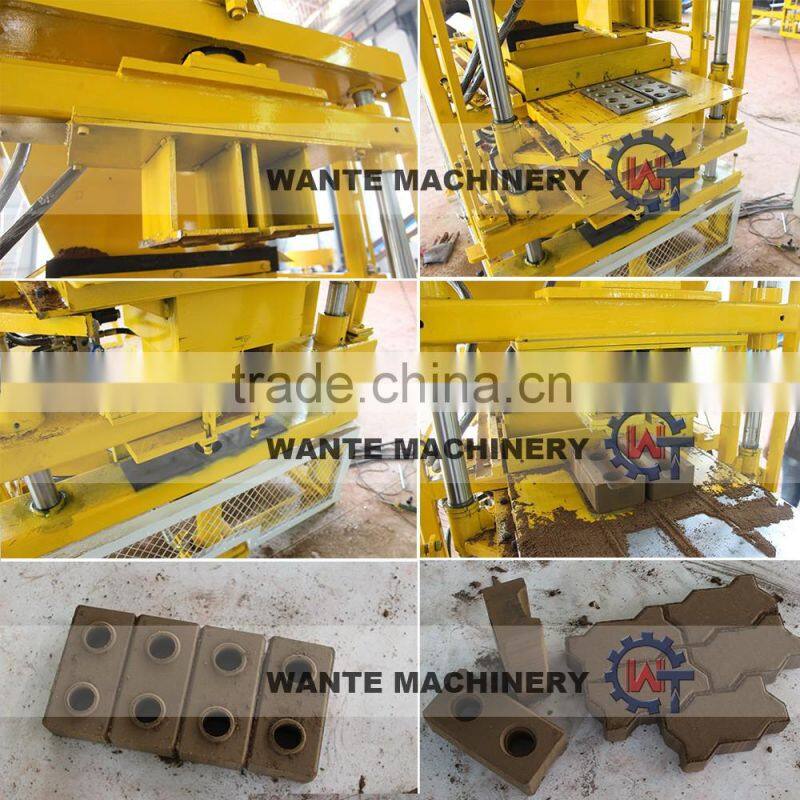

Block Moulding Process:

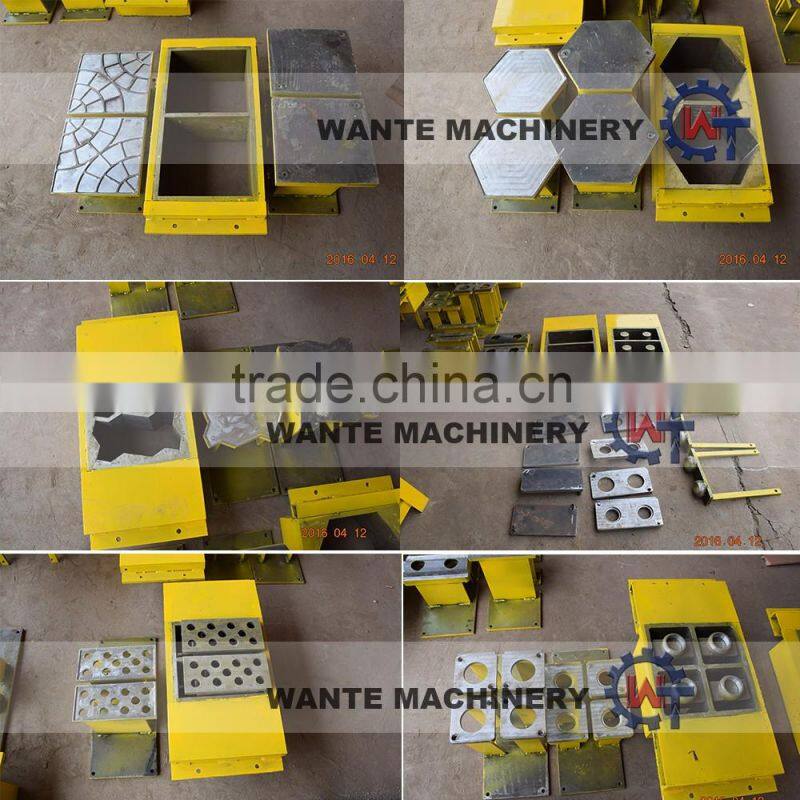

Different interlocking bricks made by changing moulds:

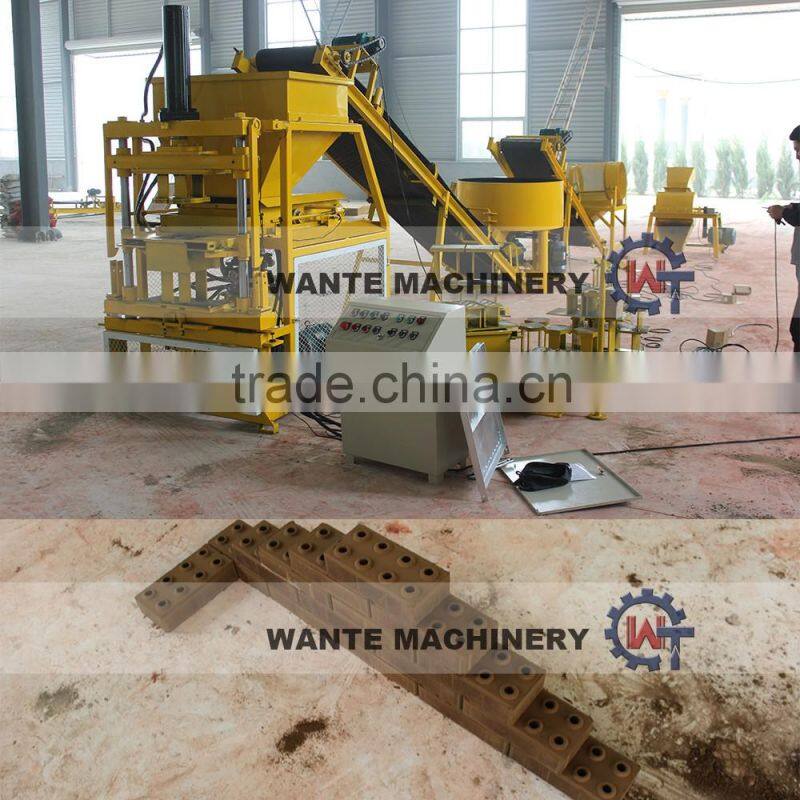

Bricks test:
