1.It's a full automatic production line, the host machien can work perfectly with mixer, conveyor belt,
color materail feeder and stacker, the efficiency is very high.
2.From this machine, we strat using hydraulic pressure as main pressure source,so the pression is very good,the vibration force can be 40-50 kn, this guaranteeing the density and uniform of blocks.
3.QT4-15 is equiped with isolate hydraulic statioin, it's cooling system working well and stablely,
reduces the risk of high temperature of hydraulic oil.

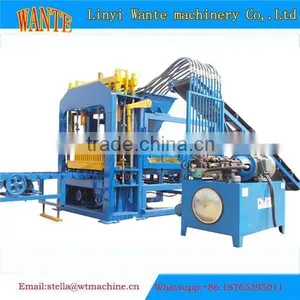

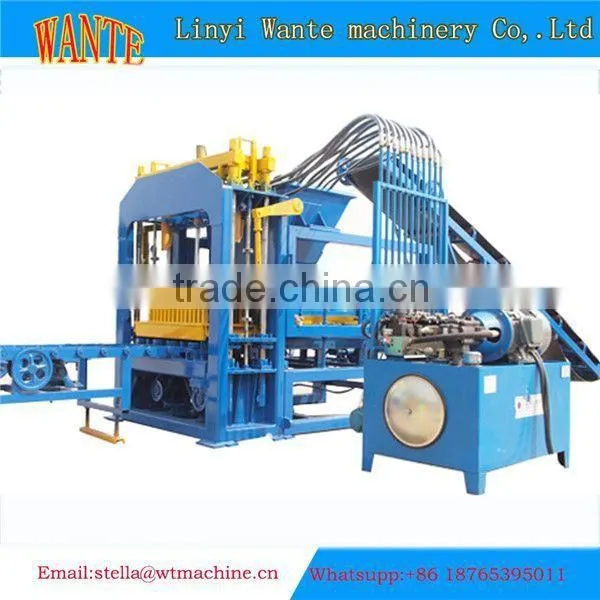

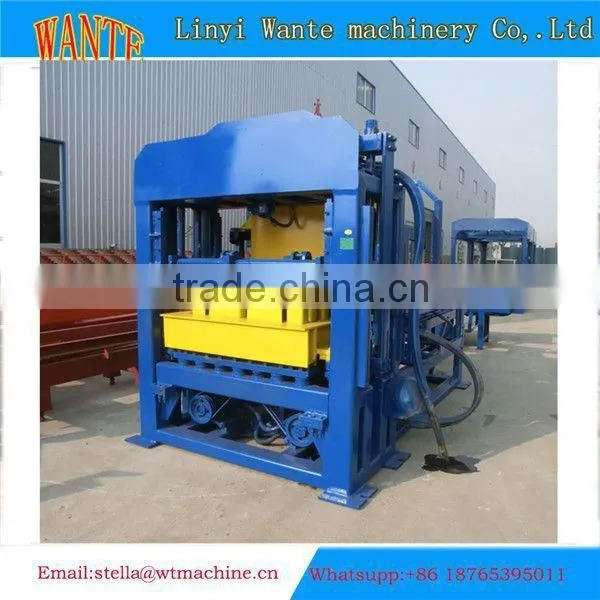

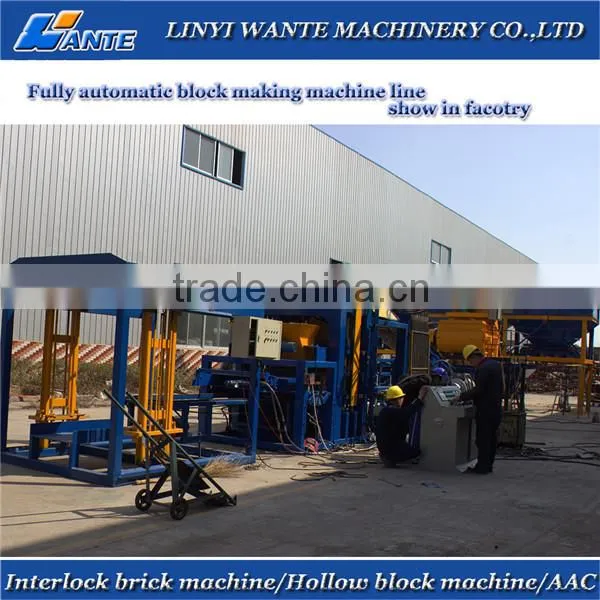

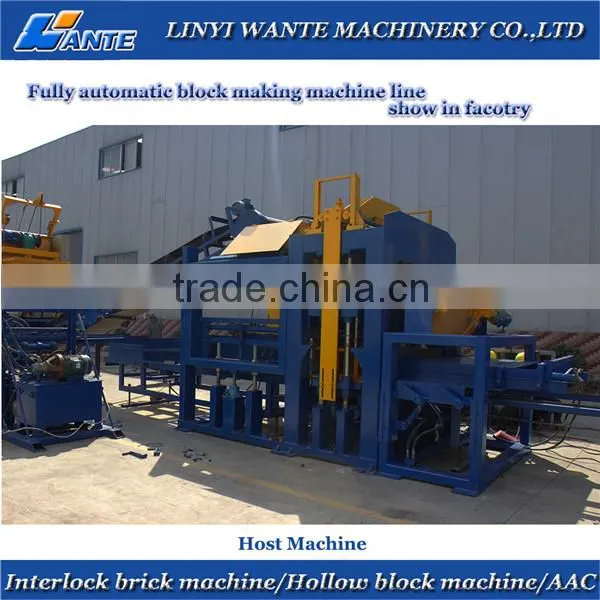

Whole line of QT4-15
Main specification and technical parameters | |
Overall size | 3500x2100x2550mm |
Shaping cycle | 15-18 seconds |
Pallet size | 1010x550x25mm (bamboo) |
1010x550x25mm (plastic) | |
Vibration frequency | Max.4500 R/Min |
Electricity | 380V/220V/ (adjustable) |
Vibration force | 55KN |
Total weight | 5000 KGS |

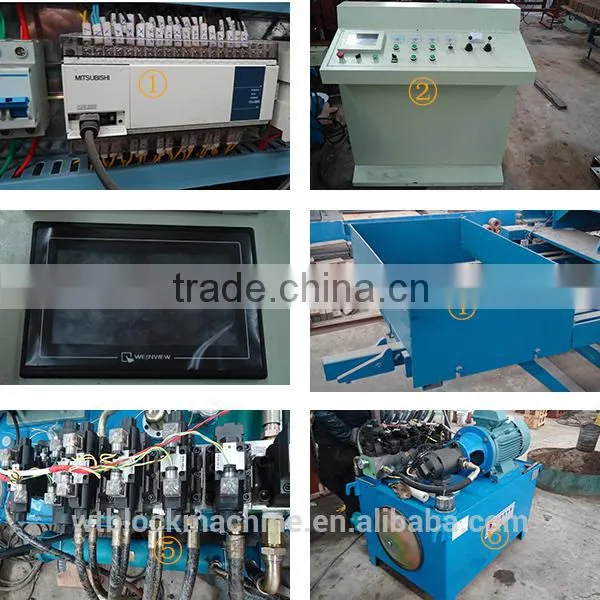

Detals pictures of QT4-15 block machine production line host machine
1>Inside of PLC
2>PLC
3>Monitor
4>Pallet feeder
5>Hydraulic pump
6>Hydraulic station

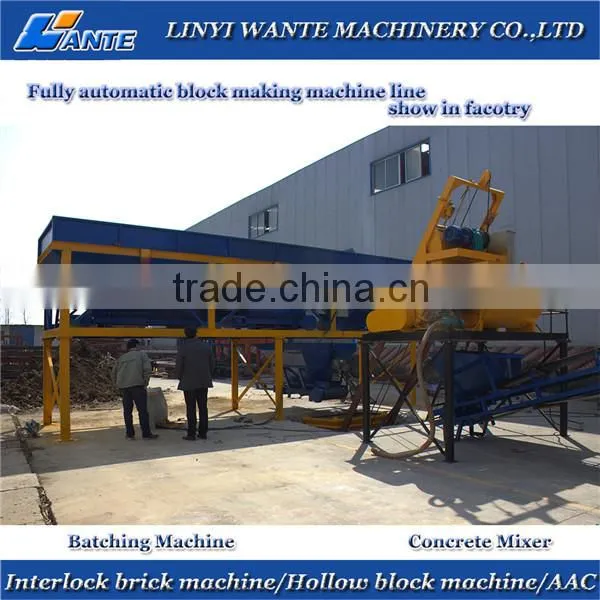

Parameters of Batching machine---PLD800
Model | PLD800 |
Weigh bucket capacity (L) | 800 |
Productivity m3/h) | 48 |
Batching precision | ±1foam concrete machine |
Max weighing capacity (kg) | 3000 |
Number of material matching | 2 |
Work loading height (mm) | 3000 |
Feeding belt speed (m/s) | 1 |
Power (kw) | 12 |
Gross weight (kg) | 3000 |
Demission (mm) | 5800*2200*3500 |
Parameters of Mixer---JS500
Model | JS500 | |
Charging Capacity (L) | 800 | |
Discharging Capacity (L) | 500 | |
Production Capacity (m3/h) | ≥25 | |
Max Aggregate Diameter mm | ≤40/60 | |
Cycle Time (s) | 72 | |
Stirring Vane | Rev Speed (r/min) | 31 |
Quantity | 2×7 | |
Stirring Motor | Model |
|
Power (KW) | 18.5 | |
Lifting Motor | Model |
|
Power (KW) | 5.5 | |
Pump Motor | Model |
|
Power (KW) | 0.75 | |
Dimensions ( mm) | Travel State | 3030×2520×2880 |
Operation State | 5025×3100×5680 | |
Total weight (Kg) | 3500 | |
Main specification and technical parameters | |
Overall size | 2100(L)×1200(W)×600(H)mm |
KW | 0.75 |
Electricity | 380V/220V/ (adjustable) |
Total weight | 230KGS |

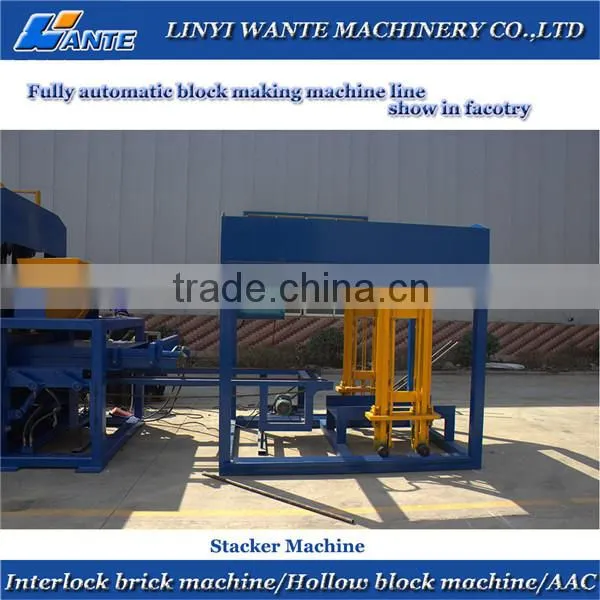

Main specification and technical parameters | |
Overall size | 2100(L)×1800(W)×2300(H)mm |
Power (KW) | 3KW |
Electricity | 380V/220V/ (adjustable) |
Stacker layer | 3 floor |
Speed | 0.5M/S |
Total weight | 2000KGS |
Pallets of QT4-15

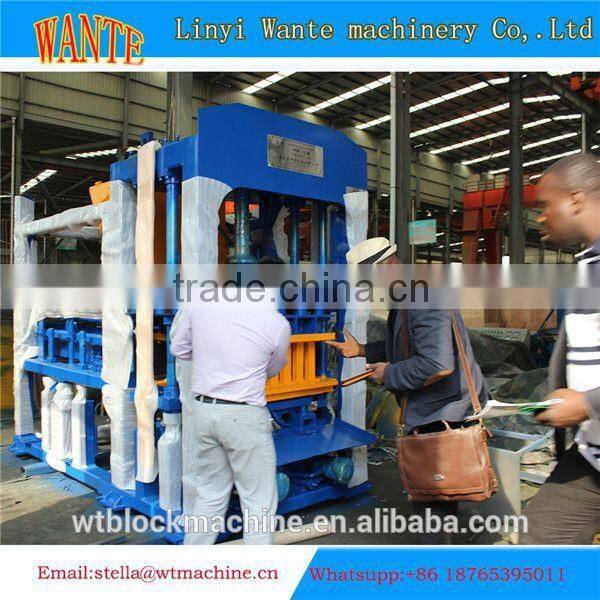

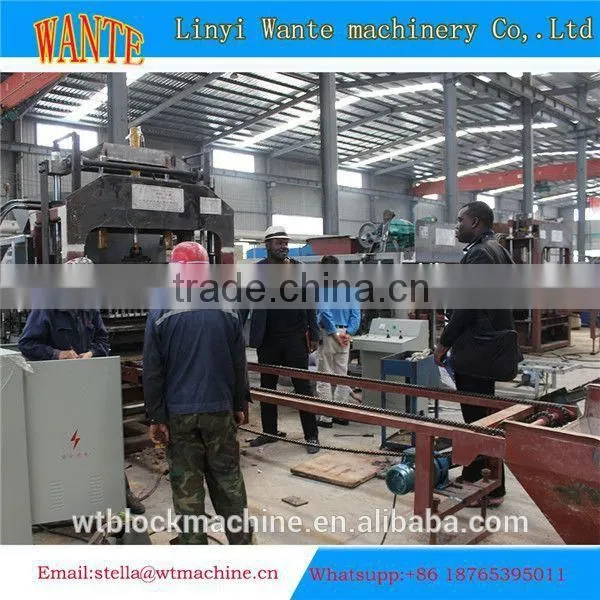

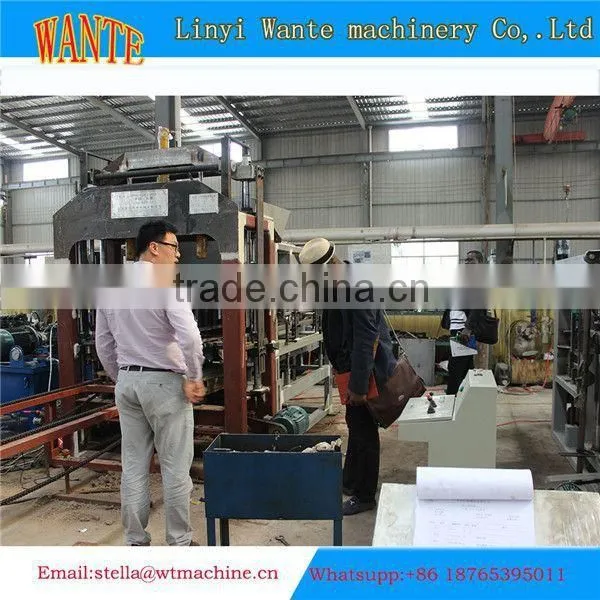

Customers showing

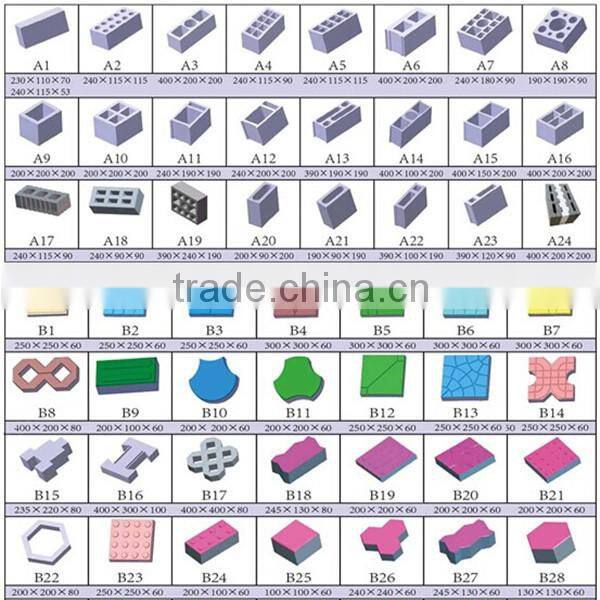

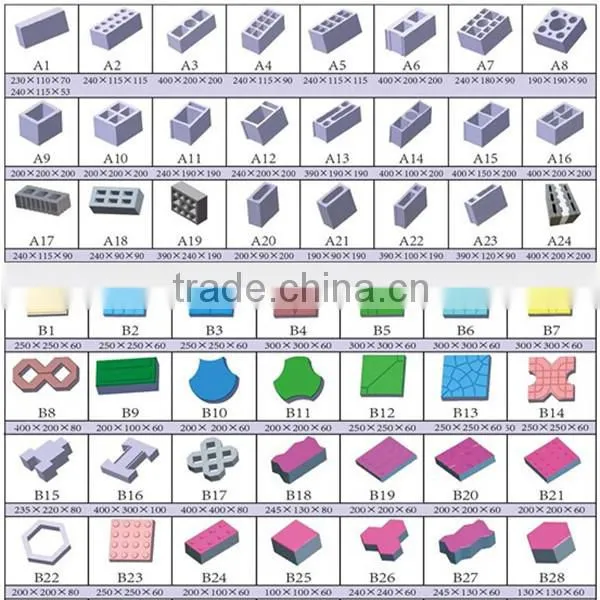

Materials and blocks
Capacity
