QT10-15 ultimate building machine to making bricks
1. Brief introduction of QT10-15 ultimate building machine to making bricks
1). QT10-15 ultimate building machine to making bricks. Particular storage and discription material system insure the feeding accuracy and avoiding the effect of exterior material.So the products have high density.
2). QT10-15 ultimate building machine to making bricks. Adopting synchronization vibration insures the products making average.The frequency can change according to different technics.Low frequency in feeding material,high frequency vibration makes the different material to have a optimal vibration way.
3). QT10-15 ultimate building machine to making bricks. The computer is of fault diagnosis system.Warning signal is propitious to eliminate the fault.Combine with long-distance controlling system,it can achieve scrutiny,controlling,diagnosis.
4). QT10-15 ultimate building machine to making bricks. PLC intelligent control. Man-machine interface,control system equipped with complete logic control, production program,malfunction diagnosis system and remote control function.So it doesn’t need a professional person but only need a simple trainning to the operator.
5). QT10-15 ultimate building machine to making bricks. Product scope:It produces various bricks/blocks including color-face bricks(layered material feeding),through-body tiles,lock linkage blocks,road curb bricks,hydraulic blocks,hollow blocks,perforated bricks,etc.
6). QT10-15 ultimate building machine to making bricks. It doesn’t need a professional person but only need a simple trainning to the operator.
2. Main technical parameters of QT10-15 ultimate building machine to making bricks
Dimension of host machine |
2900×2600×2900mm |
Host machine power |
40.1KW |
Moulding area |
1280×600mm |
Vibration force |
80KN |
Moulding period |
15-20S |
Capacity |
102.3KVA |
The size of the pallet |
1350×780×25/30mm |
mixer model |
JS750 |
Weight of the host machine |
13.5T |
General water Consumption |
10T/every day |
Voltage |
380V |
|
|
3. Production capacity of QT10-15 ultimate building machine to making bricks
Item |
Specification size |
Quantity per mold |
Cycle mouding |
Per hour |
Per day |
|
Hollow brick |
400*200*200 |
10pcs |
20-25s |
1440-1800pcs |
14400-18000pcs/day |
|
Porous brick |
240*115*90 |
28pcs |
15-20s |
5040-6720pcs |
50400-67200pcs/day |
Standard brick |
240*115*53 |
52pcs |
15-17s |
11011-12480pcs |
110110-124800pcs/day |

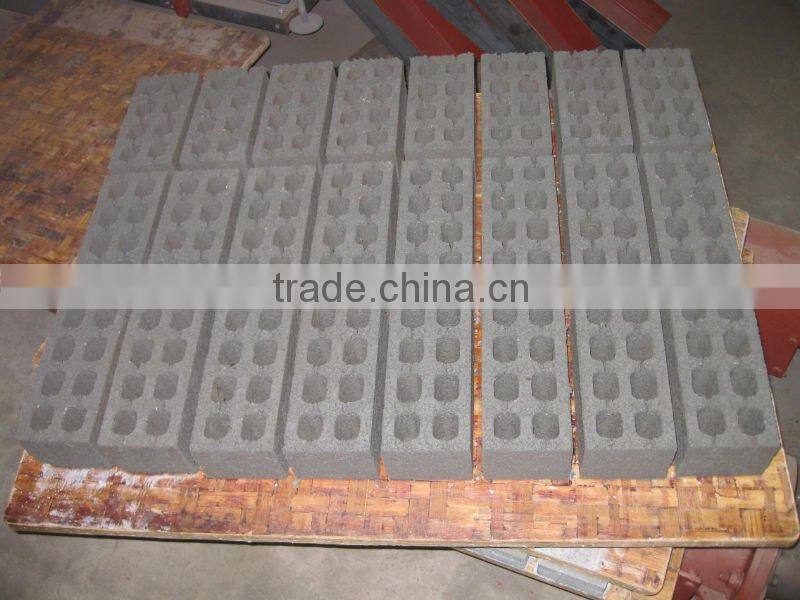

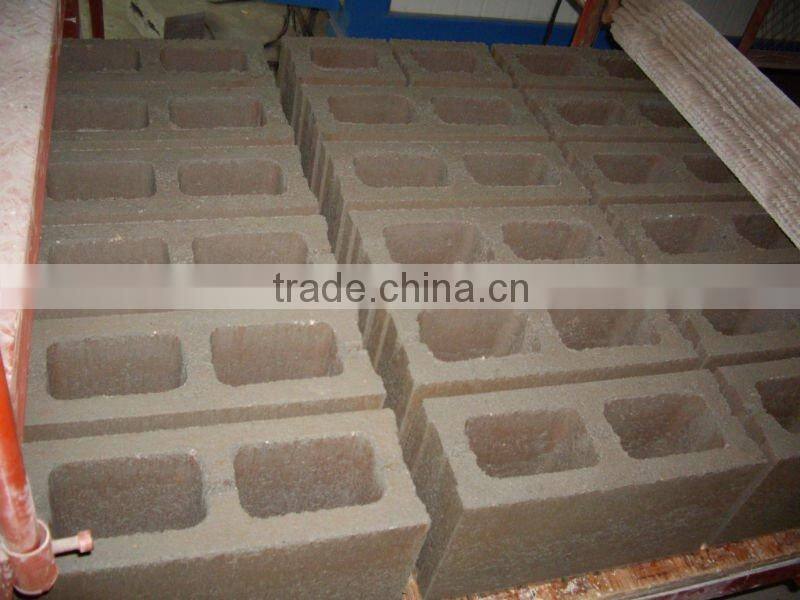

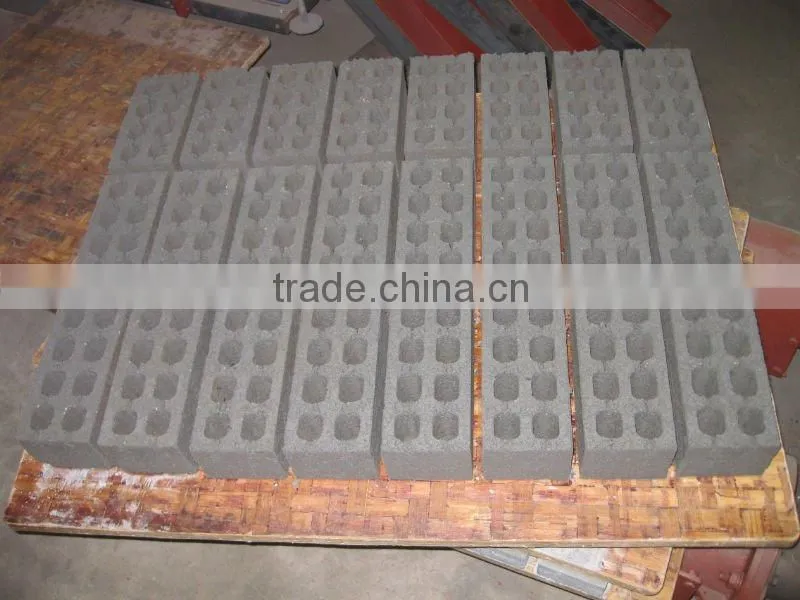

4. Block sample of QT10-15 ultimate building machine to making bricks

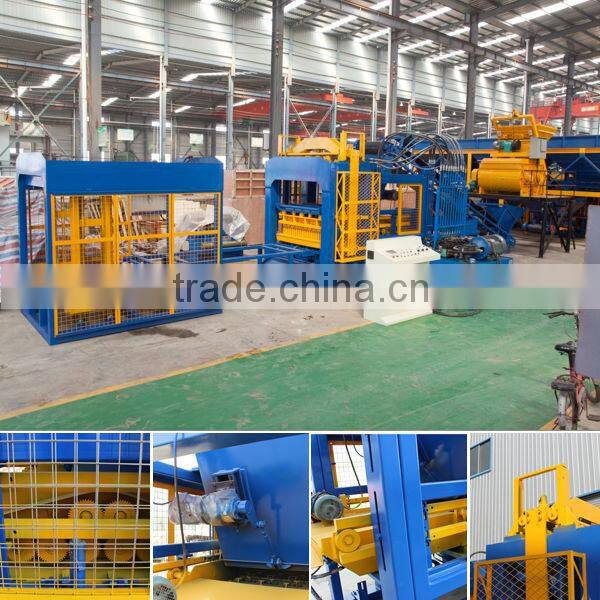

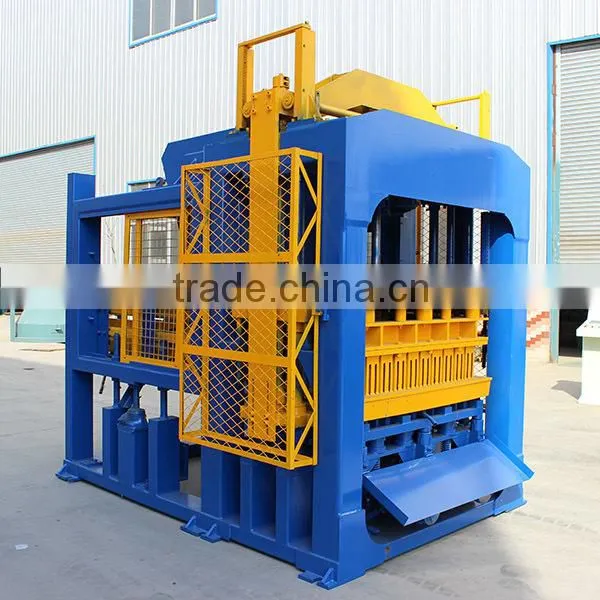

5.Picture of QT10-15 ultimate building machine to making bricks
6.Specification of QT10-15 ultimate building machine to making bricks
Main specification and technical parameters | |
Overall size |
3500×2220×2850mm |
Shaping cycle |
15-20 seconds |
Pallet size |
1300x900x30mm |
Vibration frequency |
Max.4000 R/Min |
Electricity |
380V/220V/ (adjustable) |
Vibration force |
120KN |
Total weight |
22000 KGS |
7.Capacity table of QT10-15 ultimate building machine to making bricks
No. |
Block size |
Pcs/mould |
Pcs/hour |
Pcs/day |
1 |
400x200x200mm |
10 |
2100 |
21000 |
2 |
240x115x90mm |
28 | 5000 |
50000 |
3 |
240x115x53mm |
54 |
9600 |
96000 |

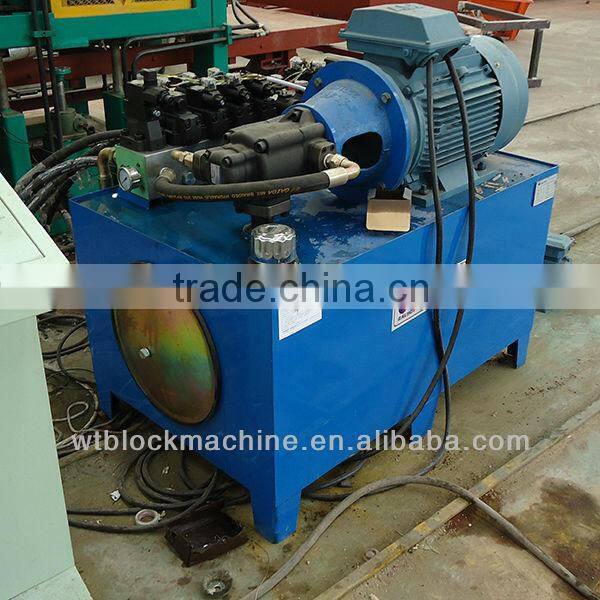

8.Hydraulic station
