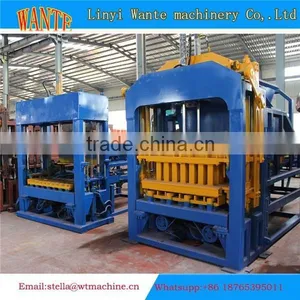

Help CenterQT5-15 Hydraulic Clay Brick Press Hydraulic Press Machine for Curb Stone
Related Products
-
QT5-15 Bulding Brick Mould Vibrating Table Concrete MachineUS$ 16,800 - 22,070MOQ: 1 Set -
2015 Hot Sale ! QT4-15 Used Block Making Machine Germany Mould for Concrete MachineUS$ 18,350 - 23,655MOQ: 1 Set
-
QT4-15 Cement Block Making Machine/mini Maquina de BloquesUS$ 18,360 - 22,240MOQ: 1 Set
-
QT4-15 Japan Used Concrete Block Machine/road Construction MachineryUS$ 18,240 - 22,120MOQ: 1 Set
-
2015 Hot Sale ! QT4-15 Machine de Fabrication de Parpaing Mould for Concrete Block Making Machine for SalesUS$ 18,375 - 23,755MOQ: 1 Set

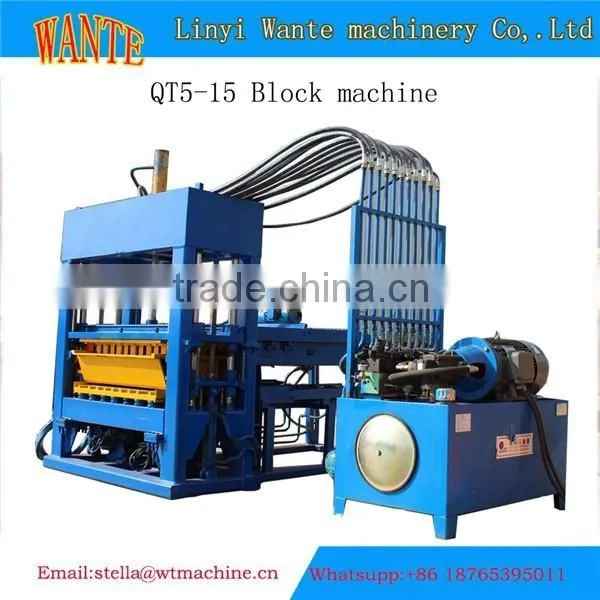

Main advantages of QT5-15
1>As a whole production line, the oprtaion is very simple
2>Control machines by PLC, save many labor
3> Precise height positioning, guarntee the same height of each brick

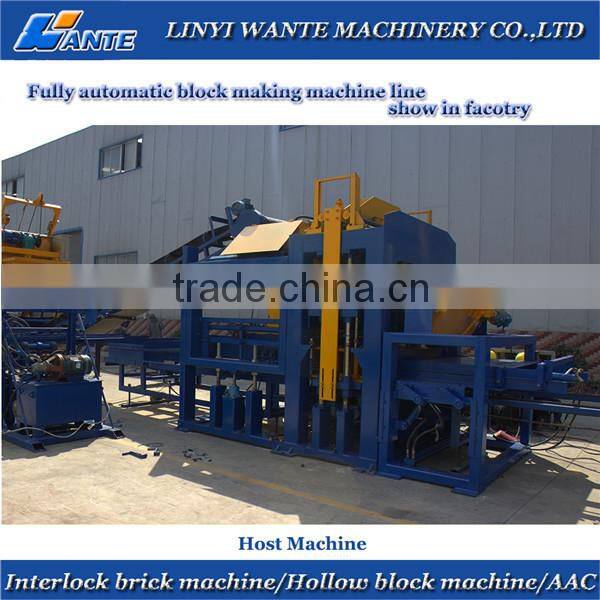

Whole line of QT5-15
Main specification and technical parameters | |
Overall size | 3500x2100x2550mm |
Shaping cycle | 15-18 seconds |
Pallet size | 1010x550x25mm (bamboo) |
1010x550x25mm (plastic) | |
Vibration frequency | Max.4500 R/Min |
Electricity | 380V/220V/ (adjustable) |
Vibration force | 55KN |
Total weight | 5000 KGS |

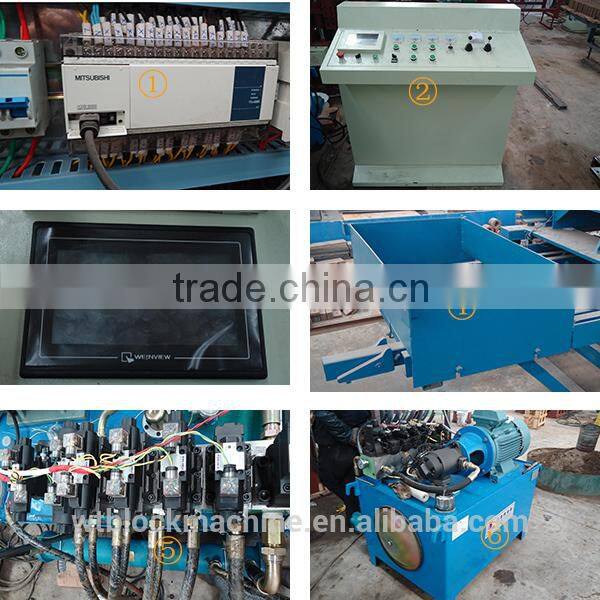

Detals pictures of QT4-15 block machine production line host machine
1>Inside of PLC
2>PLC
3>Monitor
4>Pallet feeder
5>Hydraulic pump
6>Hydraulic station
Parameters of Batching machine---PLD800
Model | PLD800 |
Weigh bucket capacity (L) | 800 |
Productivity m3/h) | 48 |
Batching precision | ±1small hollow block production line |
Max weighing capacity (kg) | 3000 |
Number of material matching | 2 |
Work loading height (mm) | 3000 |
Feeding belt speed (m/s) | 1 |
Power (kw) | 12 |
Gross weight (kg) | 3000 |
Demission (mm) | 5800*2200*3500 |
Parameters of Mixer---JS500
Model | JS500 | |
Charging Capacity (L) | 800 | |
Discharging Capacity (L) | 500 | |
Production Capacity (m3/h) | ≥25 | |
Max Aggregate Diameter mm | ≤40/60 | |
Cycle Time (s) | 72 | |
Stirring Vane | Rev Speed (r/min) | 31 |
Quantity | 2×7 | |
Stirring Motor | Model |
|
Power (KW) | 18.5 | |
Lifting Motor | Model |
|
Power (KW) | 5.5 | |
Pump Motor | Model |
|
Power (KW) | 0.75 | |
Dimensions ( mm) | Travel State | 3030×2520×2880 |
Operation State | 5025×3100×5680 | |
Total weight (Kg) | 3500 | |
Main specification and technical parameters | |
Overall size | 2100(L)×1200(W)×600(H)mm |
KW | 0.75 |
Electricity | 380V/220V/ (adjustable) |
Total weight | 230KGS |
Main specification and technical parameters | |
Overall size | 2100(L)×1800(W)×2300(H)mm |
Power (KW) | 3KW |
Electricity | 380V/220V/ (adjustable) |
Stacker layer | 3 floor |
Speed | 0.5M/S |
Total weight | 2000KGS |
Pallets of QT4-15

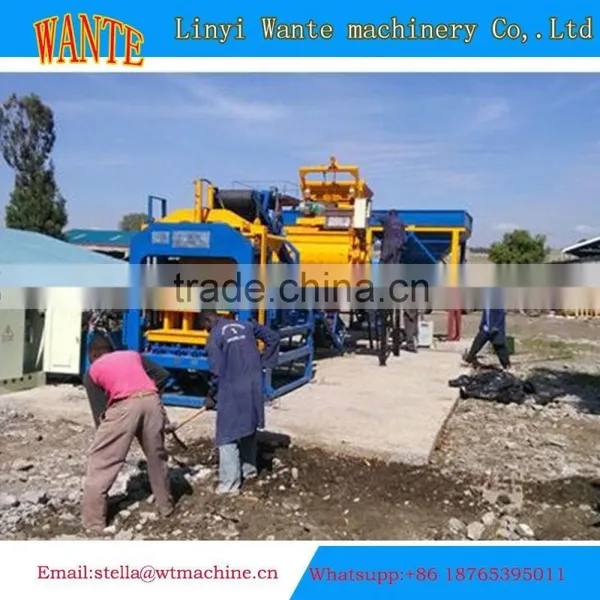

Customers showing
1. History
Linyi WANTE machinery Co.,Ltd has more than 18 years' exprience of manufacturing burn-free block machine.We are always the leading company in the field of block macihines industry. for now,
we have achieved essential ceticifications domestic and overseas,such like ISO9001,CE.
2.Profession
Our products are Automatic Burn-free brick making machine, aerated concrete block production line, aerated concrete wall panel production line.Our company posses more than 2000 employees,and one third of them are professional engineers.
3.International cooperation
Following are block machines which our company can offer:
