Simple introduction of QT5-15
Main Features:
QT5-15 semi-automatic is the clasic one of our machine,which has about 10 years history.
It is simple,strong and easy to operate.
This kind of machine has the following advantages:
A. Multifuctions:The machine can be used to make different products with different moulds,
like hollow blocks,solid bricks,pavers,Kurbstones and so on.
B. Power-saving:when the machine is working,only the main machine is always be on,other
parts only works at regular intervals.
C. Quick speed:The under and upper-part of mould inserts and pulls out quickly with
high-powered hydraulic pump.Meanwhile,all the processes like concrete feeding and mixing and
pallet feeding are finished at the same time.
D. Easy operation:The main machine is operated by one person,and other processes will be
completed automatically by electronics.Because pressure of viberating is high, concrete needs
less water.So the machine still can work under low temperature.
E. High quality of mould:Mould is an important part of machine.The steel is standard materials
for making moulds.
We have many procedures like adding carbon and boron,back fire for three times, polishing,and
so on.And the geomitry of the moulds is standard.
Specification and Capacity of QT5-15
Main Technical Specifications | |
Standard | JC/T920-2003 |
Vibration Frenquency | 3500 cycles/minute |
Vibration Pressure | 70KN |
Production/mould | Hollow block (390x190x190mm) 5 Pics/mould |
Hollow block(245×115×90mm) 16Pics/mould | |
Solid brick (240×115×53 mm)32 Pics/mould | |
Paver brick(200×100×60mm)18Pics/mould | |
Cycle Time | 16-25seconds |
Production/day(8hours) | Hollow Block(390×190×190 mm) 5800-6300 Pics |
Hollow Block (245×115×90mm) 18500-20000Pics | |
Solid Brick (240×115×53mm) 45000-57000Pics | |
Paver Brick (200×100×60mm) 21000-23000Pics | |
Motor Power | 24.7Kw |
Water Consumption | 4-8T |
Number of workers | 8-10worker |
Space of Ground | 3300m2 |
Gross Weight | 6T |
Machine Dimension | 3000×1900×2930mm |
Main materials | Cement,crushed stone dust,gravel,sand,coal fly ash,iron/ aluminium dust,crushed cinder and some industrial wastes |
Products of machine | Hollow blocks,Solid bricks,Pavers,Kurbstones,Slope blocks ,slabs, interlock bricks and so on. |
Our Advantages
1)Service | Guarantee for one year and after sale service for whole life. Tooffer free design,free technology support and free machine maintenancetrainning. |
2)Experence | We invest in this field for more than 20 years. |
3)Brand & Reputation | Famous brand in China and get good reputation, we are the biggest supplier in China. |
4)Export team | Our team members have export experence from 3-8 years. |

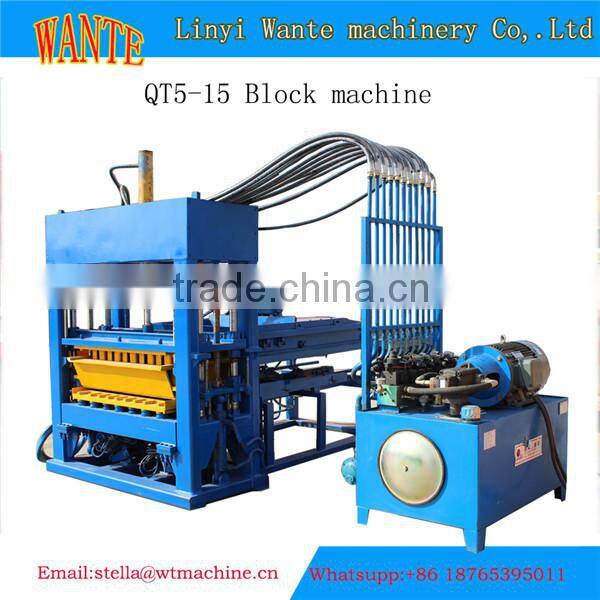

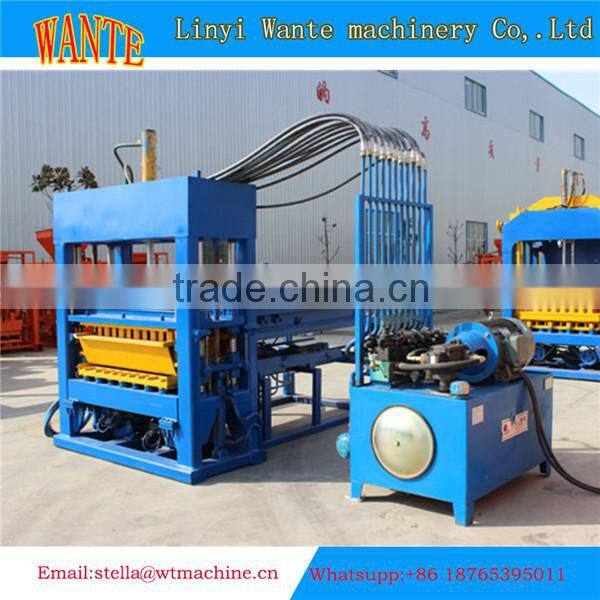

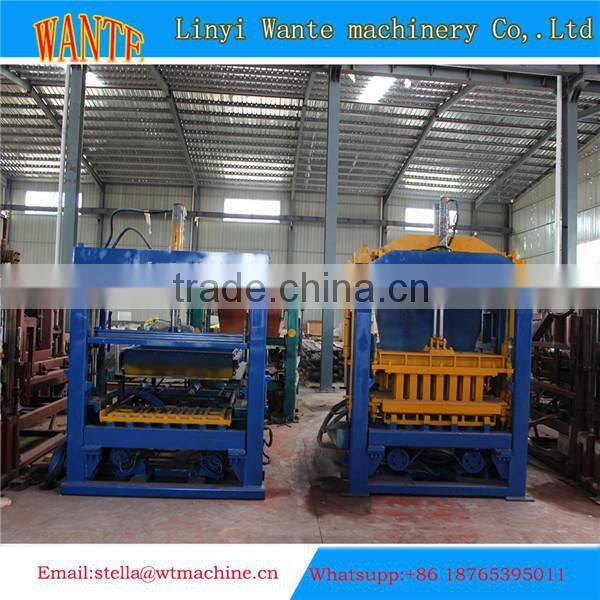

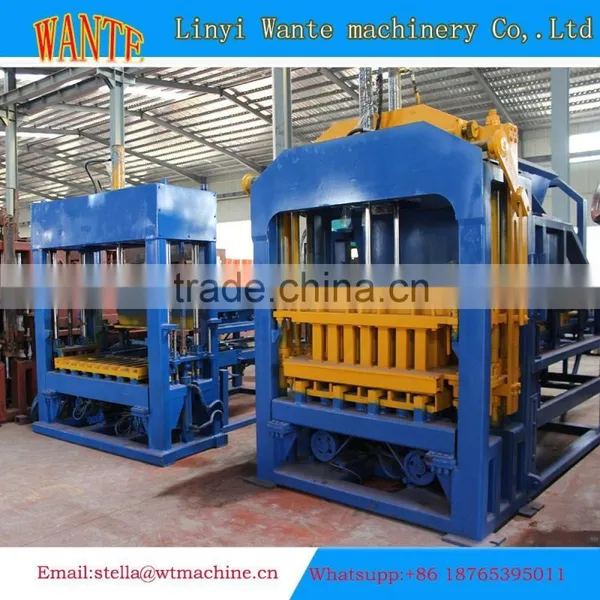

Real pictures of QT5-15

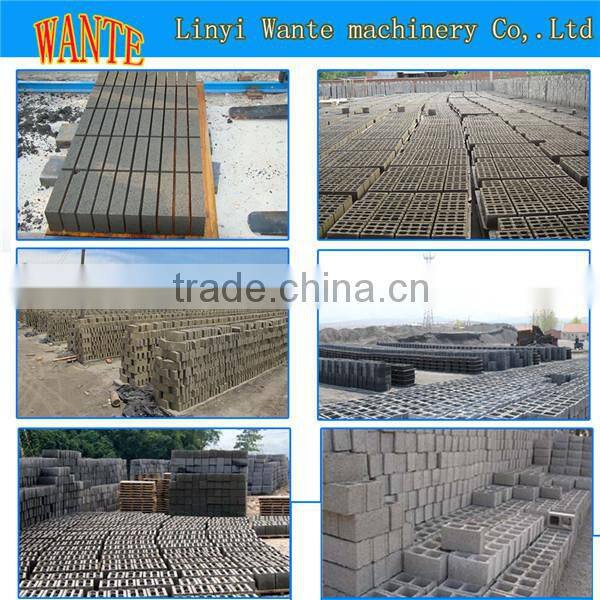

Blocks of QT5-15
QT5-15 can make paver, hollow and curbstone bricks.
Hollow concrete blocks:

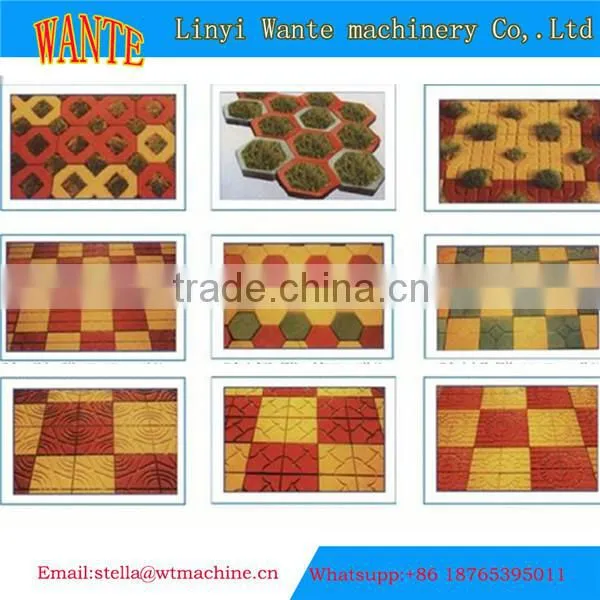

Coloful pavers:

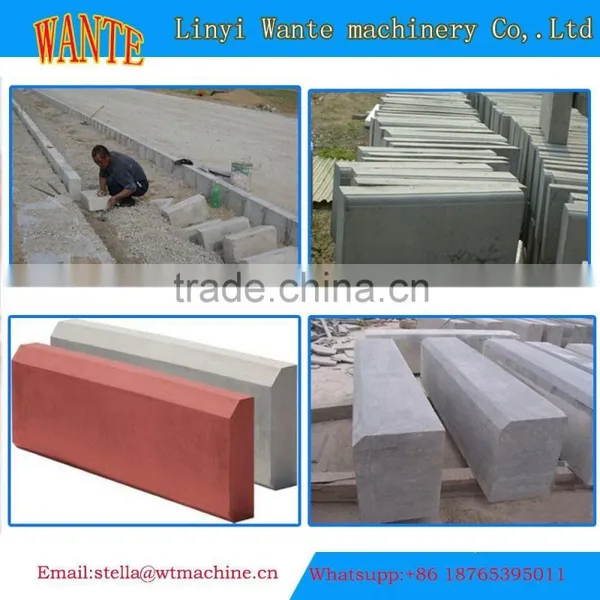

Curbstones:

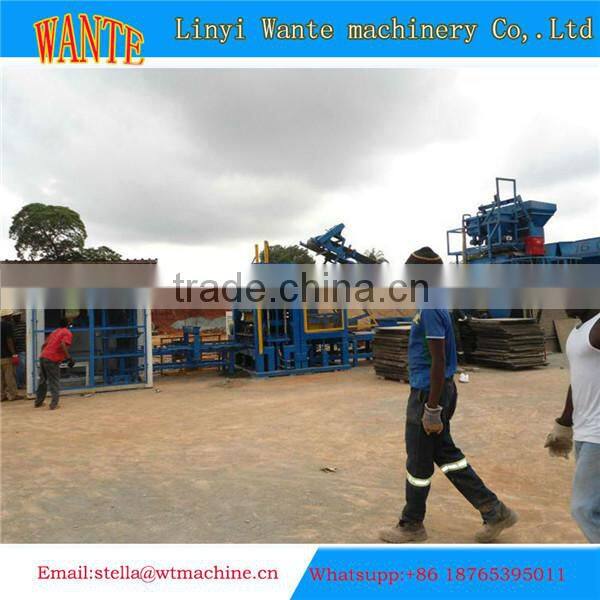

Our customers
