Help CenterSolar Charge Controller SCH10
Related Products
Key Features
1. Fully digitized microprocessor control,use SCM
2. provide longer battery life and improved system performance
3. Series PWM charge mode & State of Charge(SOC) battery regulation, OR ON/OFF series battery charging
4. 4 stages charging :Equaliaztion,PWM,Boost Float
5. External Temperature compensation sensor
6. Battery capacity set
7. LCD display for charging discharge state, charge current; Battery capacity rate ,voltage, Temp.; and DC load state,current; and solar panel voltage; clock and fault
8. Full circuit protection, electronic fuse
9.Overload and short circuit protection and resume when released
10.over discharge protection and resume
11.Over charge protection
12.Reverse polarity protection for solar panel ,battery and DC load.
13.Reverse current at night
14.lighting protection
15.12V or 24VDC Auto work
16.automatic or Manual load reconnection
17.adjustable parameters by user
18.Optional load control functions: Time Control, light Control and Timer set, Time display use for solar street light

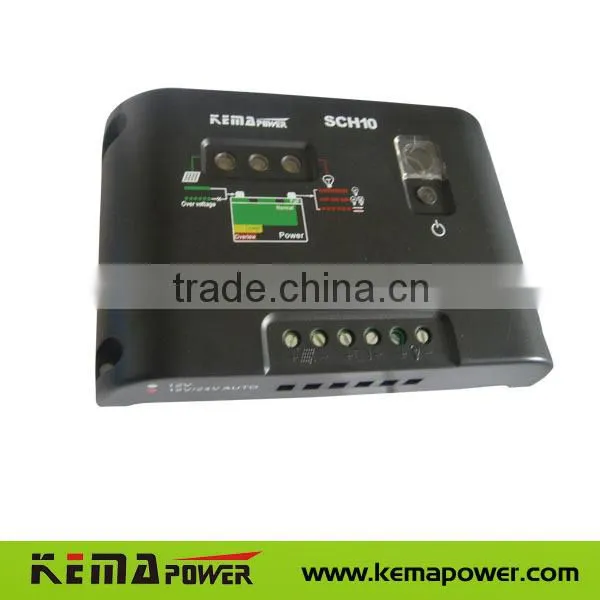

Solar Charge Controller SCH10 TECHNOLOGY SPECS
| Fully digitized microprocessorcontrol ,useSCM | |||
| Provide longerbattery lifeand improved system performance | |||
| Series PWMchargemode&State of Charge(SOC) battery regulation | |||
| 4stagescharging :Equalization,PWM,Boost Float | |||
| External temperaturecompensation sensor | |||
| LED displayfor charging, Battery andDC loadrunning stateand fault | |||
| Full circuit protection, | |||
| Overloadand shortcircuit protection and resume when released | |||
| Over dischargeprotection and resume | |||
| Over chargeprotection | |||
| Reverse polarity protection forsolarpanel ,battery andDC load. | |||
| Reverse currentat night | |||
| Lighting protection | |||
| 12V or 24VDC automatic work | |||
| Optional loadcontrolfunctions:TimeControl, | |||
| Light Controland Timer set usefor solarstreet light | |||
| SCH10,SCH10-ST twoshape optional |
| ITEM | MODEL | SCH10-5ST SCH10-5/ | SCH10-ST SCH10/ |
| Ratedchargecurrent | 5A | 10A | |
| Rated loadcurrent | 5A | 10A | |
| System voltage | 12/24V AUTO work | ||
| Protection | Over load | 125% for60sec.150% for5sec.for load and solar panel | |
| Shortcircuit | Over 300%, shut offat noce.for load and solar panel | ||
| Over voltage | 17V / 2*17V,for load | ||
| Low voltage | 10.5VDC/21VDC | ||
| Reverse polarity | protection forsolar panel ,battery andDCload. | ||
| Reverse current | yes.at night | ||
| Lighting protection | yes | ||
| Staticcurrent | ≤ 6mA | ||
| Voltagedrop | Chargingloop | ≤ 0.26V | |
| Dischargeloop | ≤ 0.15V | ||
| Charging | Boostcharging | 14.6V,29.2V for 30Mins.Only forBattery wasoverdischarged. | |
| voltage | Equalizing charging | 14.4V,2*14.4V for30mins | |
| Floatcharge | 13.6V, 2*13.6V | ||
| Charging recovery | 13.2V,2*13.2V | ||
| Temperaturecompensation | -5mv2V | ||
| Battery low | 12.0V, 2*12V | ||
| Loaddisconnect voltage | 11.1V- 2*11.1V | ||
| 13.1V,2*13.1V | |||
| Over dischargeforced recovery | 12.5V,25.0V, ( recovery by switch ) | ||
| Chargingcontrolmode | Series PWMcharge mode &State of Charge(SOC),Automatic compensation | ||
| Running temperature | Industrygrade :-35 to +55;Commercial Grade: -5 to +50 | ||
| Tropicalization | PCB was spraycover.Terminals corrosion protected | ||
| Protection class | IP22 | ||
| Case material | ABS | ||
| LED display | Charging, Battery and DC load running state and fault | ||
| Terminalsize | Max6 Sqmm wires | ||
| Optionalfunctions | Time+light Control(RC),Timer set(RC-M),usefor solar street light | ||
| Productsize(mm) | 133*19.9*26.9 | 133*19.9*26.9 | |
| Carton size(mm) | 510*310*210mm/50PCS | 510*310*210mm/50PCS | |
| Carton weight(kg) | 11 | 11 | |
