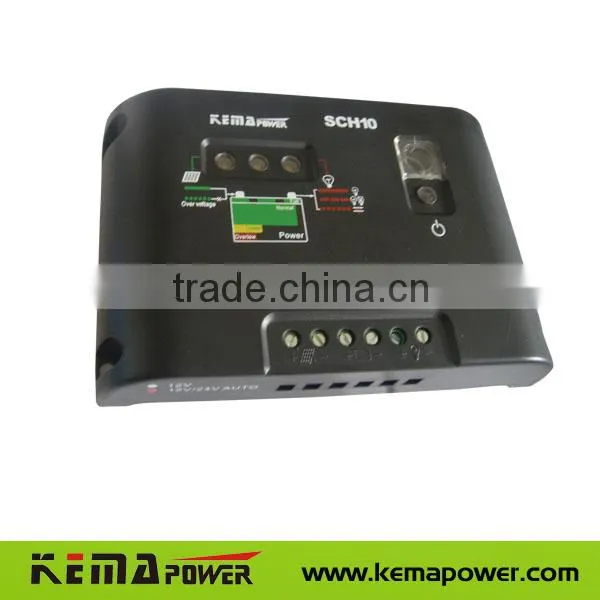

PWM Solar Charge Controller

Name: PWM Solar Charge Controller
Brand: KemaPower
SKU: 112010681
Availability: InStock

US$ 10 - 20 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KemaPower

Model Number:

SCH10-ST

Foshan Kemapower Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou/Shenzhen/NingBo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KemaPower

Model Number SCH10-ST

PWM Solar Charger Controller

Specification

Fully digitized microprocessorcontrol ,useSCM
Provide longerbattery lifeand improved system performance
Series PWMchargemode&State of Charge(SOC) battery regulation
4stagescharging :Equalization,PWM,Boost Float
External temperaturecompensation sensor
LED displayfor charging, Battery andDC loadrunning stateand fault
Full circuit protection,
Overloadand shortcircuit protection and resume when released
Over dischargeprotection and resume
Over chargeprotection
Reverse polarity protection forsolarpanel ,battery andDC load.
Reverse currentat night
Lighting protection
12V or 24VDC automatic work
Optional loadcontrolfunctions:TimeControl,
Light Controland Timer set usefor solarstreet light
SCH10,SCH10-ST twoshape optional

ITEM	MODEL	SCH10-5ST SCH10-5/	SCH10-ST SCH10/
Ratedchargecurrent		5A	10A
Rated loadcurrent		5A	10A
System voltage		12/24V AUTO work
Protection	Over load	125% for60sec.150% for5sec.for load and solar panel
	Shortcircuit	Over 300%, shut offat noce.for load and solar panel
	Over voltage	17V / 2*17V,for load
	Low voltage	10.5VDC/21VDC
	Reverse polarity	protection forsolar panel ,battery andDCload.
	Reverse current	yes.at night
	Lighting protection	yes
Staticcurrent		≤ 6mA
Voltagedrop	Chargingloop	≤ 0.26V
	Dischargeloop	≤ 0.15V
Charging	Boostcharging	14.6V,29.2V for 30Mins.Only forBattery wasoverdischarged.
voltage	Equalizing charging	14.4V,2*14.4V for30mins
	Floatcharge	13.6V, 2*13.6V
	Charging recovery	13.2V,2*13.2V
	Temperaturecompensation	-5mv2V
	Battery low	12.0V, 2*12V
	Loaddisconnect voltage	11.1V- 2*11.1V
		13.1V,2*13.1V
	Over dischargeforced recovery	12.5V,25.0V, ( recovery by switch )
Chargingcontrolmode		Series PWMcharge mode &State of Charge(SOC),Automatic compensation
Running temperature		Industrygrade :-35 to +55;Commercial Grade: -5 to +50
Tropicalization		PCB was spraycover.Terminals corrosion protected
Protection class		IP22
Case material		ABS
LED display		Charging, Battery and DC load running state and fault
Terminalsize		Max6 Sqmm wires
Optionalfunctions		Time+light Control(RC),Timer set(RC-M),usefor solar street light
Productsize(mm)		13319.926.9	13319.926.9
Carton size(mm)		510310210mm/50PCS	510310210mm/50PCS
Carton weight(kg)		11	11
