Emergency Solar Power Trolley

Emergency Solar Power Trolley thumbnail-1
Emergency Solar Power Trolley thumbnail-2
Emergency Solar Power Trolley photo-1
Emergency Solar Power Trolley photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Kemapower
Model Number:
N-ST
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Kemapower
Model Number N-ST
Phase Single Phase
Protection Overvoltage
Output Voltage 220V
Type On-line
Application Other, Emergency backup power

Key words

Pure Sine wave solar power trolley
aaLow frequency Ring transformer,stable and lower
self-consume
aaCombined solar controller and battery together
aaWith 5V USB charger, 12VDC lamp output,
12VDC 8Amp For DC big load.
aaLED Display for solar panel, battery,
DC load and inverter running Status
Digital display for AC output voltage and battery voltage
Alarm for battery low ,overload ,short circuit and so on
With AC, DC output switch and battery input switch
With Extension Bat



Technical data



Model NST55-300LF(C) NST55-500LF(C) NST110-500LF(C) NST110-1000LF(C) NST220-500LF(C) NST220-1000LF(C) NST220-15001LF(C)
AC output Rated power(W) 300 500 500 1000 500 1000 1500
Voltage(VAC) 110V/120V, 220V/230V
Frequency(HZ) 50HZ/60HZ
Wave form Sine wave
AC output switch Yes
Battery Battery bank voltage 12VDC 24VDC 24VDC
Internal battery 1*GEL55AH-12VDC 2*GEL55AH-12VDC 4*GEL55AH-12VDC
Extension battery connector Advice 12VDC, 55AH MODE Advice 2 pcs GEL55-12 in series 4*GEL55AH-12VDC, 2 series 2 parallel
Recharge time Within 3 hours Within 3 hours Within 6 hours
Battery switch Yes, breaker Yes, breaker Yes, breaker
Grid charger(Option) AC charge range 110V or 220V+-25% 110V or 220V+-25% 110V or 220V+-27%
Charge current 12VDC 10AMP 24VDC 5AMP 24VDC 5AMP
Grid change switch Yes Yes Yes
Charge controller Max current 30A 30A 30A
Rated VDC 12VDC 24VDC 24VDC
Input range 10V to 25VDC 20V to 50VDC 20V to 50VDC
Equalizing Charge Voltage 14.3VDC 28.6VDC 28.6V
Float voltage 13.7VDC 27.4VDC 27.4VDC
Over charge protective voltage(VDC) 14.2VDC 28.4VDC 28.4VDC
Over charge recover voltage(VDC) 14VDC 28VDC 28VDC
Solar panel Adviced capacity 36 Cell max 500Wp 36 Cell in series or 72 Cell max 1000Wp 36 Cell in series or 72 Cell max 1000Wp
PV input terminal Yes Yes Yes
DC output High voltage protective voltage(VDC) 16VDC 32VDC 32VDC
High voltage recover voltage(VDC) 15.2VDC 30.4VDC 30.4VDC
Low voltage reover voltage(VDC) 12.6VDC 25.2VDC 25.2VDC
Low voltage protective voltage(VDC) 11VDC 22VDC 22VDC

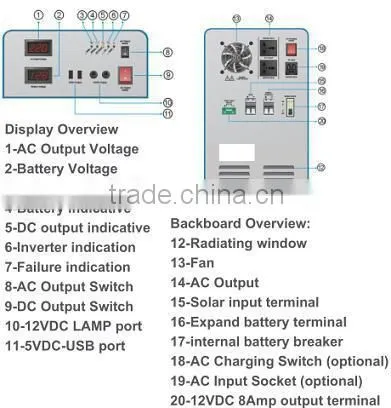

Display LED display Solar charge status/Bad normal, over high, over low, charge protection/ DC output, ON,OFF, overload, short circuit/ Inverter overoload, short circuit, fault
Digital display Battery VDC, Output VAC
Alarm Overload bat.low, alarm/1se; battery low or high protection, alarm/3sec, inverter short circuit or fault, continous
Fan start temperature >45℃
Operation environment temperature 0-40℃
Working temperature -25- +55℃
Humidity 0-90% non-condensing
Product Size:D*W*H(mm) 343*225*443 423*260*453 513*310*493
Packed Size:D*W*H(mm) 420*290*490 520*370*520 610*420*550
G.W.of the package with bat. 26.7 28.4 42.9 47.6 76.9 82.2 86.7
Remark Internal battery backup time The above is around value under full load, actual using should not always full load. So should be longer, Can extension battery again
Recharge time The above based on max PV and use the AC/DC power charger too. Actual using is different for solar panel capacity reason
Mode name NST55-300LF©, N-new, ST-Solar trolley, 300W, 55-55AH/12VDC, C, with AC/DC Grid charger



Technical specification

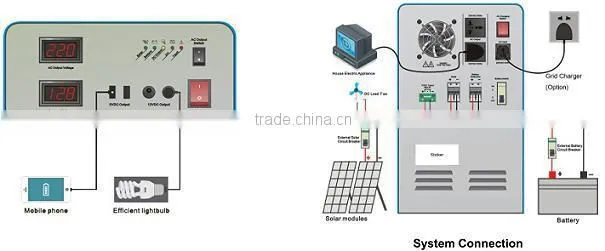

Emergency Solar power trolleyEmergency Solar power trolley
