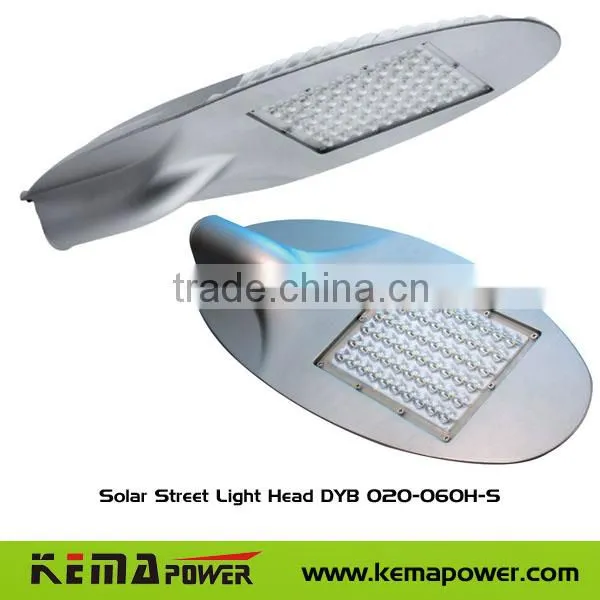

Help CenterDYB 020-060H-S Solar Street Light
Related Products
Solar street light
Key features
1. High luminance and good stability
2. Easy installation and rare replacement
3. Uniformly distributed light and color.
4. Great illuminating angle: 120° or above
5. Accurate constant-current driving with current fluctuation less than 1mA.
6. Strict temp control: Temp up at work is below 20 degree. Overheat protection will automatically starts if the operating temp is more than 70 degree.
7. Special circuit protection: The protection can prevent whole circuit from current overflow or unbalanced caused by single failed LED, saving the whole lamp.
8. Integrative design of efficient heat radiation.
9. Unique light distribution system is-with more uniform brightness.
10. Patent shape design from international well known industry design institute.
Technical Specifications
| Model | DYB020H | DYB030H | DYB040H |
DYB050H | DYB060H |
| Power(W) | 20W | 30W | 40W | 50W | 60W |
| LED Amount | 20PCS | 30PCS | 40PCS | 50PCS | 60PCS |
| Input voltage | 12V/24VDC 110V/220VAC | ||||
| Frequency | 50/60HZ | ||||
| Power factor | 0.96-0.99 | ||||
| Power Efficiency | 88%-91% | ||||
| Harmonic distortion | <15 | ||||
| Luminous Flux | 2200lm | 3300lm | 4400lm | 5500lm | 6600lm |
| LED color temp | White(warm/neutral/cool),Select before order. | ||||
| Working Temp. Rise | <15° | <20° | <25° | <25° | <25° |
| Ambient temp | -30 to 40°C | ||||
| Centric illuminance | 4M≥22Lux 6M≥12Lux |
4M≥32Lux 6M≥16Lux | 6M≥28Lux 8M≥18Lux | 7M≥28Lux 8M≥20Lux | 6M≥40Lux 8M≥22Lux |
| Illuminate Range | 15M 20M | 15M 20M | 20M 28M | 26M 32M | 22M 33M |
| Pole Height | 3-6M | 3-7M | 4-7M | 5-8M | 6-10M |
| Service life | >50000Hours | ||||
| Casing material | Aluminum alloy die casting | ||||
| Moisture allowed | ≤95% | ||||
| Protection grade | IP65 | ||||
| Product Size(mm) | 606*250*128 | 606*250*128 | 606*250*128 | 606*250*128 | 606*250*128 |
| Package(mm) | 645*275*280/2pcs | 645*275*280/2pcs | 645*275*280/2pcs | 645*275*280/2pcs | 645*275*280/2pcs |
| N.W.(kg) | 3.2kg | 3.2kg | 3.2kg | 3.2kg | 3.2kg |
| G.W.(kg) | 3.6kg | 3.6kg | 3.6kg | 3.6kg | 3.6kg |
| Remark | 1.LED: High Power LED,1W/PCS,Chip Brand: EPISTAR, 110LM/W 2.For the LED Street light, still need Pole, PV Panel , PV mounting,Solar Charge Controller, Solar Battery and Battery Box. pls inquire while need. | ||||
