Home > Lights & Lighting > Outdoor Lighting > Street Light > DYD 090-180H-S LED Solar Street Light

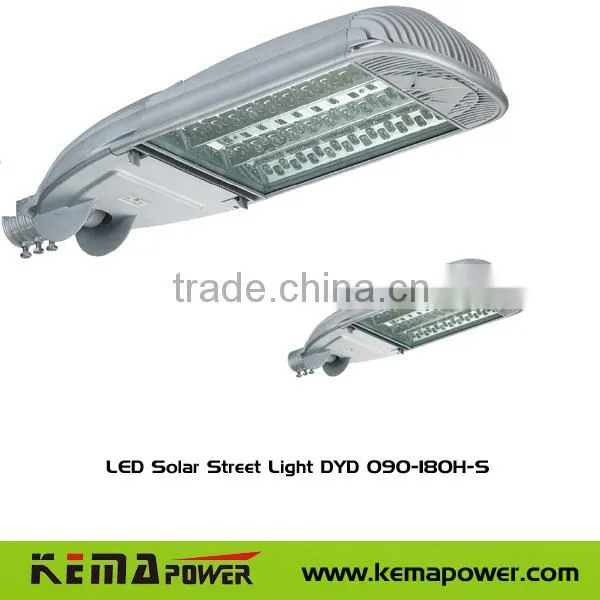

DYD 090-180H-S LED Solar Street Light

Name: DYD 090-180H-S LED Solar Street Light
Brand: KEMAPOWER
SKU: 112010381
Availability: InStock

DYD 090-180H-S LED Solar Street Light thumbnail-1

DYD 090-180H-S LED Solar Street Light photo-1

Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

KEMAPOWER

Model Number:

LED Solar Street Light DYD 090-180H-S

Contact Supplier Request Quote Chat Now

Foshan Kemapower Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name KEMAPOWER

Model Number LED Solar Street Light DYD 090-180H-S

Power Supply Solar

Application Square

Lampshade Material Other

LED Solar Street Light

Key features

1. High luminance and good stability

2. Easy installation and rare replacement

3. Uniformly distributed light and color.

4. Great illuminating angle: 120° or above

5. Accurate constant-current driving with current fluctuation less than 1mA.

6. Strict temp control: Temp up at work is below 20 degree. Overheat protection will automatically starts if the operating temp is more than 70 degree.

7. Special circuit protection: The protection can prevent whole circuit from current overflow or unbalanced caused by single failed LED, saving the whole lamp.

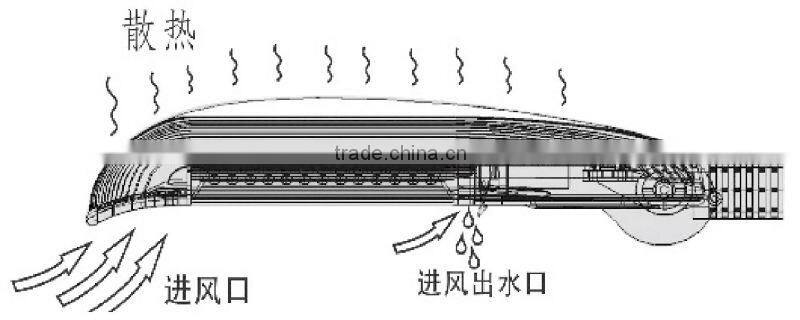

8. Integrative design of efficient heat radiation.

9. Unique light distribution system is-with more uniform brightness.

10. Patent shape design from international well known industry design institute.

Technical Specifications

Model	DYD090H	DYD120H	DYD150H	DYD180H
Power(W)	90W	120W	150W	180W
LED Amount	90PCS	120PCS	150PCS	180PCS
Input voltage	12V/24VDC 110V/220VAC
Frequency	50/60HZ
Power factor	0.96-0.99
Power Efficiency	88%-91%
Harmonic distortion	<15
Luminous Flux	9900lm	13200lm	16500lm	19800lm
LED color temp	White(warm/neutral/cool),Select before order.
Working Temp. Rise	<20°	<25°	<25°	<25°
Ambient temp	-30 to 40°C
Centric illuminance	10M≥20Lux	10M≥25Lux	10M≥30Lux	10M≥33Lux
Illuminate Range	35M	35M	35M	35M
Pole Height	8-12M	8-12M	8-12M	8-12M
Service life	>50000Hours
Casing material	Aluminum alloy die casting
Moisture allowed	≤95%
Protection grade	IP65

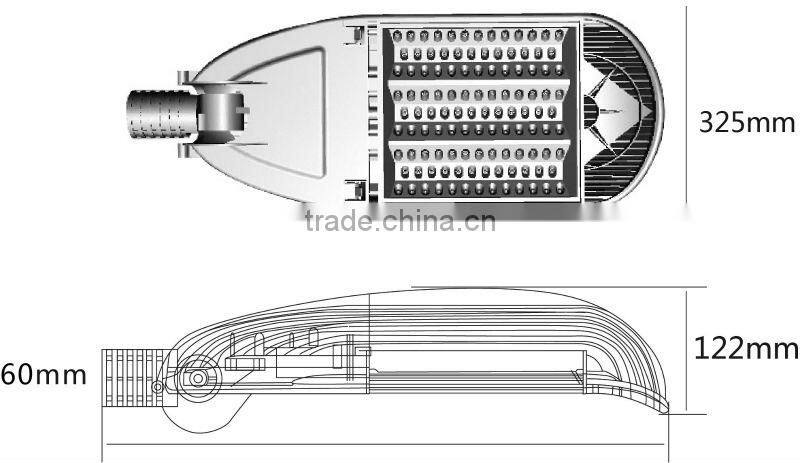

Product Size(mm)	780325205	780325205	830325205	900325205
Package(mm)	930370250	930370250	960370250	990370250
N.W.(kg)	16.3kg	16.3kg	17.2kg	18.2kg
G.W.(kg)	17kg	17kg	18kg	19kg
Remark	1.LED: High Power LED,1W/PCS,Chip Brand: EPISTAR, 110LM/W 2.For the LED Street light, still need Pole, PV Panel , PV mounting,Solar Charge Controller, Solar Battery and Battery Box. pls inquire while need.
