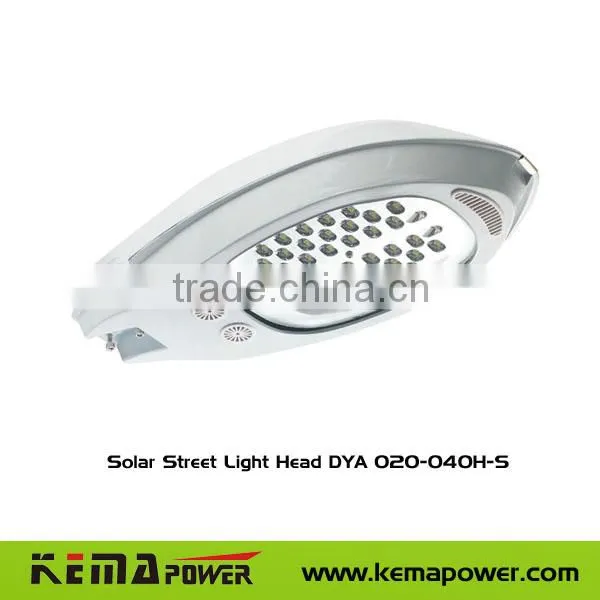

DYA 020-040H-S Led street light
- 1000 Set / Sets per Month
- Shenzhen/Guangzhou
- T/T Credit Card
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 24 In 1 Led Outdoor Lighting Street Light Lens
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 12 In 1 Led Outdoor Lighting Street Light Lens
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 16 In 1 Led Outdoor Lighting Street Light Lens
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 12 In 1 Led Outdoor Lighting Street Light Lens
- IP65 Waterproof 100W 150W 200W Split Solar Outdoor Street Light
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 8 In 1 Led Outdoor Lighting Street Light Lens
Product Details
Place of Origin: | Guangdong, China | Brand Name: | KEMAPOWER | Model Number: | Solar Street Light Head DYA 020-040H-S |
Power Supply: | Solar | Application: | Square | Lampshade Material: | Other |
Product Description
Led street light
Key features
1. High luminance and good stability
2. Easy installation and rare replacement
3. Uniformly distributed light and color.
4. Great illuminating angle: 120° or above
5. Accurate constant-current driving with current fluctuation less than 1mA.
6. Strict temp control: Temp up at work is below 20 degree. Overheat protection will automatically starts if the operating temp is more than 70 degree.
7. Special circuit protection: The protection can prevent whole circuit from current overflow or unbalanced caused by single failed LED, saving the whole lamp.
8. Integrative design of efficient heat radiation.
9. Unique light distribution system is-with more uniform brightness.
10. Patent shape design from international well known industry design institute.
Technical Specifications
Model | DYA020H | DYA025H | DYA030H | DYA040H |
Power(W) | 20W | 25W | 30W | 40W |
LED Amount | 20PCS | 24PCS | 30PCS | 40PCS |
Input voltage | 12V/24VDC 110V/220VAC | |||
Frequency | 50/60HZ | |||
Power factor | 0.96-0.99 | |||
Power Efficiency | 88%-91% | |||
Harmonic distortion | <15 | |||
Luminous Flux | 2200lm | 2640lm | 3300lm | 4400lm |
LED color temp | White(warm/neutral/cool),Select before order. | |||
Working Temp. Rise | <15° | <15° | <20° | <20° |
Ambient temp | -30 to 40°C | |||
Centric illuminance | 6M≥10Lux 8M≥6Lux | 6M≥24Lux 8M≥13Lux | 4M≥30Lux 6M≥15Lux | 8M≥28Lux 8M≥18Lux |
Illuminate Range | 22M 24M | 20M 25M | 14M 20M | 20M 28M |
Pole Height | 6-10M | 3-7M | 3-7M | 4-7M |
Service life | >50000Hours | |||
Casing material | Aluminum alloy die casting | |||
Moisture allowed | ≤95% | |||
Protection grade | IP65 | |||
Product Size(mm) | 530*260*140 | 530*260*140 | 530*260*140 | 530*260*140 |
Package(mm) | 585*275*190 | 585*275*190 | 585*275*190 | 585*275*190 |
N.W.(kg) | 3.8kg | 3.8kg | 3.8kg | 3.8kg |
G.W.(kg) | 4.5kg | 4.5kg | 4.5kg | 4.5kg |
Remark | 1.LED: High Power LED,1W/PCS,Chip Brand: EPISTAR, 110LM/W 2.For the LED Street light, still need Pole, PV Panel , PV mounting,Solar Charge Controller, Solar Battery and Battery Box. pls inquire while need. |
