Home > Electrical & Electronics > Inverter > Power Inverter > G-PSW4K-6K Solar Inverter

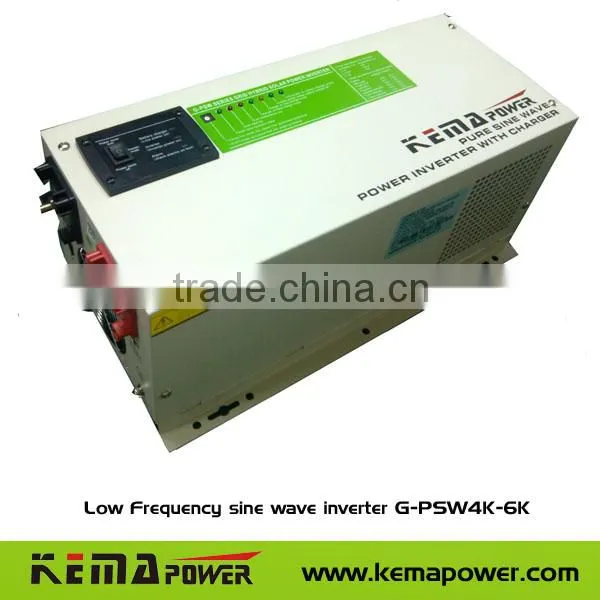

G-PSW4K-6K Solar Inverter

G-PSW4K-6K Solar Inverter thumbnail-1
G-PSW4K-6K Solar Inverter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KEMAPOWER
Model Number:
G-PSW4K-6K
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KEMAPOWER
Model Number G-PSW4K-6K
Output Power Other, 4KW~6KW
Output Type Single
Size 560mm*315mm*300mm
Weight 2KG
Input Voltage 220VAC/110VAC
Output Voltage 220VAC/110VAC+/-10%
Type DC/AC Inverters
Output Frequency 50HZ/60Z
Output Current 41A--250AMP

solar inverter



Key Features

1.low frequency pure sine wave Grid Hybrid Off Grid Power Inverter

2.Selectable Grid power First or Solar Power First (battery power First )

3.Transfer Time 10ms. Computer will not shut off when Mains off suddently.

4. digital control Three stage charger, improve battery life

5.with Battery Selector for charge of diffreent battery

6.Power saver Function ( Stand by)

7.High Power Factor0.9-1,

8.Low idle current to reduce energy consumption

9.low DC input, 1-3KW/12V (24/48) VDC, 4-6KW/24V (48) VDC

10. big charge current,35A-75Amp for different mode

11.Back-Feed Protection

12. Full protection,short circuit,Overload,over Temp., Battery low/high Protection

13.Fault recovery

14. LED display and alarm

15.remove control solution

16. Rs232 communication function optional for LED Type





G-PSW  SERIES  TECHNOLOGY SPECS





Item Model G-PSW4K G-PSW5K G-PSW-6K
Capacity VA / Watts 4KVA/4KW 5KVA/5KW 6KVA/6KW
Surge rating (10s) 12KVA 15KVA 18KVA
Efficiency >95% under AC mode,>88% under DC mode
Power Factor 0.9~1.0,
Input Normal voltage 220VAC/110V
220V Voltage range 184-270V+-4%
110V Voltage range 85-150V+-4%
Frequency range 50Hz/60HZ -3 +5 Hz (Auto detection)
Output Voltage (V) 220V/110V+-10%
Frequency (Hz) 50Hz/60HZ +-0.3 Hz
Wave form Pure Sine Wave
bypass without Battery yes
UPS Mode   Grid power first. Battery power ( Solar Power) as backup
Solar inverter Mode   Solar Power First, Grid power as Backup
Transfer Time less than 10 ms (typical)
Overload capacity DC Mode(SMPS load) (110%<load<125%) ±10% for 15 minutes;
(125%<load<150%) ±10% for 60s;
Load>150% ±10% for 20s
AC Mode(SMPS load) by breaker
Protection Overload Current limit under DC mode ,Breaker under AC mode
Battery Protection Over charge, Over discharge,DC Breaker,Alarm
Over Temperature Variable speed fan,LED lighting and alarm
Back-Feed Protection yes
short Circuit. by breaker.Faul after 10 secs
Battery/Charger AC input 95-127V, 194(164)--243V
DC input 12VDC /24VDC or 48VDC,external Battery
Charge Voltage for 12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple
Charger Current 12-75AMP difference for different mode
Charge Manage digital control,Three stage charger
Display LED Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on
Audible Alarm Battery Low,Battery High,Over Temp. Over load,Fail,Over charge
Optional RS232 Communication,SNMP Net Agent,Remote Control
Power Saver below 25W when enabled.loading checking 2 time/sec.
Working Environment Temperature 0°C to 40°C
Noise 60dB max
Humidity 5% to 95%
Package Carton Carton Carton
Package Size WxDxH (mm) 765*340*320 765*340*320 765*340*320
Gross Weight   38 48 48
ATTENTION the inverter do not build in solar charger controller.
