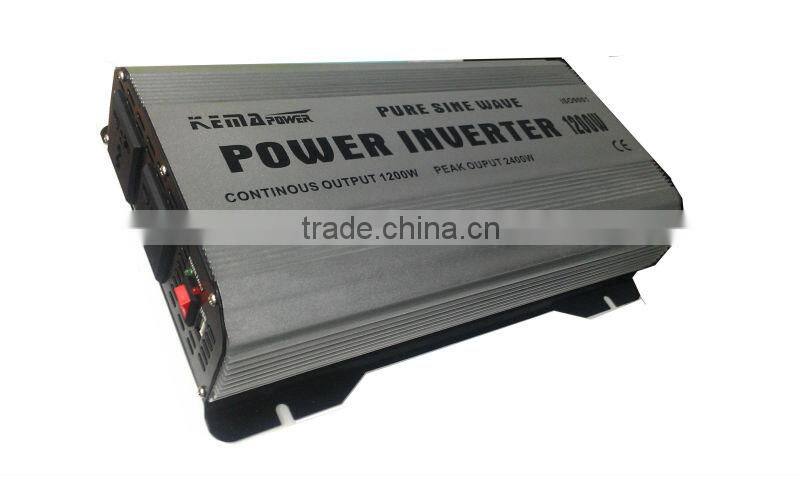

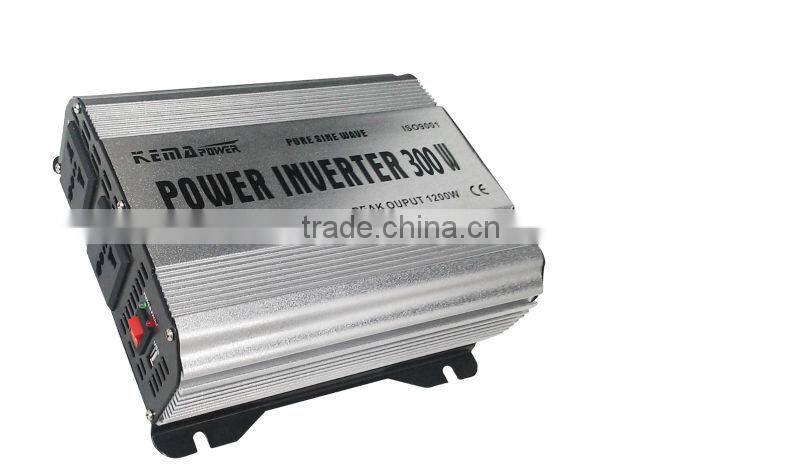

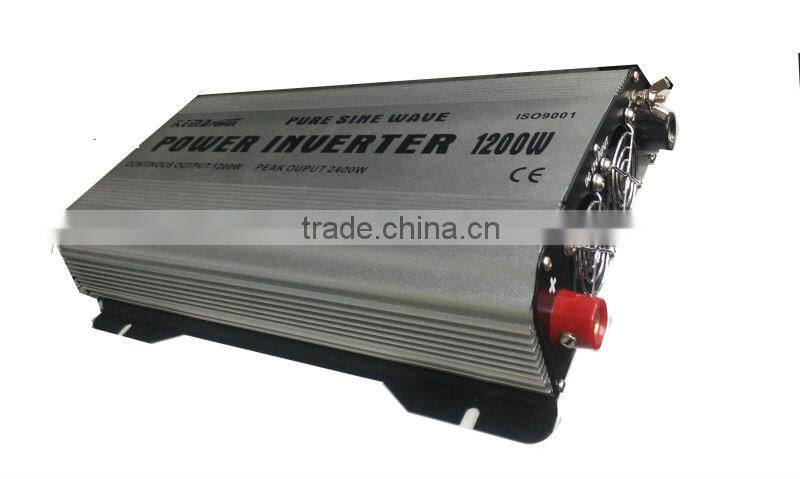

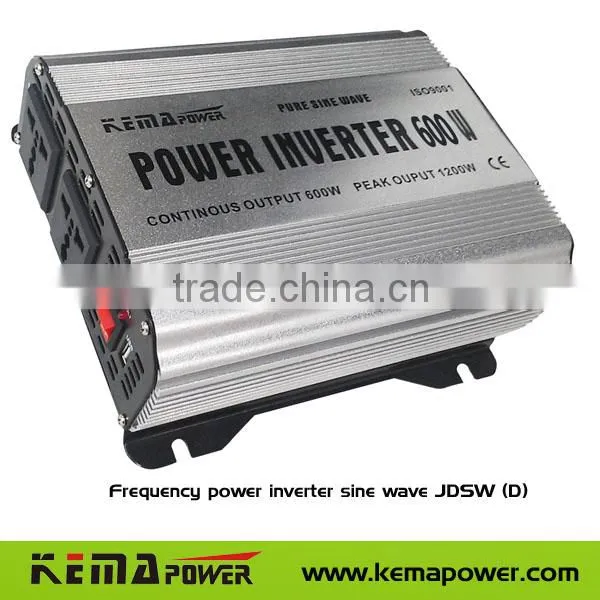

High Frequency Power Inverter Sine Wave JDSW (D) 300-1500W

High Frequency Power Inverter Sine Wave JDSW (D) 300-1500W thumbnail-1
High Frequency Power Inverter Sine Wave JDSW (D) 300-1500W photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
kemapower
Model Number:
High Frequency power inverter sine wave JDSW (D) 300-1500W
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name kemapower
Model Number High Frequency power inverter sine wave JDSW (D) 300-1500W
Output Power Other, 300-1500W
Output Type Dual
Input Voltage 11to 15V or 11V to 30V
Output Voltage 220V,110V
Type DC/AC Inverters
Output Frequency 50/60±5 HZ

 Key Features

1.Pure sine wave high frequency design
2.Small and light, high efficiency
3.Lower static current
4.Full protection for over temperature, over load and short circuit
5.With USB port





Technical Specifications





MODEL JDSW300 (D) JDSW600 (D) JDSW1200 (D) JDSW1500 (D)
DC INPUT VOLTAGE 12/24VDC 12/24VDC 12/24VDC 12/24VDC
DC INPUT RANGE 11V-15VDC or 11-30VDC 11V-15VDC or 11-30VDC 11V-15VDC or 11-30VDC 11V-15VDC or 11-30VDC
OUTPUT CAPACITY 300W 600W 1200W 1500W
SURGE CAPACITY 2 Times 2 Times 2 Times 2 Times
STATIC CURRENT <0.7A <0.85A <0.9A <0.95A
THD ≤5%
EFFICIENCY(FULL LOAD ) ≥85%
MAX EFFICIENCY ≥90%
OUTPUT VOLTAGE(NO LOAD ) 110V or 220V
OUTPUT FREQUENCY 50 or 60HZ±0.5HZ
USB OUTPUT 5V 500Ma
BATTERY LOW ALARM 10.2V-10.8V or 20.4V-21.6V
BATTERY LOW CUT POINT 9.2V-9.8V or18.4V-19.6V
RESUME VOLTAGE 11.7V-12.3V or 23.4V-24.6V
SHUT OFF VOLTAGE AT OVER-VOLTAGE 15.0V-16.0V or 30V-32V
OVER LOAD PROTECTION Yes
OVERCURRENT PROTECTION Yes
SHORT CUICIRT Yes
OVER TEMP. PROTECTION Yes
LED DISPLAY Green LED (Power) Red( Fail or protection ), JDSW and JDSW-D
Digital display AC ON (888), I/P VAC (U) O/P Watts (P), JDSW-D only
Product Size(mm) 175x175x70mm 200x175x70mm 310x175x70mm 310x175x70mm
Carton size(mm) 660x255x245mm 660x280x245mm 400x395mmx245mm 400x395x245mm
Carton weight (kg) 11 13 13.5 13.5
PCS /CTN 5 5 3 3





 High Frequency power inverter sine wave JDSW (D) 300-1500WHigh Frequency power inverter sine wave JDSW (D) 300-1500W



High Frequency power inverter sine wave JDSW (D) 300-1500WHigh Frequency power inverter sine wave JDSW (D) 300-1500W
