GIGA LX Corrugated Carton Box Cutting and Creasing Machine

GIGA LX Corrugated Carton Box Cutting and Creasing Machine photo-1
US$ 30,000 - 85,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Other, Food, Machinery & Hardware
Packaging Type:
Cartons, Film
Payment & Shipping
Payment Methods:
Port of Shipment:
port of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Other, Food, Machinery & Hardware
Packaging Type Cartons, Film
Packaging Material Plastic, Metal
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Place of Origin Shanghai, China
Brand Name GIGA LX
Model Number LX 107
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Semi-automatic chain feeding
2.Step-less speed changing make stable running
3.cardboard cutting and creasing machine

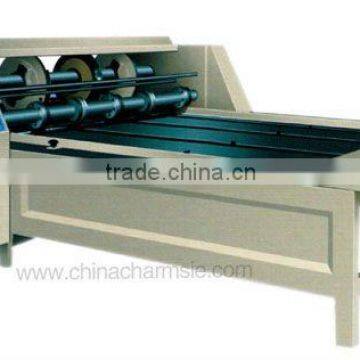

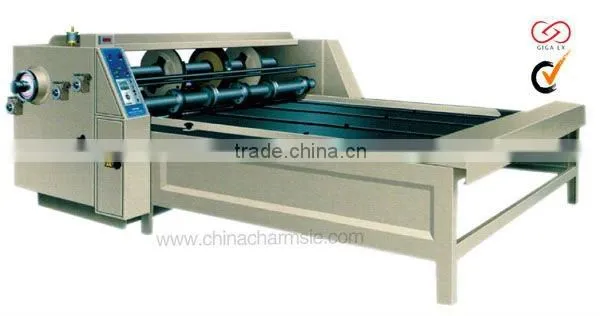

LX-406 Semi-automatic Rotary Die Cutter

Cardboard cutting and creasing machine main functions:

  1. Semi-automatic chain feeding rotary die cutter - compact in design, easy operate, fine die-cutting
  2. Step-less speed changing (from 20 to 80 pcs/min) make a stable running
  3. Light, electric, and gas combined control, to make carton at one cutting, safe and efficient
  4. Transmission gears are made of high quality alloy steel with fine treatment. Spraying circulation is adopted to lubricate the gears, reduce noise and prolong the service life
  5. Pneumatic lifting device working synchronous with the feeding system (During the feeding operation the mould roller pressed and when the feeding stops the mould roller released to ensure the correct die-cutting of every paperboard)
  6. Mechanical drive anvil roller transverse moves within 40mm and installed with radial differential device to spread wear evenly and to improve the life of anvil roller
  7. Speed difference compensation device adjusts roller speed automatically to guarantee perfect cut, unformed carton size .
  8. Phase adjustment, with harmonic device and transducer control, dynamic and static 360 degree motorized adjustment, easy and quick, Box machine are made in good quality.



Model

2000*1400

2250*1400

2500*1400

Max. machine speed (pcs/min)



60

60

60

Max. feeding size(mm)



2000*1370

2250*1370

2500*1370

Feeding depth (mm)

2.5 12

2.5 12

2.5 12

Max. die-cutting size (mm)



1900*1260

2150*1260

2400*1260

*Subject to change and improvement without notice
