Specifications
Touch /electric PLC control systemAlloy steel (40Cr) grinded
Spraying circulation carton machinery
Chrome-plated surface

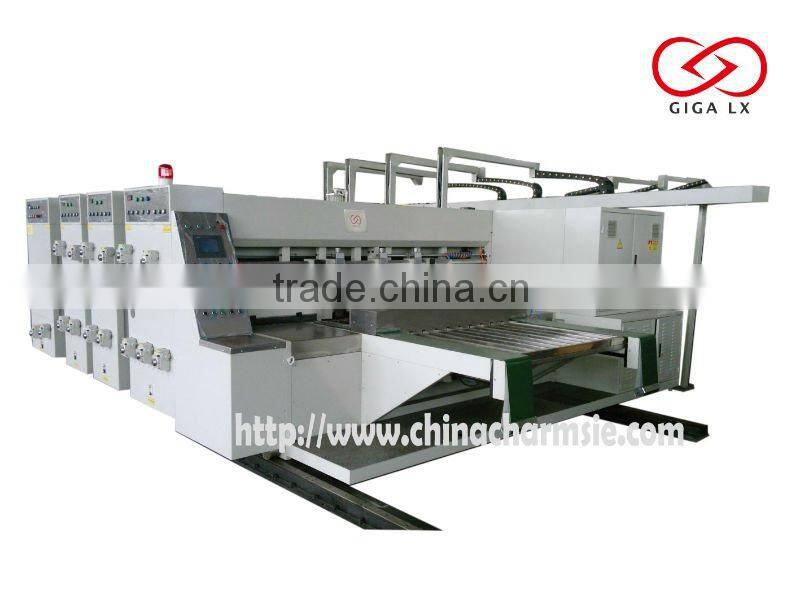

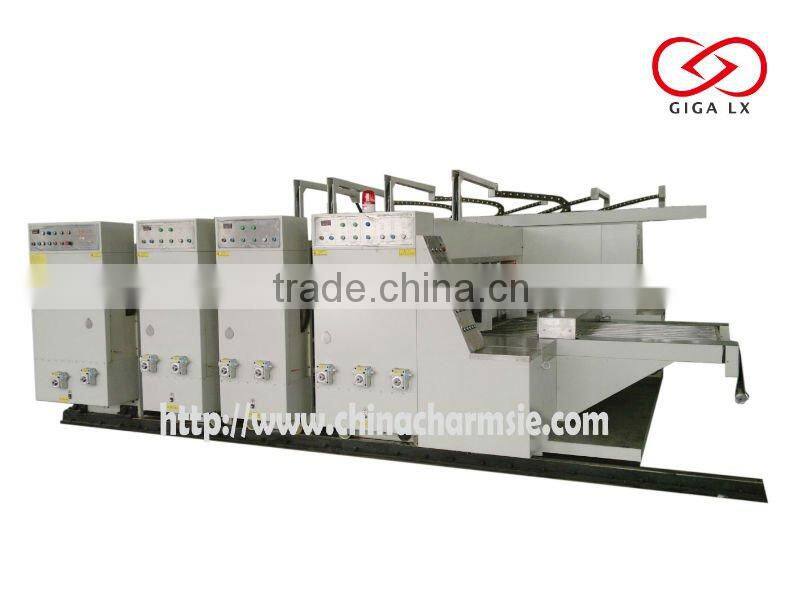

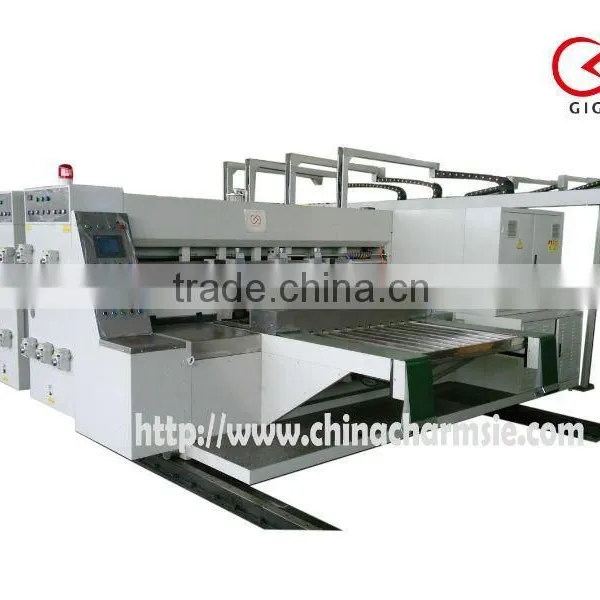

LX-207 Automatic flexo printing slotting machine
Carton machinery main functions:
l Touch screen and electric control dual system
l High quality materials and fittings. All transmission shafts and rollers with chrome-plated surface to enhance durability
l All transmission gears are made of high quality alloy steel (40Cr) grinded under high temperature with hardness > HRC42
l Siemens touch screen and PLC dual system control, with stable performance and low malfunction rate
l CAPT-LOCKS union link to guarantee long lasting overprint precision
l Spraying circulation is adopted to transmission gears lubricating, to reduce noise and to prolong service life.
l Carton making machine with pneumatic lock, electric open and close and automatic brake system, insure printing position will not be misplaced
l Audible alarm while unit moving on the rail and setting scram switch to ensure operation safety
Feeding Unit
l Position of side-jogger, kicker and back-stopper motorized adjustment, easy and quick
l Aluminum alloy kicker light and durable
l Power of suction blower adjustable to make a smooth feeding.
l Side-jogger make orderly and accurately feeding
l Upper feeding roller is rubber coated and lower roller is chrome plated after reticulate engraving. The pneumatic bumper reduces damage of the substrate and increase feeding accuracy
Skip feeding fit large size paperboard. (continue or skip at your option)
Automatic counting device
Printing Unit
l Chromed plated anilox roller, durable and with high printing precision
l Motorized adjust, easy and quick
l Special ground central convexity rubber roller achieve excellent ink spreading
l Anilox roller auto lifting device synchronous working with paper feeding system (In feeding, anilox roller pressed whereas in stop, it released)
l Hanging forme, foot switch control, make installation easy and quick
l Phase adjustment, with harmonic device and transducer control, dynamic and static 360 degree adjustment
l Electromagnetic clutch braking mechanism to lock gears position when unit are opened. Forme position will be restored when units are closed
l Manual adjust printing cylinder transverse register (20 mm)
Slotting Unit
l 7 mm thick slotting knives made of high quality alloy steel, with sharpened endurable teeth
l Slotting knives phase adjustment, with harmonic device and transducer control, dynamic and static 360 degree adjustment
l Transverse movement of slotting head motorized control, easy and quick
l Hole punch device is option

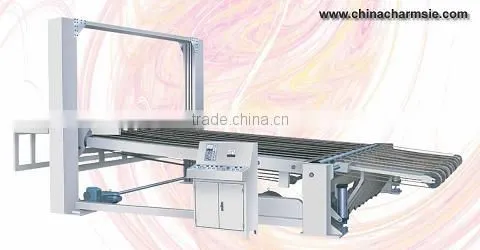

Stacking Unit
l Connection arm has manual and automatic operation methods
l Tension of the driving belt of connection arm can be adjusted alone; quantity of connection arms can be set at will
l Stacking height: 1600 mm
l Platform elevation and transmission motor has braking function, to prevent from down-slipping
l A pneumatic controlled plate will pop-up to hold the coming substrate when the pre-set height reached
l The hopper width manual adjust
l Anti slipping belt used in the transport bed , corrugated machine paperboard machine.
Model | 2500*1400 | 2800*1400 | |
Max. machine speed (pcs/min)
| 120 | 120 | |
Max. feeding size(mm)
| 2470 *1370 | 2770*1370 | |
Min. feeding Size(mm)
| 650*380 | 650*380 | |
Skip feeding size(mm)
| 2470*1570 | 2770*1570 | |
Feeding depth (mm) | 2.5 12 | 2.5 12 | |
Max. printing area(mm)
| 2450*1350 | 2750*1350 | |
Standard printing plate thickness(mm)
| 7.2 | 7.2 | |
Min. slot interval | Positive cut (mm)
| 140*140*140*140 | 140*140*140*140 |
Reverse cut (mm)
| 220*60*220*60 | 220*60*220*60 | |
Max. slot depth (mm) | 350 | 350 | |
*Subject to change and improvement without notice
