Specifications
rrugated carton machine2.Suction blower 2 pairs roller
3.Frequency conversion motor drive
4.Single Facer case

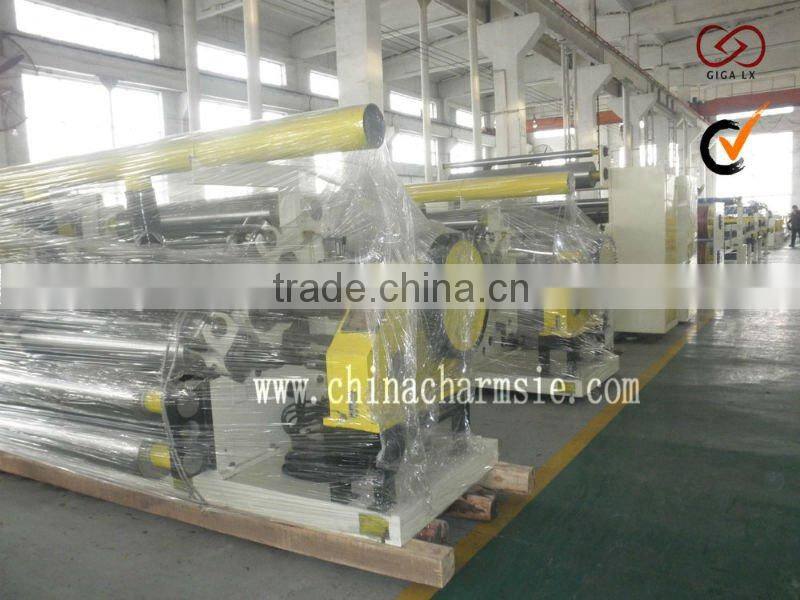

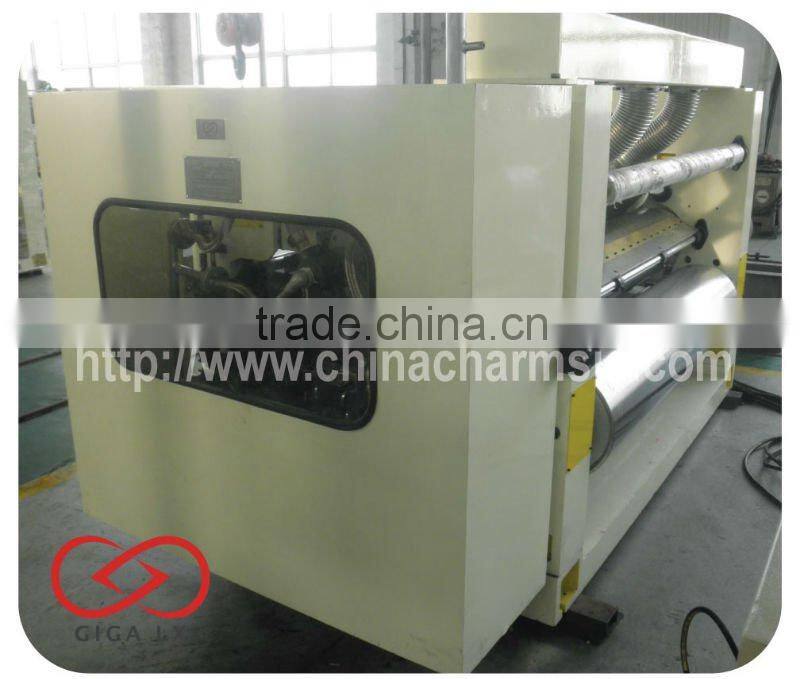

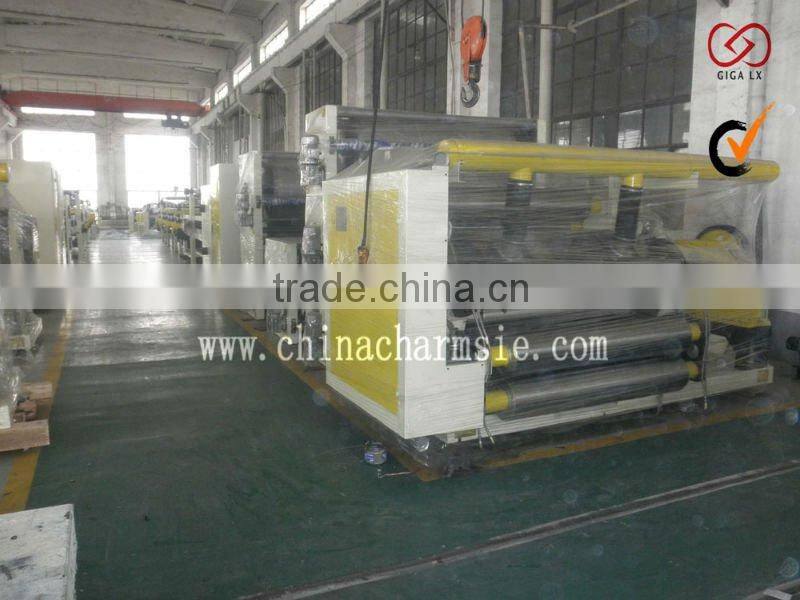

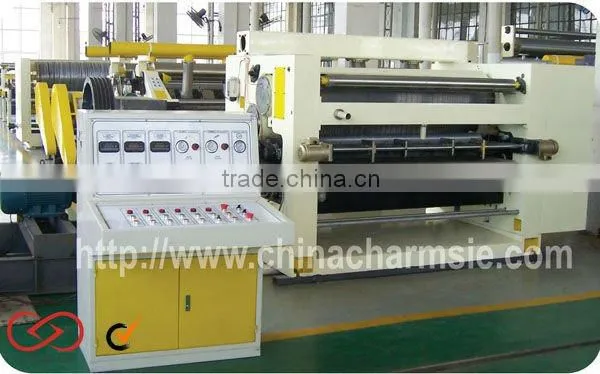

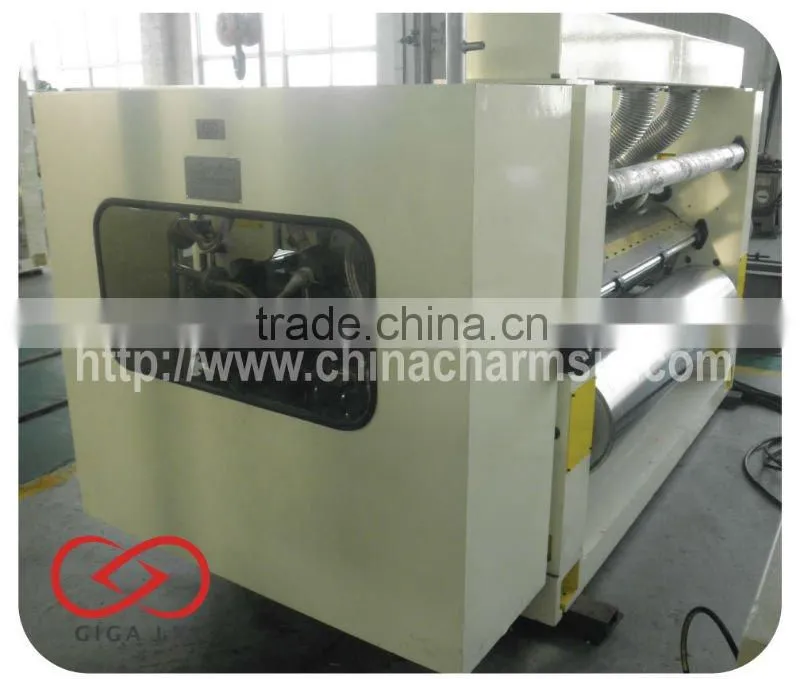

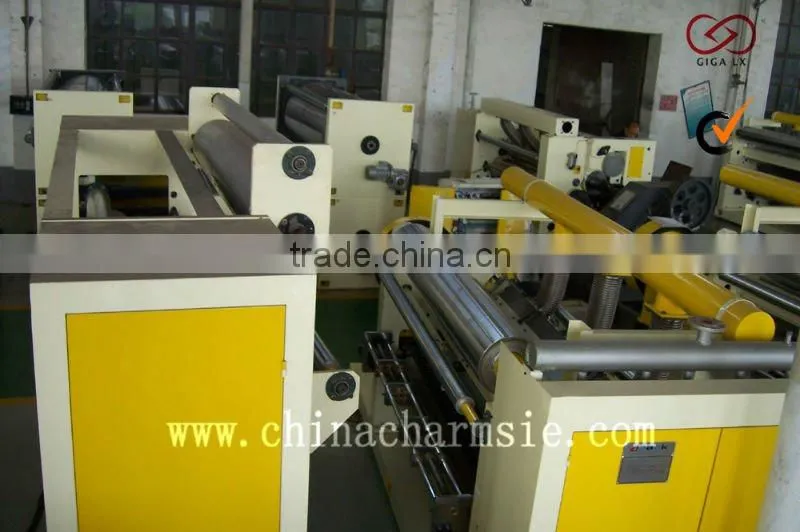

GIGA LXC corrugated carton box making machine
corrugated carton machine / box files making machine / corrugated making machine

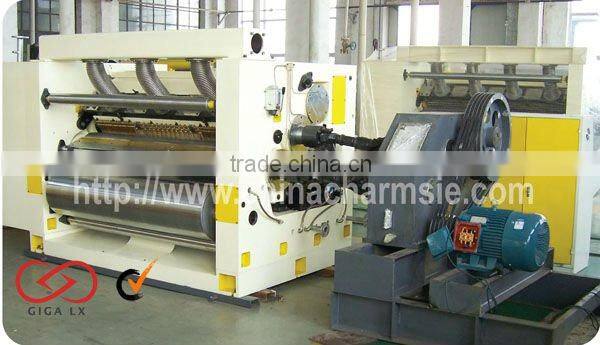

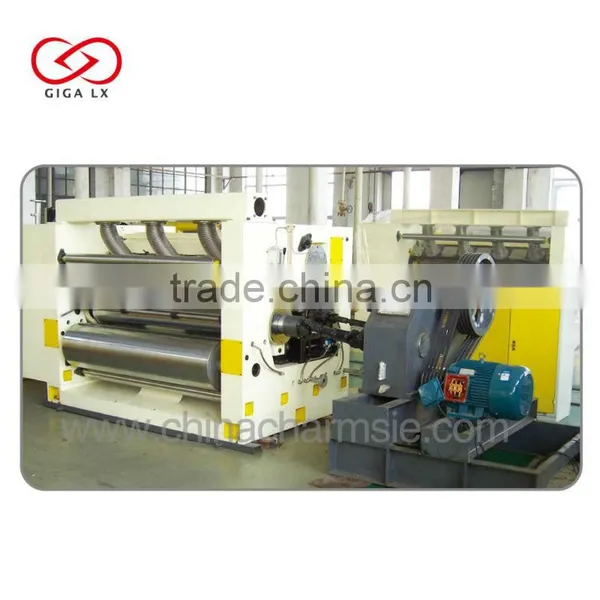

Single Facer case carton box making machine 2200mm
- corrugated carton machine designed speed: 180 m/min
- Diameter of corrugating roller: 320mm
- Available width: 1600mm - 2200mm
- Heat suply: steam
- Suction blower type paper delivering, high energy utilization ratio, good flute shape
- Two pairs of corrugating roller with different flute types - one pair working, while the other pair running idle. Motorized flute shift, quick restart, improve productivity greatly
- Gluing section adopts module design, independent frequency convert driving. Sliding on the rail, hydraulic locking, shorten maintenance time. Pneumatic glue trough moving. With motorized dividing-glue device, easy width adjustment. Glue supply motorize adjustment, digital display
- Circular glue supply, to avoid possible drying up
- With medium spraying device
- corrugated carton box making machine upper and lower corrugating rollers are made of 48CrMo alloy steel, with heated treatment for hardness HRC56-60
- Frequency conversion motor drive, frequency converting equipment controls accelerate/decelerate to save energy, obligate with communication interface for the future production management. Two sets of independent driving case with universal joint power transmission, to insulate vibration. Immersed / closed gear box lubricating to reduce noise, and to improve running stabilization as well.
Cardboard making upper / lower corrugating rollers and pressure roller apply with high-temperature-resist lubrication to keep running smoothly and durably. Centralized manual lubricating system also being equipped. (two pairs corrugated roller)
20140616 j2
