GIGA LXFMZ Automatic Paper Flute Laminating Machine

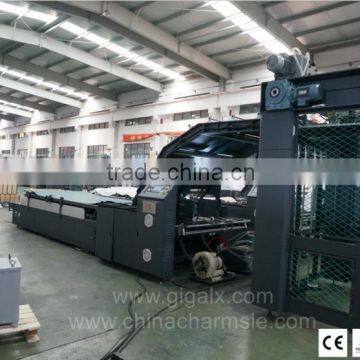

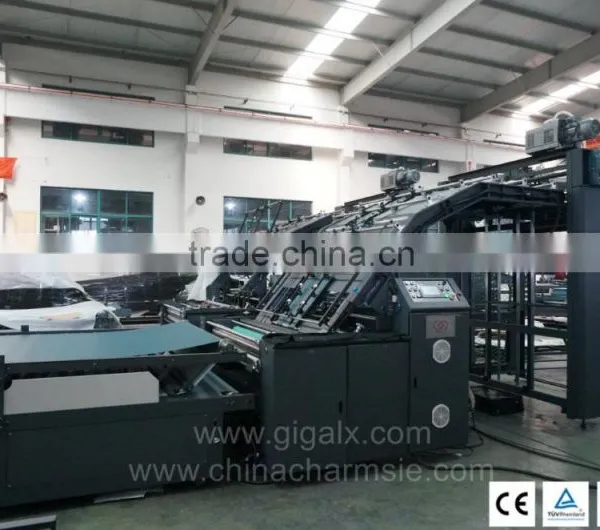

GIGA LXFMZ Automatic Cardboard Paper Flute Laminating Machine
PERFORMANCE AND CHARACTERISTICS
1. Automatic feeding for top sheet and bottom sheet.Fine adjustable pneumatic correction system for top paper to ensure laminating accuracy; suction belt og friction type to ensure trouble-free feeding for bottom paper.

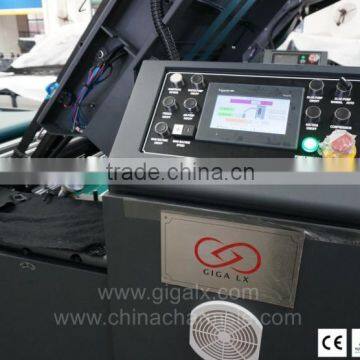

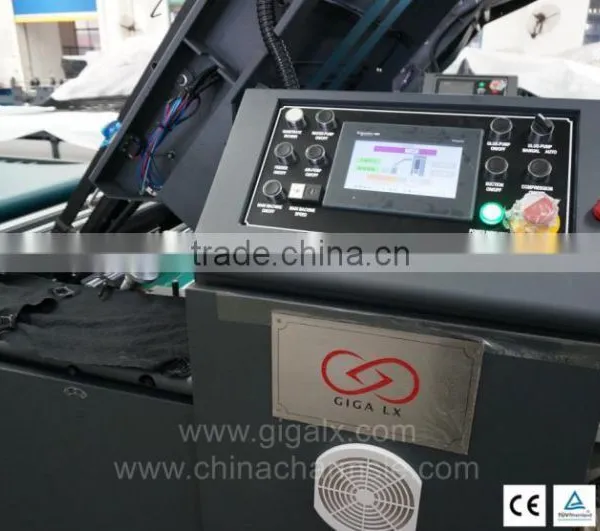

2. Integrated control with PLC and button control can provide easy operation&troubleshoot during the production. safety for user is widely considered in the machine design.
3. Famous international brand of components like bearing, electrical parts are used in the critical functioning part of the machine. such as NSK bearing, schneider electricals, habasit belt, etc.

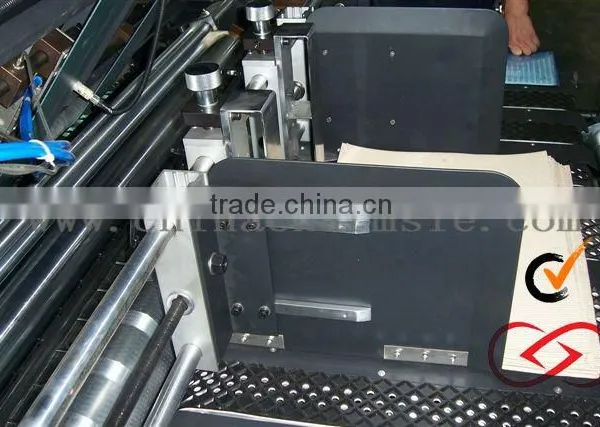

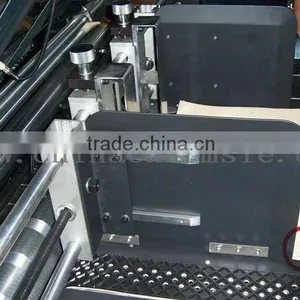

4. Elastic front register positioning, the bottom sheet does not exceed the top one, the front-and-back distance between the top sheet and the bottom sheet can be adjusted......
5. Configuration: pre-pile system+auto feeder+pneumatic top sheet correction system(with air compressor)+front register position+pneumatic glue pump+floating type pressing part+manual delivery part;
6.LXFMZ-G igh-speed model, with SERVO motor drive to assure high-speed and laminating accurance for optional.
LXFMZ series is mainly used for laminating cardboard with corrugated paper with perfect result and high speed. suits for total less than 9mm after laminating.
optional:
1)suits for laminating card paper(above 300gsm) with card paper(above 300gsm),
2)suits for laminating total thickness less than 12mm .
5000sph speed Laminating Machine for corrugated machine
Performance and Characteristics
- Automatic Laminator
- Automatic feeding for top sheet and bottom sheet.

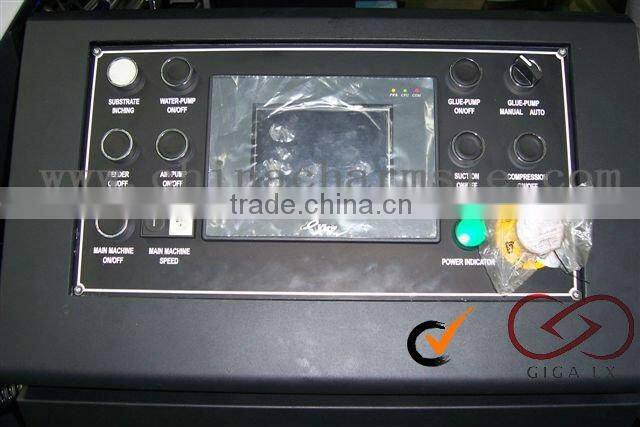

- Integrated control with PLC can provide easy operation & trouble shot during production. Safety for user is considered and widely used in the machine design.
- Famous international brand of components like bearing, electrical parts are used in the critical functioning part of the machine.

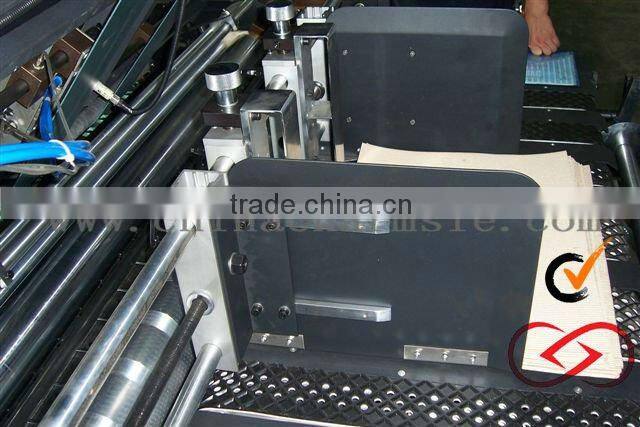

- Elastic front register positioning, the bottom sheet does not exceed the top one, the front-and-back distance between the top sheet and the bottom sheet can be adjusted.
- Flute laminating machine suitable for laminating bottom cardboard more than 300g/m2 with top paperboard, laminating paperboard with A//C/B/E flute corrugated cardboard, and laminating machine price is good.
- Flute Laminating Machine and cardboard laminating machine is made in very good quality.
Paper laminating machine main Techinical Parameter:
| LXFMZ MAIN TECHNICAL PARAMETER | |||||||||||
| MODEL | LXFMZ-1300 | LXFMZ-1450 | LXFMZ-1650 | ||||||||
| (MM) | MAX SHEET SIZE | 1300*1300MM | 1480*1300MM | 1650*1650MM | |||||||
| (MM) | MIN SHEET SIZE | 400*400MM | 400*400MM | 400*400MM | |||||||
| (KW) | TOTAL ELECTRIC CONSUMPTION | 19KW | 25KW | 26KW | |||||||
| (g/ per square meter) | WEIGHT OF TOP PAPERBOARD | ≥180g/ | ≥180g/ | ≥180g/ | |||||||
| (MM) | LAMINATING TOLERANCE | -1.5 | -1.5 | -1.5 | |||||||
| MAX SPEED | 8000SPH | 8000SPH | 8000SPH | ||||||||
| WEIGHT | 5500KGS | 6200KGS | 6500KGS | ||||||||
| OVERALL DIMENSION(MM) | 14220*2150*2960 | 14920*2350*2960 | 15590*2500*2960 | ||||||||
| LXFMZ-G MAIN TECHNICAL PARAMETER / High-speed ,servo | |||||||||||
| MODEL | FMZ-G1300 | FMZ-G1480 | FMZ-G1650 | ||||||||
| (MM) | MAX SHEET SIZE | 1300*1300MM | 1480*1300MM | 1650*1650MM | |||||||
| (MM) | MIN SHEET SIZE | 400*400MM | 400*400MM | 400*400MM | |||||||
| (KW) | TOTAL ELECTRIC CONSUMPTION | 20KW | 27KW | 27KW | |||||||
| g/ per square meter) | WEIGHT OF TOP PAPERBOARD | ≥180g/ | ≥180g/ | ≥180g/ | |||||||
| (MM) | LAMINATING TOLERANCE | -1.5 | -1.5 | -1.5 | |||||||
| MAX SPEED | 11000SPH | 11000SPH | 11000SPH | ||||||||
| WEIGHT | 6200KGS | 6500KGS | 6800KGS | ||||||||
| MM) | OVERALL DIMENSION(MM) | 16070*2150*1960mm | 16770*2350*2960mm | 16770*2500*1960mm | |||||||
| STANDARD ELECTIC POWER: 3PHASE 380V/50HZ (3PAHSE 220V/60HZ CAN BE OPTIONAL) | |||||||||||

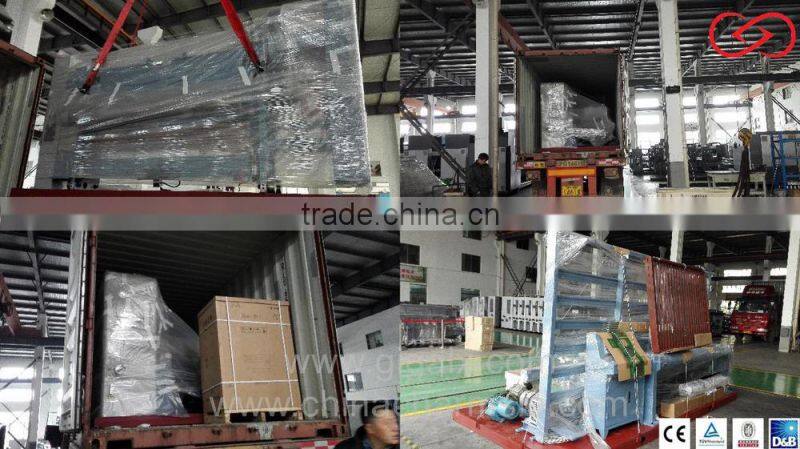

Packing & Shipping

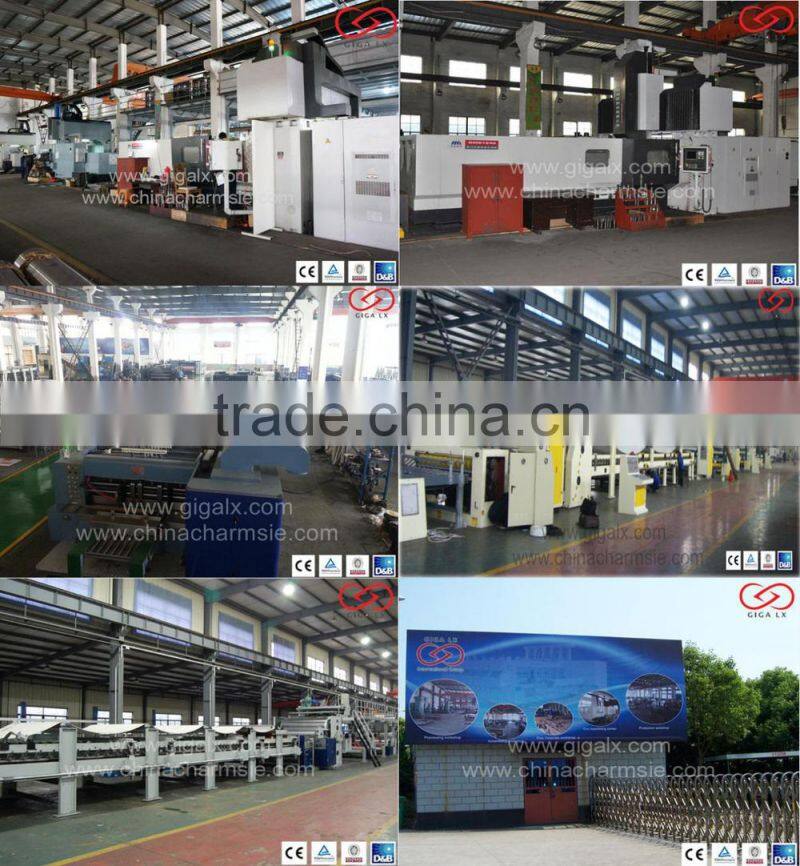

Company Information
Vision: To be a crosscentury enterprise, become a group corporation owns ten international brand group with 200 design engineers.
Mission: Better machine, better carton, to provide efficient, complete plant, systematic solutions for factory construction.
Operation: Overall every control and clear.
Business philosophy:
Differentiation----no one else had
Specialization----better than anyone else
Primacy----design newer than anyone else
Value maximization----maximizing personal property along with company value

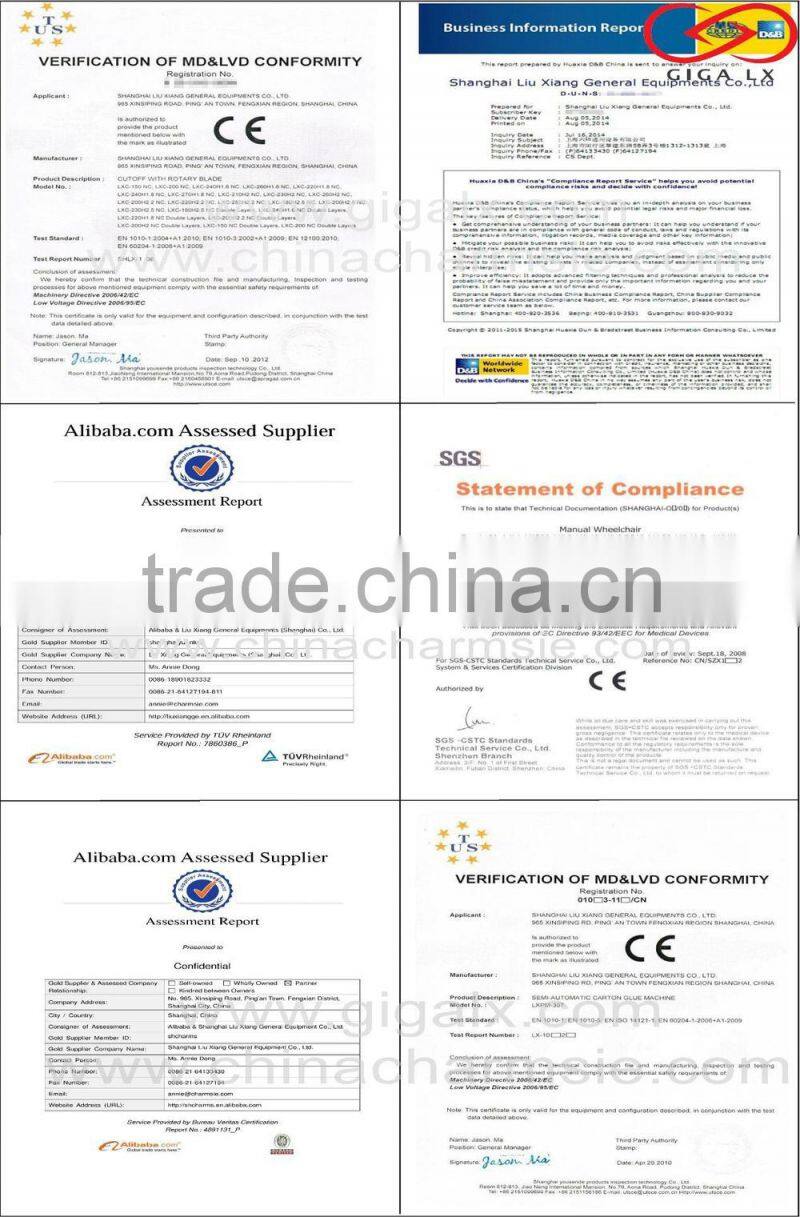

Certificate
GIGA LX Advertisement
GIGA LX Exhibitions
GIGA LX Special offer
We provide loan to below business situation
GIGA LX After-service System
GIGALX Complete Factory Design
