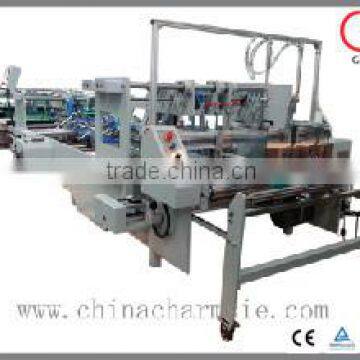

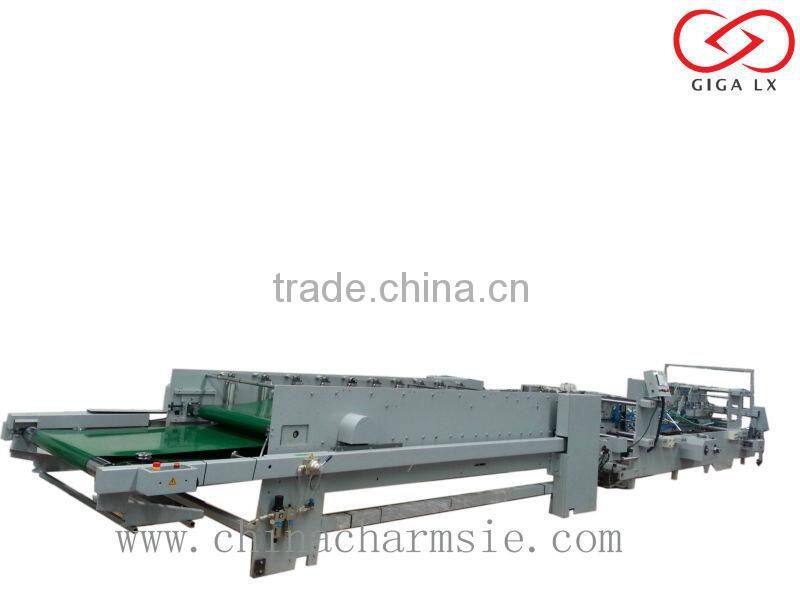

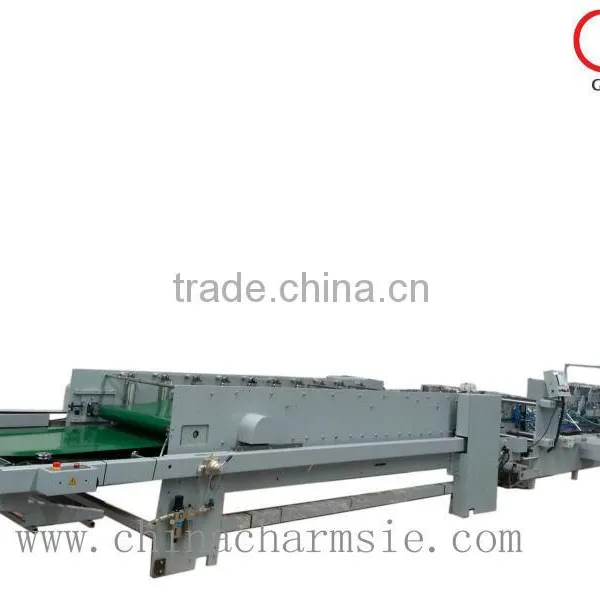

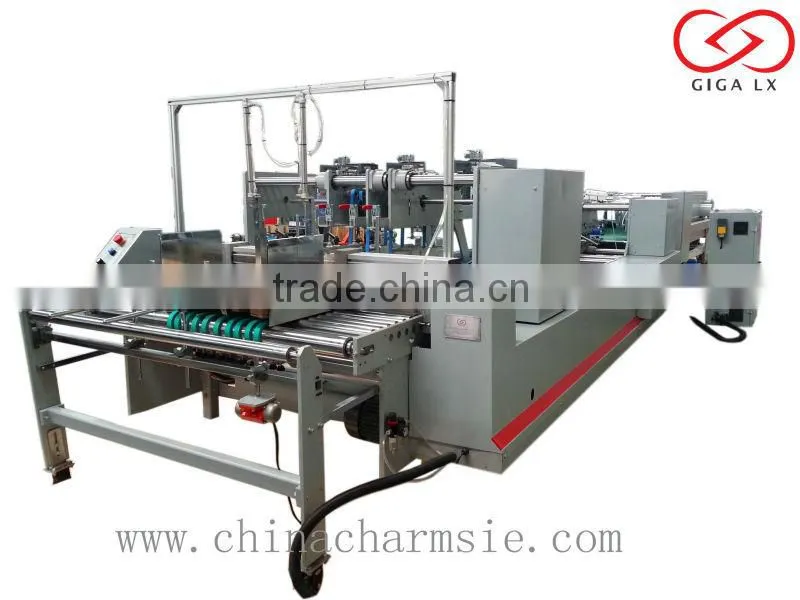

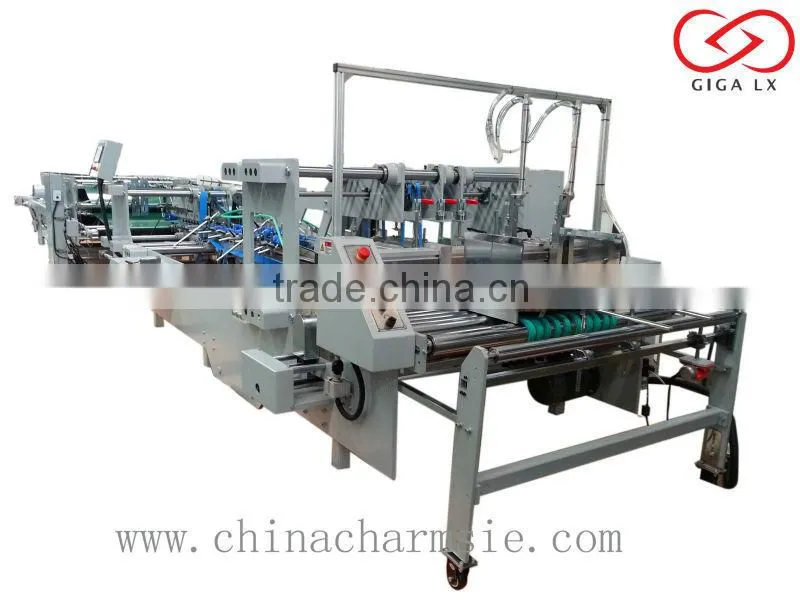

GIGA LXFG-1200 High Quality Automatic Folder Gluer Machine Offline
Ⅰ. Machine model: FG-1200 folder gluer
Power supply: 380V AC3F 50Hz
Automatic folder gluer machine configuration:
Folder gluer feeder
1. Feeding belts 12pcs /set (remarks:good friction, smooth feeding)
size:8×25×1110mm
2.Adjustable feeding knife: 3 sets
3. Infinite speed regulator (Japanese made) 1 set
4. Vibrating motor 1 set
Alignment section
1. Whatever kind of paper boxes within our range can be aligned at left or right, which reduces the technical requirements of workers, also enhance box quality.
2. Electronic adjustment for the carrier 2 set(more convenient and save adjusting time)
3. Japanese belts 2 pcs /set size : 4*30*3432
Lock-bottom Section
- Stainless steel gluing wheels are used
- Two sets gluing wheels are equipped for lock-bottom gluing.
- Hooks module for lock-bottom: 4 groups
- Guide-rail structure is adopted for belts running
- Special ATG plastic-steel bearing holders are used
- Belts in this section: 6pcs,specification: 3490*30*4 3pcs / 3160*19*4 3pcs
Lower Gluer (straight-line boxes)
1. two gluer tanks here, one at left, the other at right
2. glue scraper device
3. the core of driving shaft is sealed, avoid leaking
4. stainless steel knirled gluing wheels
Folder
1. folding belts are running synchronously, they can not slide, damage the boxes
2. the upper installing plate is controlled by independent supporting pole, up and down parts can be separated
3. inside frame is electrically controlled 3 sets
4. the speed of outer folding belts is independently controlled, Japanese infinite speed regulator 2 pcs (here is the second alignment for the boxes)
5. three carriers or two carriers are optional
6. Folding belts 8pcs / set
size: 4*30*7919 4*50*7919 4*30*7036 4*60*7036
4*19*4048 4*19*5390 4*30*4048 4*30*5390
7. rail system for the belts, which can not go to the side
8. Precise guiding wheels are used, no swing
Pressing section
1. Taiwan counter and sensor
2. pneumatic kicker
3.main driving system for belts
size: 4*30*2765 2pcs 4*19*2700 2pcs
4.alignment function, here is the third correction
5. electrical adjustment for the frame
Conveyor
1. frequency-converting speed control with main machine
2. meters lengthened
3.up and down belts are driving system, more synchronous
4. Belt size:3*630*6680 1 pcs 3*630*8510 1pcs
Specification of synchronous belts:
8*30*1440 1 pcs 8*30*2200 1 pcs 8*25*2016 1 pcs
8*30*2448 1 pcs 8*30*2656 1 pcs 8*30*2840 1 pcs 8*30*1240 1 pcs
Folder Gluer Machine Electrical System:
1. Schneider low-voltage electric elements
2. Schneider inverter
3. PLC control system
4.Main motor: 15 KW motor in conveyor : 3.75KW
Motor in feeder: 1.5kw, lifting motor: 200W*10
5. Taiwan motor
6. Independent electrical cabinet
