GIGA LXMHC Semi-Auto Corrugated Cardboard Flat Die Cutter Machine

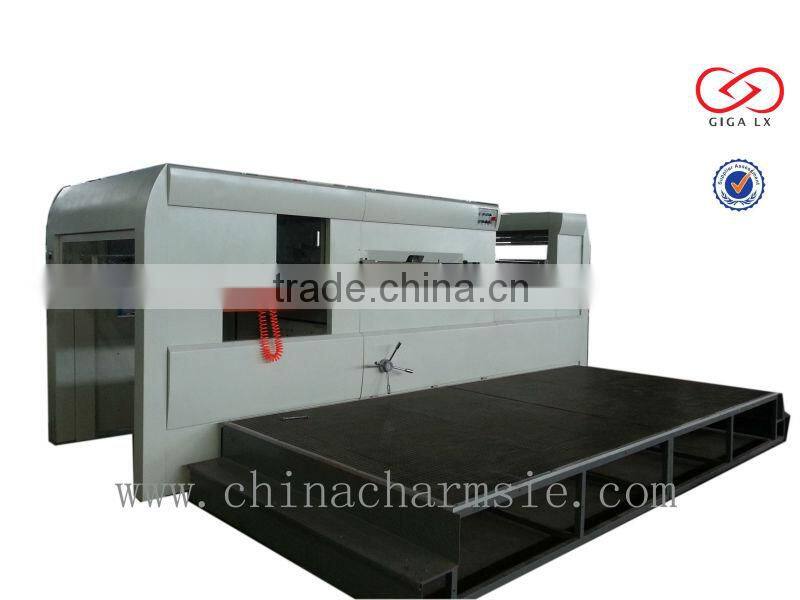

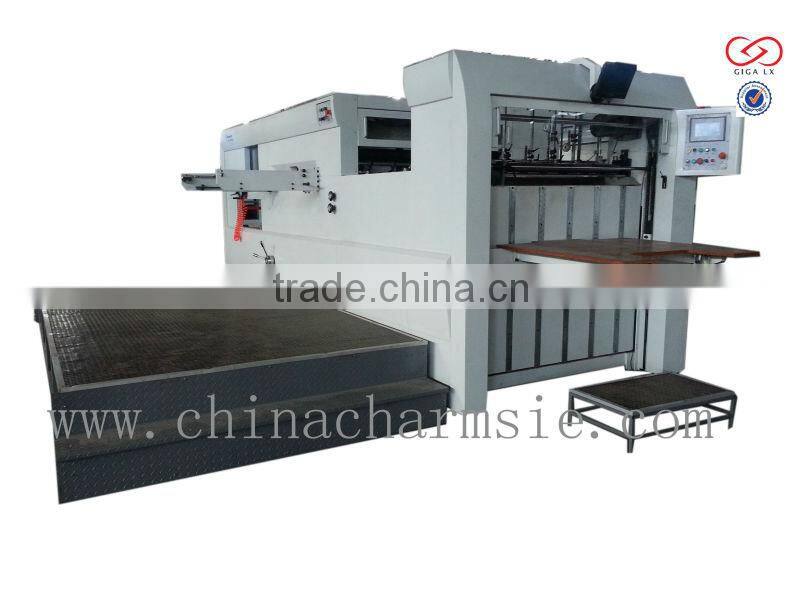

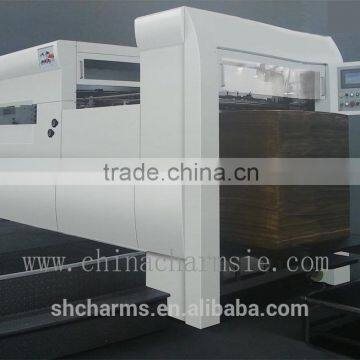

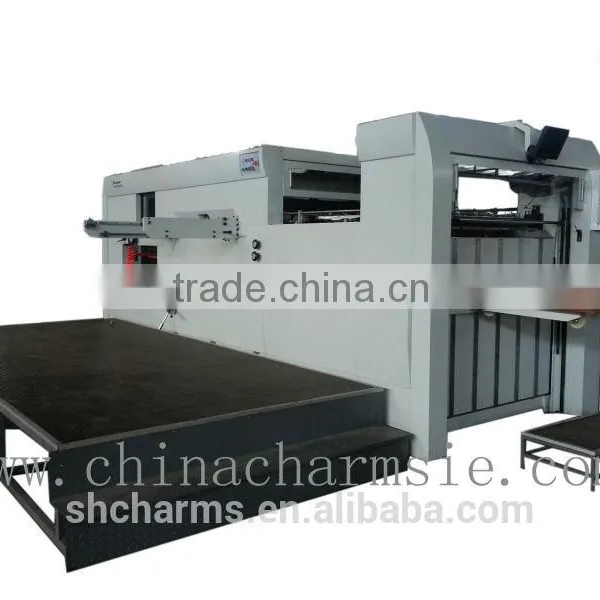

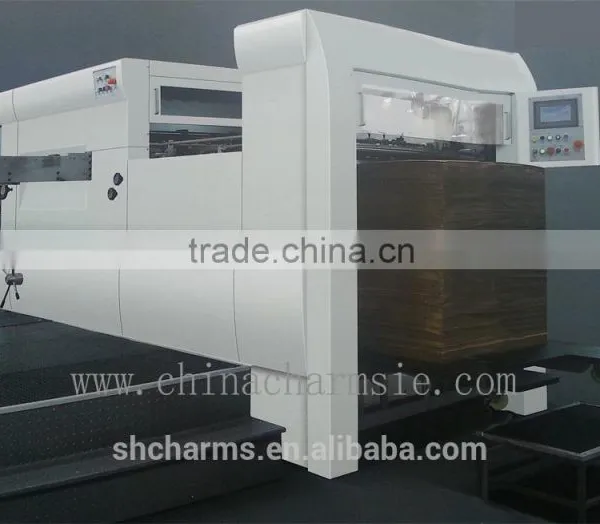

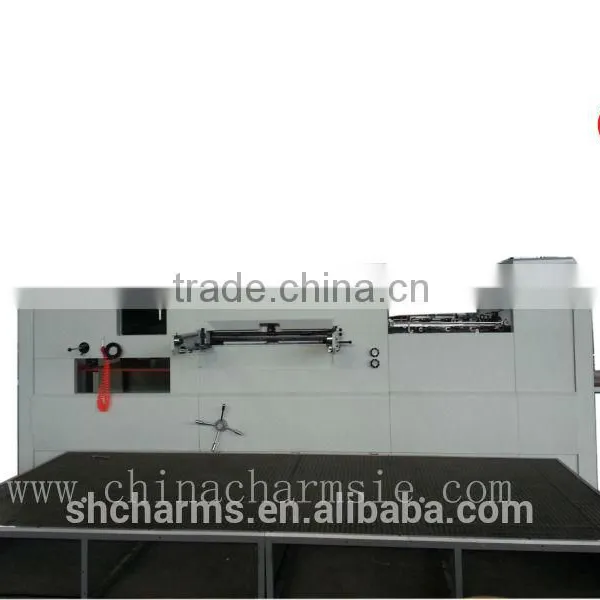

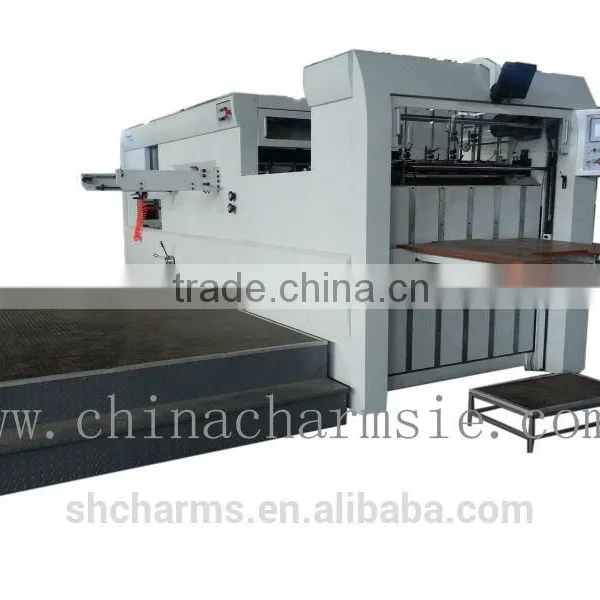

GIGA LXMHC Semi-Auto Corrugated Cardboard Cutting Flat Die Cutter Machine
LXMHC-1100/1300/1500/1650B
Die Cutter Machine main functions:
This semi-automatic die-cutting machine’s development is combined with advantages of similar products in domestic and over seas, is a special equipnment for packing products such as cartons and paper boxes.
Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper, Lead edge feeder is for option.
Frontal,back and side registration mechanism ensure great precisionof die-cutting.Other parts are adopted such as intermittent mechanism with high precision, air cluth, pneumatic locking mechanism,programmable controller and man-machine interface.
The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc.It is easy to eliminate troubles according to the display of trouble shooting.
Transducer is adopted to control the main motor in achieving step-less speed variation.
TECHNICAL DATA
model 1100B 1300B 1500B 1650B |
|
1100×790 1290×940 1500×1100 1650×1210 Max. paper size (mm) (mm) (mm) (mm) |
|
400×350 550×480 550×480 650×550 Min.paper size (mm) (mm) (mm) (mm) |
|
1070×770 1280×930 1490×1090 1620×1190 Max.die-cutting size (mm) (mm) (mm) (mm) |
|
5000 4000 4000 3200 ing speed s/h s/h s/h s/h |
|
11 13.5 13.5 19.7 Rated power kw kw kw kw |
|
250 250 300 300 ing pressure (t) (t) (t) (t) |
|
13 15 17 28 Machine weight (t) (t) (t) (t) |
|
4500×3020×2085 6050×3220×2085 6270×3450×2150 6610×3767×2270 Overall dimension (mm) (mm) (mm) (mm) |
|
≥250g ≥250g 1-7mm 1-7mm Scope of application ≤7mm ≤7mm |
|
white board white board corrugated paper corrugated paper corrugated paper corrugated paper |
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for die cutting machine and box machine LX-308N, LX408N LX-608CN or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
5. Corrugated carton die cutter machine are made in very good quality, flexo printing die cutting machine price is very good .
