QT4-15c low investment hydraulic pressure brick block machine for hollows and pavers
Brief introduction of QT4-15 fully automatic high quality concrete hollow paver bricks block making machine:
QT4-15 is a new kind high quality fully automatic concrete hollow paver and curbstone bricks block making machine. QT4-15 is more automatic and with higher capacity than QT4-25.It can produce all kinds blocks not only hollows, solid but also pavers, curbstone. The whole line includes PLD800 batching machine, JS500 mixer, conveyor belt, host machine and stacker machine.
The followings are advantages of QT4-15:
1.It is with bigger size and can be stronger
2.It has two hydraulic rams, so with better pressure and blocks
3.It has bigger pallet size, so has higher capacity one day
4.It can prouce all kinds bricks
5.More automatic and cheaper price than others lines
Equipments needed of QT4-15 fully automatic high quality concrete hollow paver bricks block amking machine:
No. | Model | Quality | Weight KGS | KW |
1 | PLD800 batching machine | 1 | 3000 | |
2 | JS500 mixer | 1 | 3500 | |
3 | QT4-15B hollow concrete brick/block machine | 1 | 5500 | |
Accessory for QT4-15B | ||||
Conveyor belt | 1 | 1000 | ||
Hydraulic station | 1 | |||
PLC controller | 1 | |||
Block sweeper | 1 | |||
Hydraulic barrow | 2 | |||
Fittings | 1 | |||
Tools | 1 | |||
4 | Stacker machine | 1 | 2000 | |
5 | Total | 15000 | ||
Main parameters and specifications of QT4-15 host machine fully automatic high quality concrete hollow paver bricks block making machine:
Main specification and technical parameters | |
Overall size | 2400x2100x2600mm |
Shaping cycle | 15-18 seconds |
Pallet size | 1010x550x25mm (bamboo) |
1010x550x25mm (plastic) | |
Vibration frequency | Max.4500 R/Min |
Electricity | 380V/220V/ (adjustable) |
Vibration force | 50KN |
Total weight | 5500 KGS |
More pictures of different parts of QT4-15 fully automatic high quality concrete hollow paver bricks block amking machine:

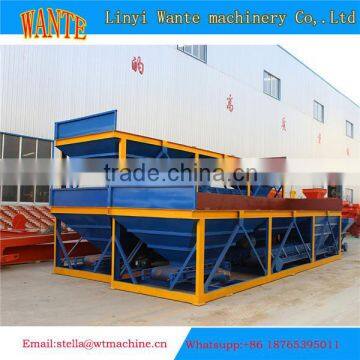

1.PLD1200 Batching machine
2.JS500 Mixer
3.Conveyor belt
4.Stacker machine
Block sample of QT4-15 fully automatic high quality concrete hollow paver bricks block amking machine

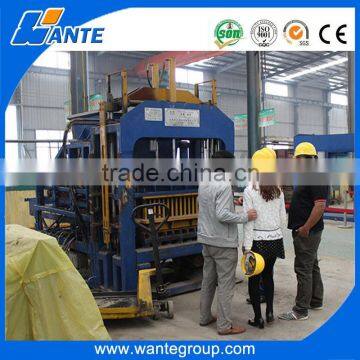

Working time of QT4-15 fully automatic high quality hollow paver bricks block making machine

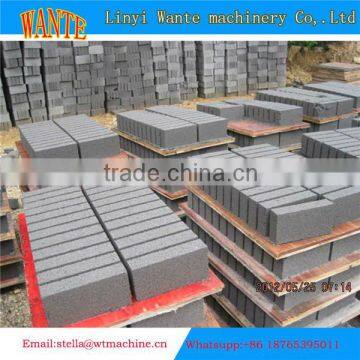

Finished hollow blocks of QT4-15 fully automatic high quality hollow paver bricks block making machine

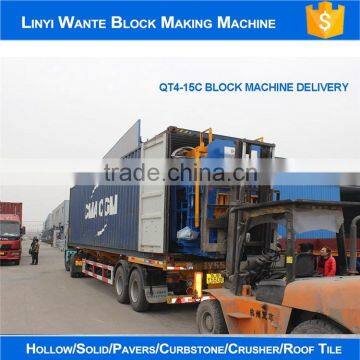

Delivery time of QT4-15 fully automatic high quality concrete hollow paver bricks block amking machine
Thanks for your attention, waiting to talk more with you.
