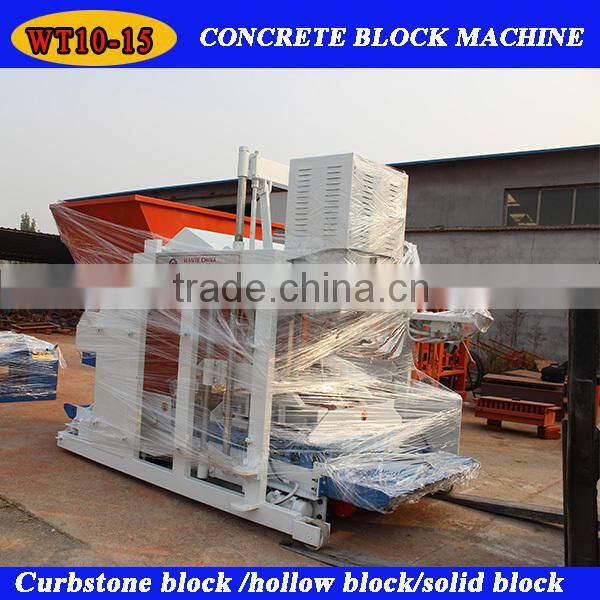

Hot Sell WT10-15 Fully Automatic Egg Laying Movable Concrete Block Making Machine
Introduction

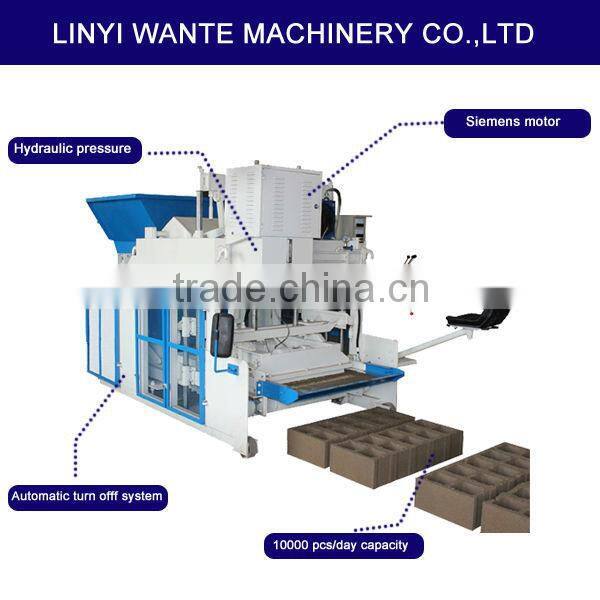

WT10-15 is a fully automatic mobile egg laying movable block making machine of very high productivity. Working together with a mobile palletizing machine, it is possible to make the process of production and packing of elements fully mechanized. Optional superpressing and high frequency vibration functions ensures optimisation of raw materials consumption and increases product quality.

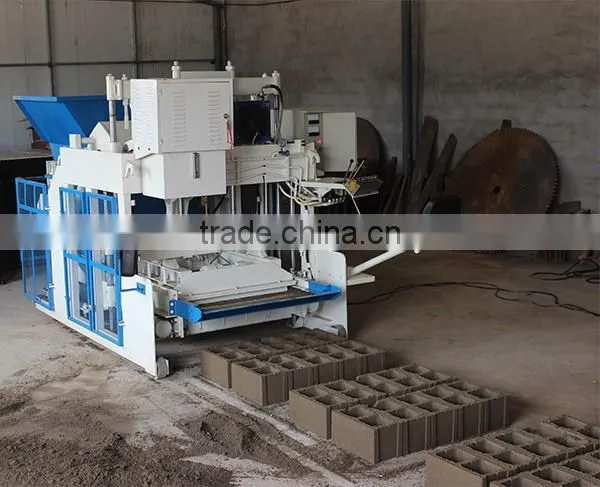

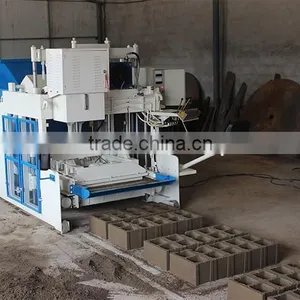

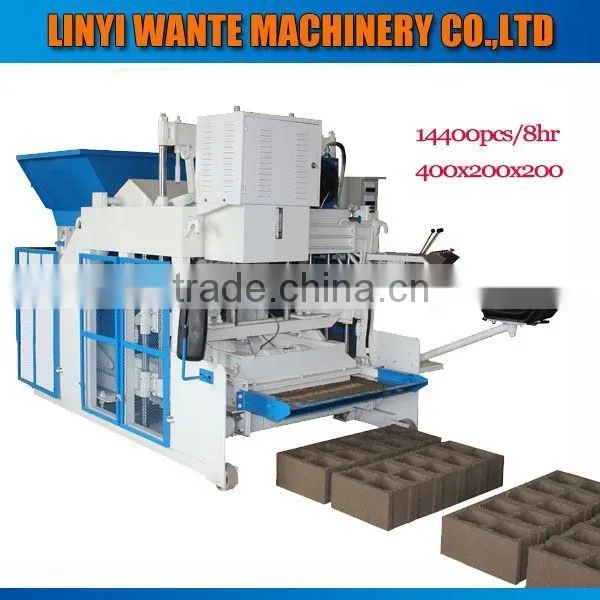

WT10-15 Fully Automatic Egg Laying Movable Concrete Block Making Machine
Technical data | |
Overall dimension | 3150*1800*2400mm |
Demold method | Hydraulic |
Turning method | Hydraulic |
Hydraulic system pressure | 16-20Mpa |
Excitation frequency | 3200Hz |
Total power | 16KW |
Total mass | 4200KG |
Molding cycle | 10-15S |
Molding | 10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity | 12000Pcs/ 8h |
Types of bricks can be made | 390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method | Automatically move and hydraulic steering |
Excitation way | Three-dimensional box excitation |
Raw material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Size(LxWxh) | Pcs/Hr | Pcs/Hr | Pcs/8Hr |
| 400x100x200 | 16 | 3840 | 30720 |
| 400x150x200 | 12 | 2880 | 23040 |
| 400x200x200 | 10 | 2400 | 19200 |
| 400x250x200 | 6 | 1440 | 11520 |
PLD 1200 Batching Machine
JS750 Mixer

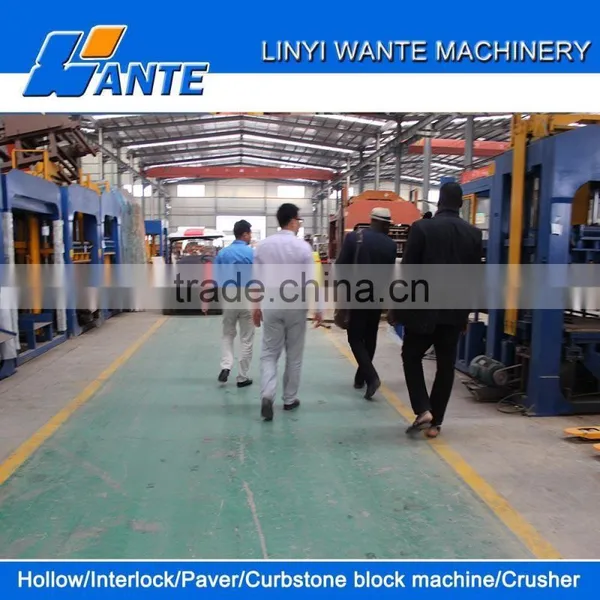

Big Capacity Photos in our factory

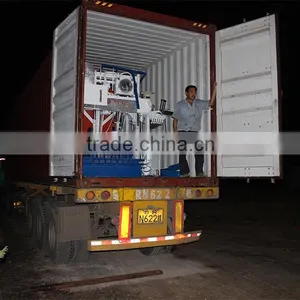

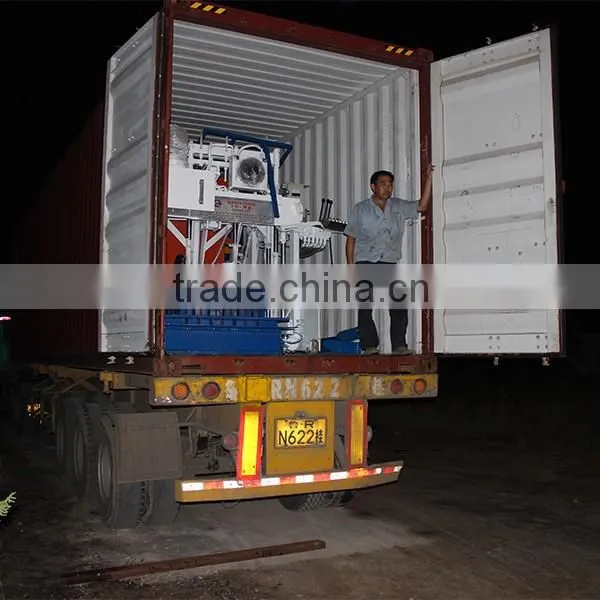

Delivery photos
About us
suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel. |
adjustment, training operators and finishing the check and accept together with you. |
to customers.In addition, we provide one year warrantee to make sure your machine runs consistently. |
