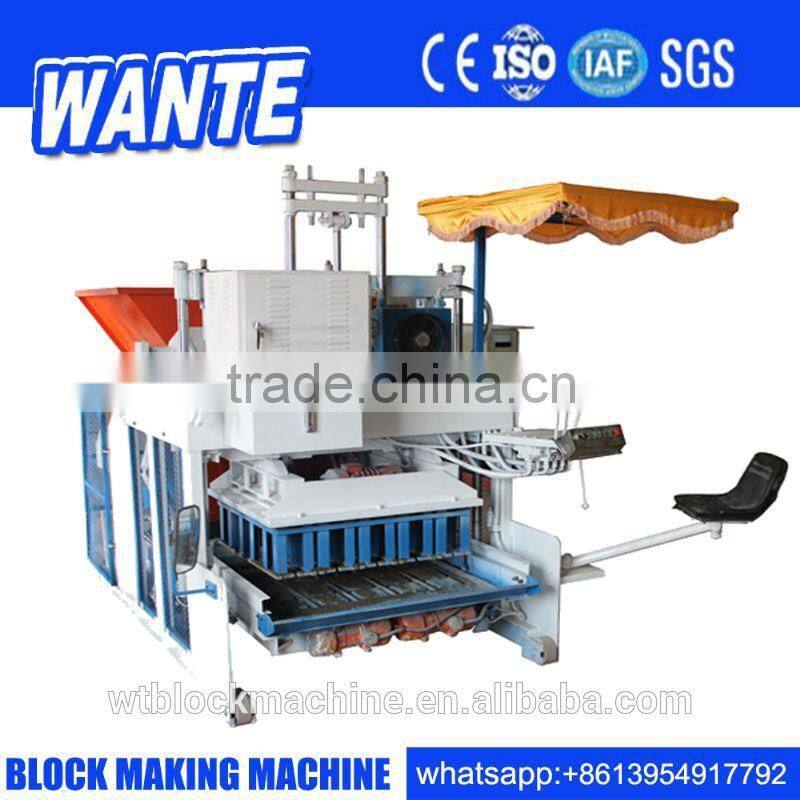

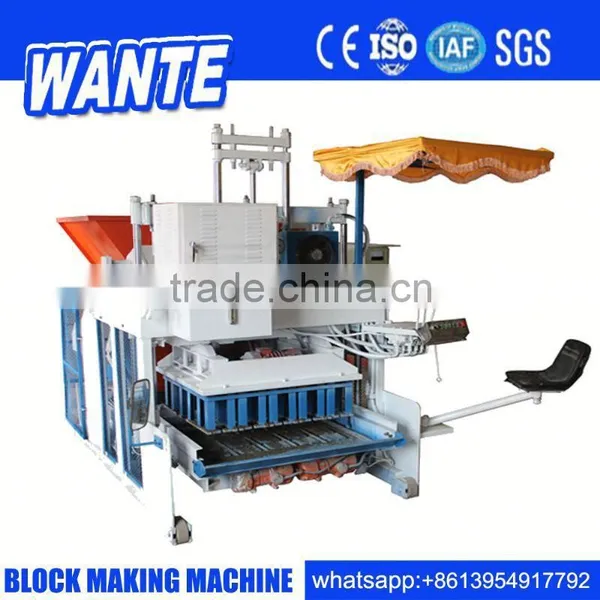

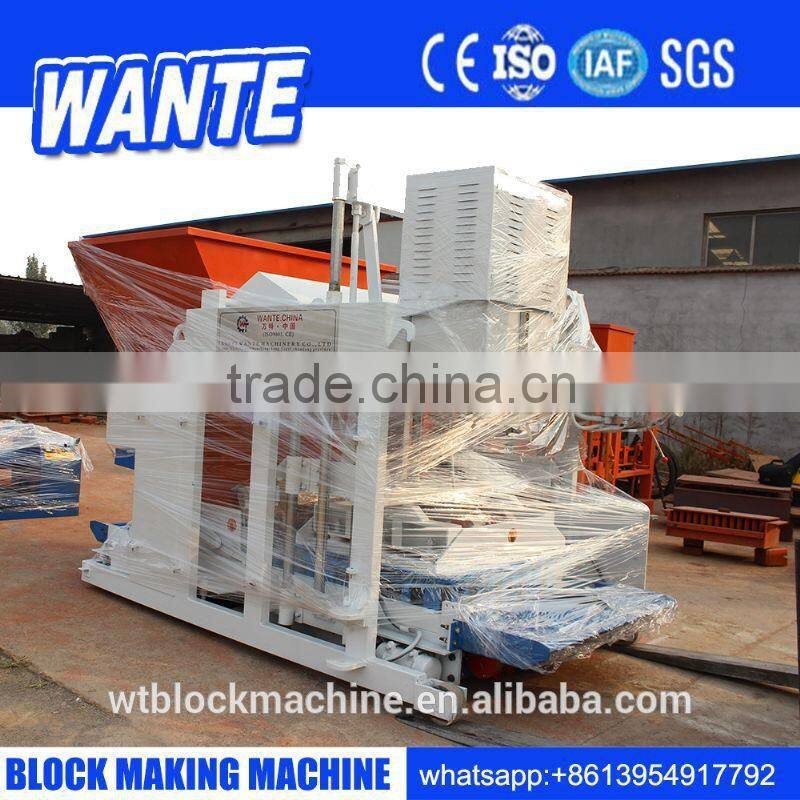

WT10-15 Mobile type brick making tools
WT10-15 is a fully automatic mobile block making machine of very high productivity.
Working together with a mobile palletizing machine, it is possible to make the process of production and packing of elements fully mechanized. Optional superpressing and high frequency vibration functions
ensures optimisation of raw materials consumption and increases product quality.
This is a type of „egg-laying” machine which means that it moves on a concrete flat floor and shapes and leaves the fresh formed elements behind it.
Thanks to easy exchange of moulds it is possible to produce wide range of different elements.

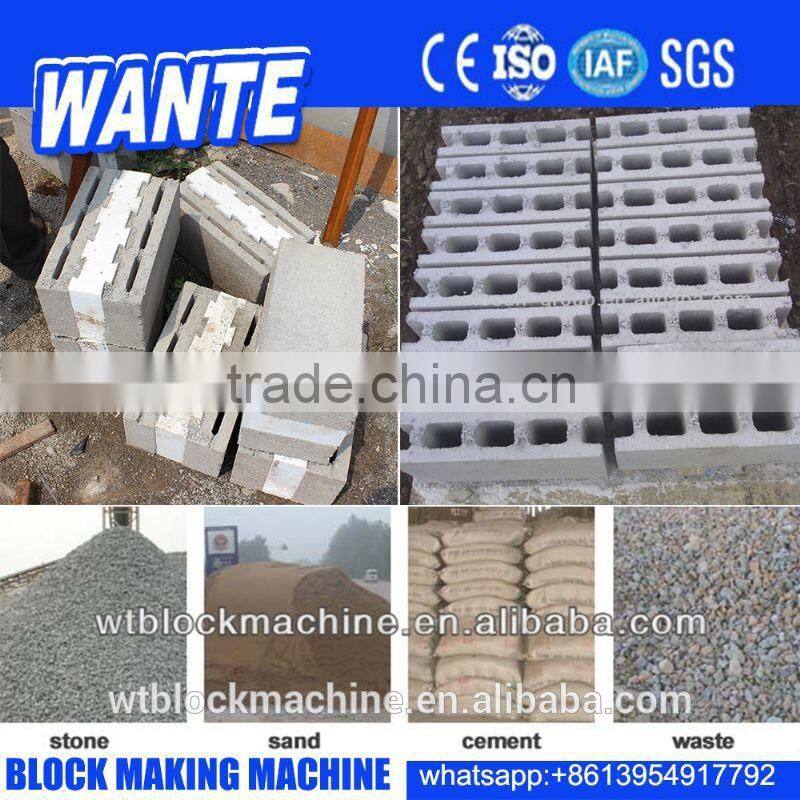

For example: hollow blocks, ceiling, floor blocks, solid blocks, kerb stones, lawn borders.
WT10-15 Mobile type brick making tools Specification
Technical data | |
Overall dimension |
3150*1800*2400mm |
Demold method |
Hydraulic |
Turning method |
Hydraulic |
Hydraulic system pressure |
16-20Mpa |
Excitation frequency |
3200Hz |
Total power |
16KW |
Total mass |
4200KG |
Molding cycle |
10-15S |
Molding |
10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity |
12000Pcs/ 8h |
Types of bricks can be made |
390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method |
Automatically move and hydraulic steering |
Excitation way |
Three-dimensional box excitation |
Raw material |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
WT10-15 Mobile type brick making tools Capacity table
No. |
Block photo |
Block size |
Pcs/mould |
Pcs/hour |
Pcs/day |
1 |
|
400x200x200mm |
10 |
2000-2400 |
16000-19200 |
2 |
|
400x150x200mm |
14 |
2800-3360 |
22400-26880 |

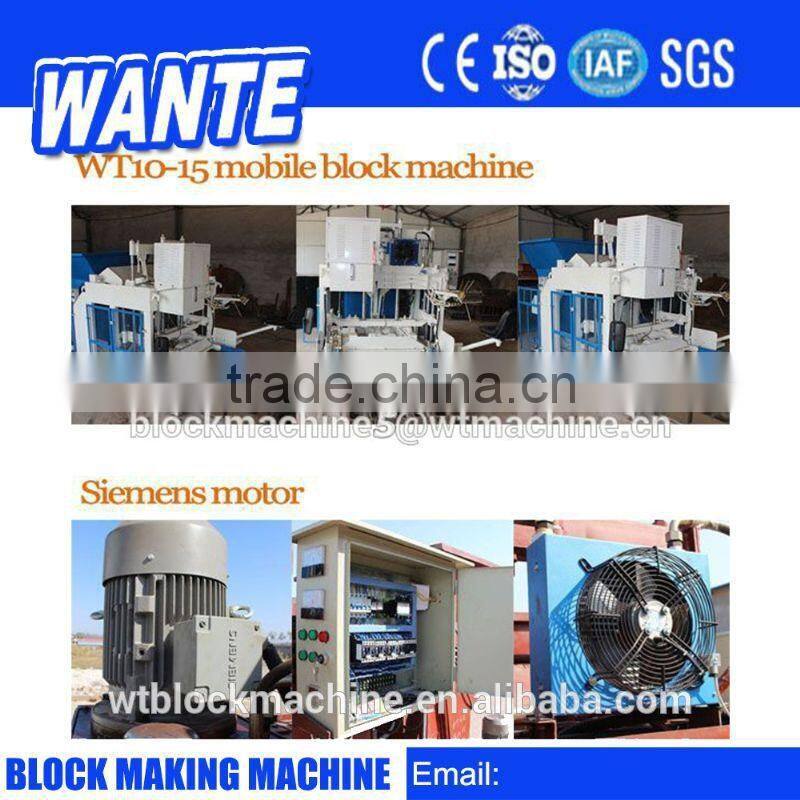

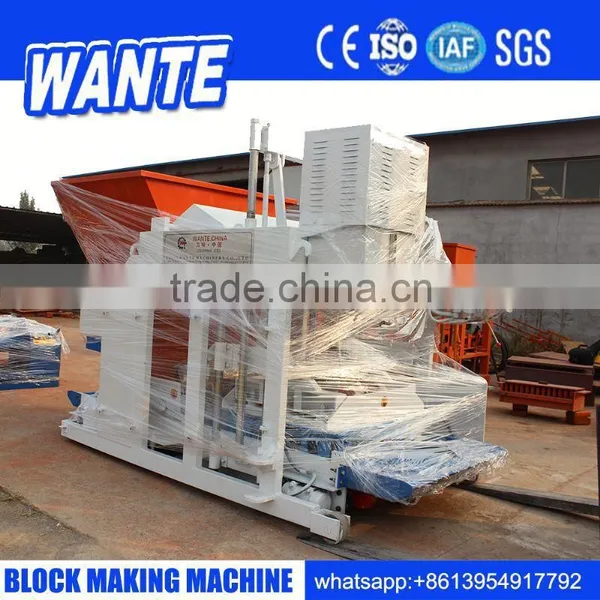

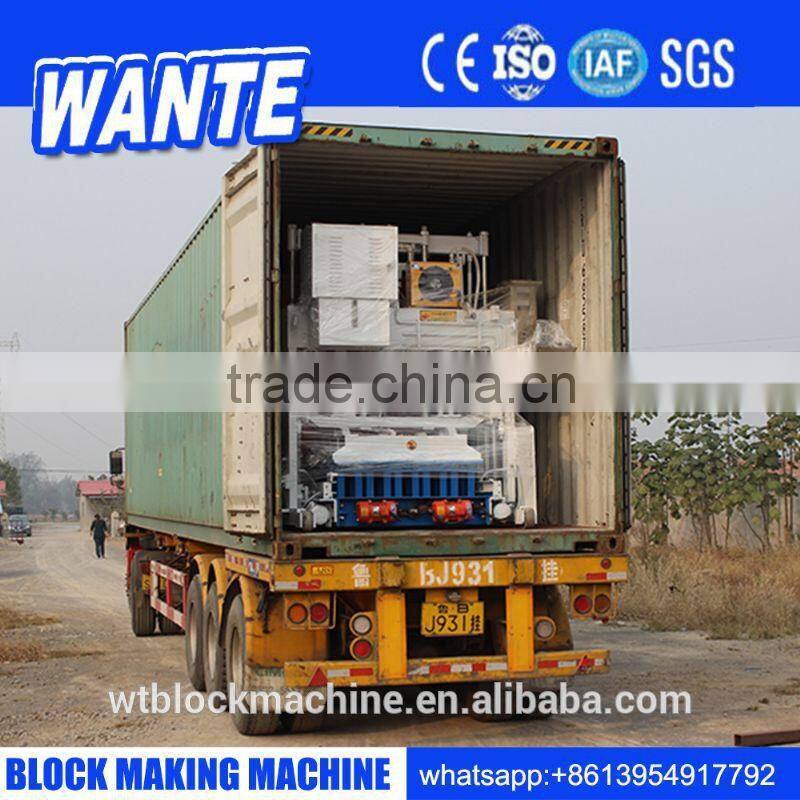

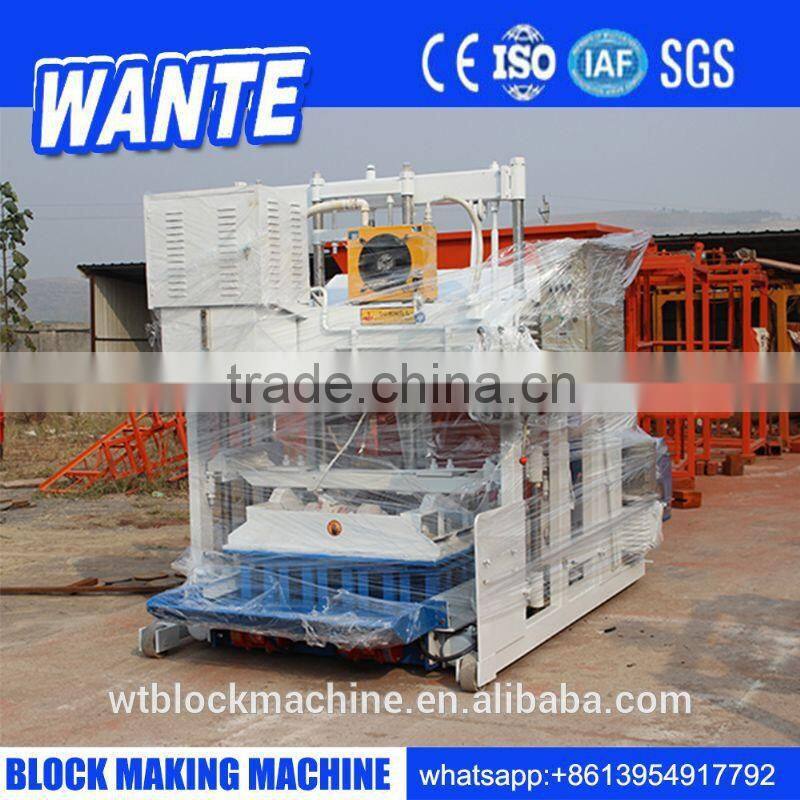

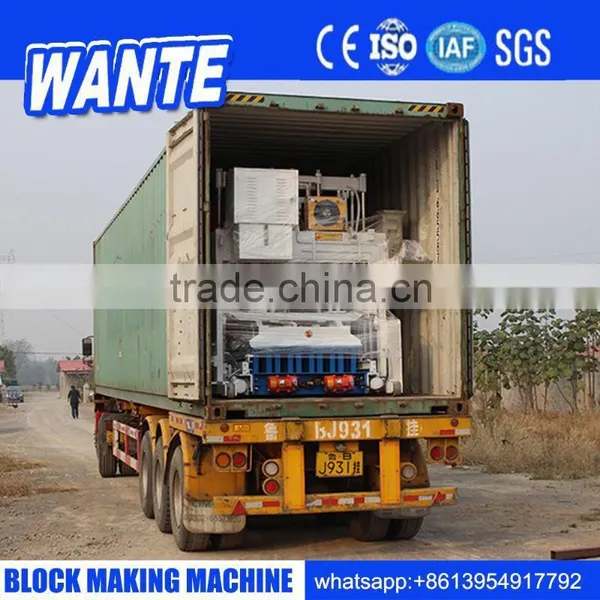

WT10-15 Mobile type brick making tools photos
