2015 Linyi Wante Hot Sell WT10-15 Fully Automatic Used Egg Laying Movable Concrete Block Making Machine price for sale
- 350 Set / Sets per Month
- QING DAO
- T/T Credit Card
- Hot Sell WT10-15 Fully Automatic Egg Laying Movable Concrete Block Making Machine price for sale
- Hot Sell WT10-15 Fully Automatic Egg Laying Movable Concrete Block Making Machine
- 6000 pcs/mould mobile block making machine in Uruguay
- WT10-15 Mobile concrete hollow block making machine price
- WT10-15 Mobile type brick making machine german manufacturers
- WT10-15 Hydraulic Mobile Eps+Concrete block kerb making machine
Product Details
Condition: | New | Type: | Curbstone Block Machine | Brick Raw Material: | Cement |
Processing: | Brick Cutting Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 19200/8Hr | Place of Origin: | Shandong, China | Brand Name: | WANTE |
Model Number: | WT10-15 | Voltage: | 220V/380V (adjustable) | Power: | 20.5KW |
Dimension(L*W*H): | 3150x1850x2500mm | Certification: | ISO9001&2008 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude package
Product Description

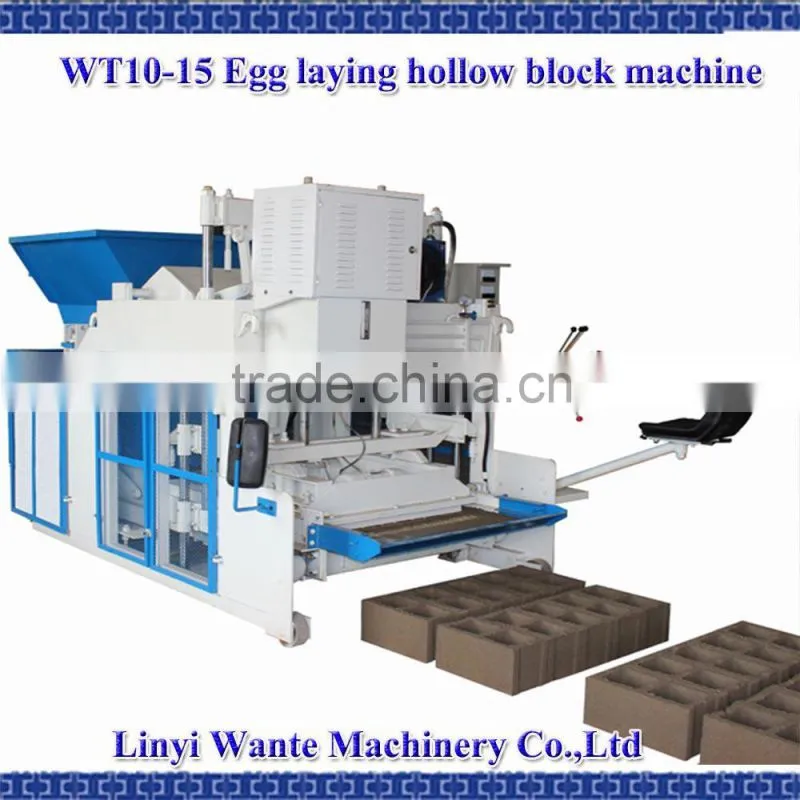

Hot Sell WT10-15 Fully Automatic Egg Laying Movable Concrete Block Making Machine
Features of WT10-15 egg laying concrete block makinfgmachine
1.Advanced controlling system
WT10-15 manual hydraulic control.we use perfect
hydraulic valve,it is safe and easy operation
2.Powerful hydraulic pressing system
WT10-15 with hydraulic pressing,combining with the
poweful mold vibration.can achieve more than 25 Mpa pressure.the block density will be perfect.
3.Fast and quick feeding system
WT10-15 feeding system mounter with multirow of stirring forkscan quickly and evenly discharge the materials into
the molding box.
4.Multiply function and high efficiency
According to the production, change different moulds.WT10-15 can make all kinds of blocks.
standard bricks, cellular bricks
5.Big capacity
Smalle investment but get a big capacity,the machine can produce more than 12000 pcs/day with 400x200x200MM block.its capacity equal to the stationary machine, but its price is lower.
Information of WT10-15 Fully Automatic Egg Laying Movable Concrete Block Making Machine
Technical data | |
Overall dimension | 3150*1800*2400mm |
Demold method | Hydraulic |
Turning method | Hydraulic |
Hydraulic system pressure | 16-20Mpa |
Excitation frequency | 3200Hz |
Total power | 16KW |
Total mass | 4200KG |
Molding cycle | 10-15S |
Molding | 10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity | 12000Pcs/ 8h |
Types of bricks can be made | 390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method | Automatically move and hydraulic steering |
Excitation way | Three-dimensional box excitation |
Raw material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Size(LxWxh) | Pcs/Hr | Pcs/Hr | Pcs/8Hr |
400x100x200 | 16 | 3840 | 30720 |
400x150x200 | 12 | 2880 | 23040 |
400x200x200 | 10 | 2400 | 19200 |
400x250x200 | 6 | 1440 | 11520 |

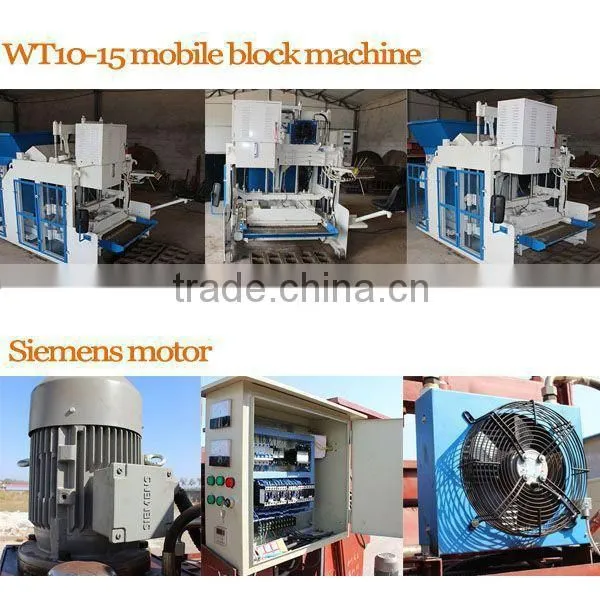

Parts of WT10-15 Egg Laying Making Machine
PLD 1200 Batching Machine of WT10-15 egg laying comcrete block machine
JS750 Mixer of WT10-15 egg laying concrete block machine

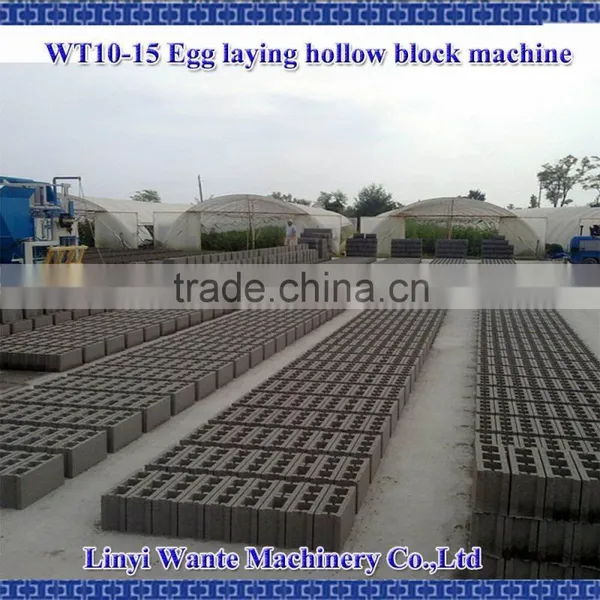

Big Capacity Photos in our factory
Delivery photos about WT10-15 eff laying concrete block machine
Capacity Table of WT10-15 egg laying concrete block making machine
No. | Block photo | Block size | Pcs/mould | Pcs/hour | Pcs/day |
1 | 400x200x200mm | 10 | 2000-2400 | 16000-19200 | |
2 | 400x150x200mm | 14 | 2800-3360 | 22400-26880 |
About us
suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel. |
adjustment, training operators and finishing the check and accept together with you. |
to customers.In addition, we provide one year warrantee to make sure your machine runs consistently. |
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.
Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.
We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
