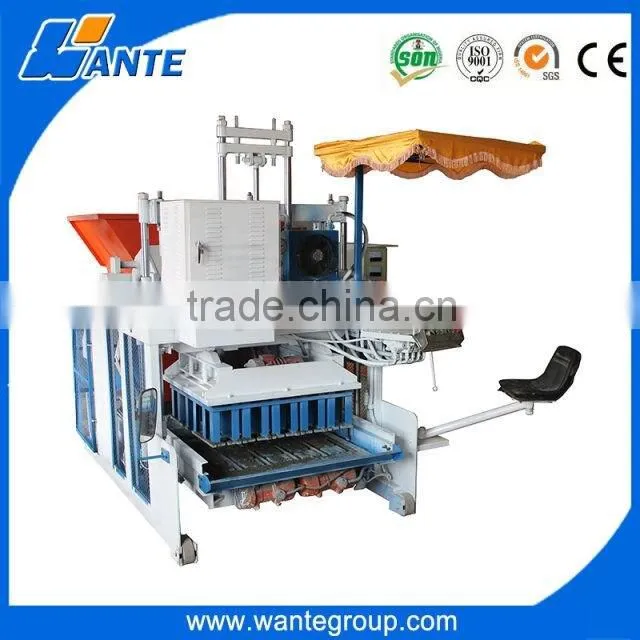

WT10-15 Hollow Movable Concrete Block Making Machine price for sale
Features of WT10-15 egg laying concrete block making machine
1.Advanced controlling system
WT10-15 manual hydraulic control.we use perfect
hydraulic valve,it is safe and easy operation
2.Powerful hydraulic pressing system
WT10-15 with hydraulic pressing,combining with the
poweful mold vibration.can achieve more than 25 Mpa pressure.the block density will be perfect.
3.Fast and quick feeding system
WT10-15 feeding system mounter with multirow of stirring forkscan quickly and evenly discharge the materials into
the molding box.
4.Multiply function and high efficiency
According to the production, change different moulds.WT10-15 can make all kinds of blocks.
standard bricks, cellular bricks
5.Big capacity
Smalle investment but get a big capacity,the machine can produce more than 12000 pcs/day with 400x200x200MM block.its capacity equal to the stationary machine, but its price is lower.
Information of WT10-15 Fully Automatic Egg Laying Movable Concrete Block Making Machine
Technical data | |
Overall dimension |
3150*1800*2400mm |
Demold method |
Hydraulic |
Turning method |
Hydraulic |
Hydraulic system pressure |
16-20Mpa |
Excitation frequency |
3200Hz |
Total power |
16KW |
Total mass |
4200KG |
Molding cycle |
10-15S |
Molding |
10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity |
12000Pcs/ 8h |
Types of bricks can be made |
390*240*190/390*190*190/390*115*190 All kinds of moulds can be made by customers' drawings |
Moving method |
Automatically move and hydraulic steering |
Excitation way |
Three-dimensional box excitation |
Raw material |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Size(LxWxh) | Pcs/Hr | Pcs/Hr | Pcs/8Hr |
| 400x100x200 | 16 | 3840 | 30720 |
| 400x150x200 | 12 | 2880 | 23040 |
| 400x200x200 | 10 | 2400 | 19200 |
| 400x250x200 | 6 | 1440 | 11520 |
Parts of WT10-15 Egg Laying Making Machine
PLD 1200 Batching Machine of WT10-15 egg laying comcrete block machine
JS750 Mixer of WT10-15 egg laying concrete block machine
Full Line of WT10-15 automatic egg laying block making machine
Big Capacity Photos in our factory
Delivery photos about WT10-15 eff laying concrete block machine
Capacity Table of WT10-15 egg laying concrete block making machine
No. |
Block photo |
Block size |
Pcs/mould |
Pcs/hour |
Pcs/day |
1 |
|
400x200x200mm |
10 |
2000-2400 |
16000-19200 |
2 |
|
400x150x200mm |
14 |
2800-3360 |
22400-26880 |
About us
suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel. |
adjustment, training operators and finishing the check and accept together with you. |
to customers.In addition, we provide one year warrantee to make sure your machine runs consistently. |
