WT Series high quality symons cone crusher
Stone crusher, Aggregate Crusher, Rock crusher, Jaw Crusher, Impact Crusher, Cone Crusher, Hammer Crusher, Roll Crusher, Crushing Line, Crushing equipment spare parts
WT Series high quality symons cone crusher

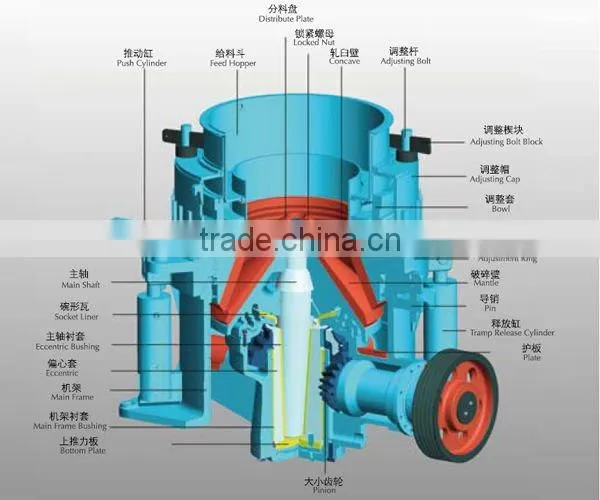

cone crusher of this series is suitable for crushing various mid-hard and above mid-hard ores and rocks .This crusher has the advantage of reliable construction , high productivty, easy adjustment and less cost in operation . The spring release system of crusher acts as an overload protection system that allows foreign iron pieces to pass through the crushing chamber without damages to the crusher . It uses the two kinds of sealed forms : dry oil and water to make rock powder if made plaster stone and engine oil separated , assuring reliable performance . The type of crushing chamber depends upon the size of feed and fineness of the crushed product . The standard type is applied to medium crushing , the medium type is applied to medium or fine crushing and the shorthead type is applied to fine crushing .
Specification |
Dia of cone at big end (mm) |
Width of feed opening(mm) |
Adjusted scope of output(mm) |
Yield (t/h) |
Speed of eccentric shaft (r/min) |
Motor (kw) |
Pressure of spring(kn) |
Dimention LWH (mm) |
Weight (t) |
||
PYB900 |
900 |
135 |
15-50 |
50-90 |
330 |
55 |
700 |
3050×1640×2350 |
10.18 |
|
|
PYZ900 |
900 |
70 |
5-20 |
20-65 |
330 |
55 |
700 |
3050×1640×2350 |
10.19 |
|
|
PYD900 |
900 |
50 |
3-13 |
15-50 |
330 |
55 |
700 |
3050×1640×2350 |
10.27 |
|
|
PYB1200 |
1200 |
170 |
20-50 |
110-200 |
300 |
110 |
1500 |
4150×2300×2980 |
24.7 |
|
|
PYZ1200 |
1200 |
115 |
8-26 |
50-150 |
300 |
110 |
1500 |
4150×2300×2980 |
25 |
|
|
PYD1200 |
1200 |
60
|
3-15 |
18-105 |
300 |
110 |
1500 |
4150×2300×2980 |
25.6 |
|
|
WT Series high quality symons cone crusher
WT Series high quality symons cone crusher
WT Series high quality symons cone crusher Photos:
