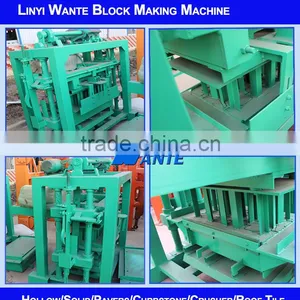

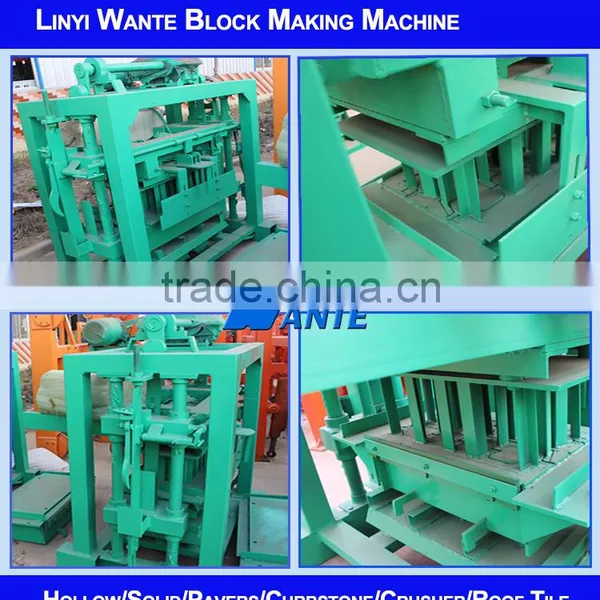

Special beautiful mold interlocking compressed earth block machines

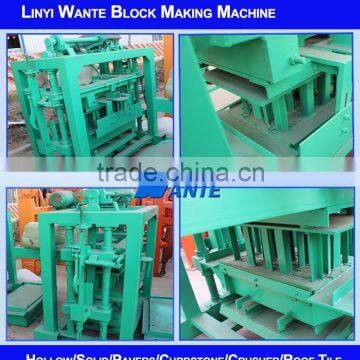

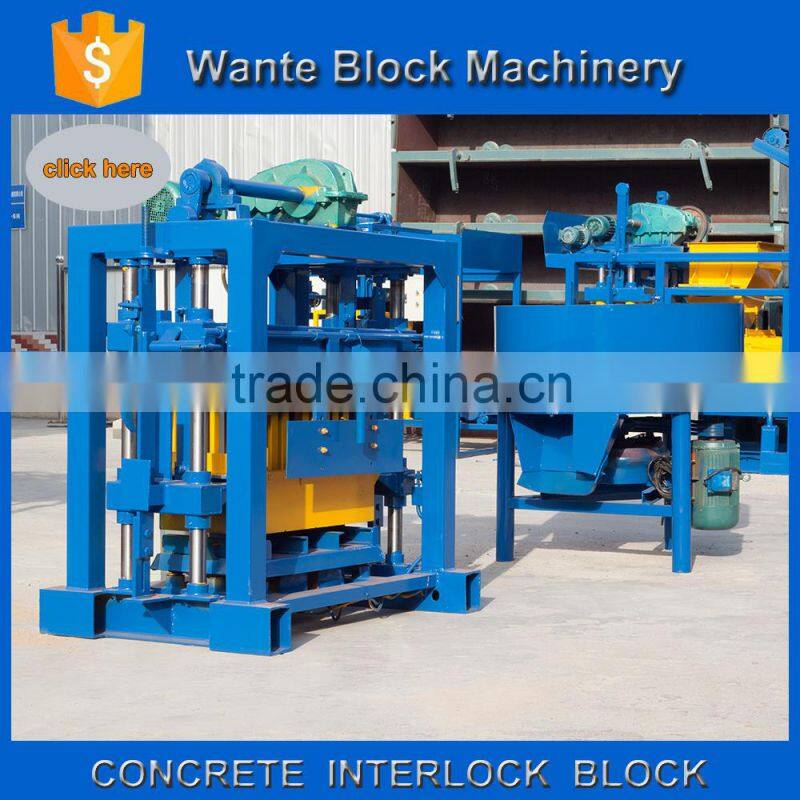

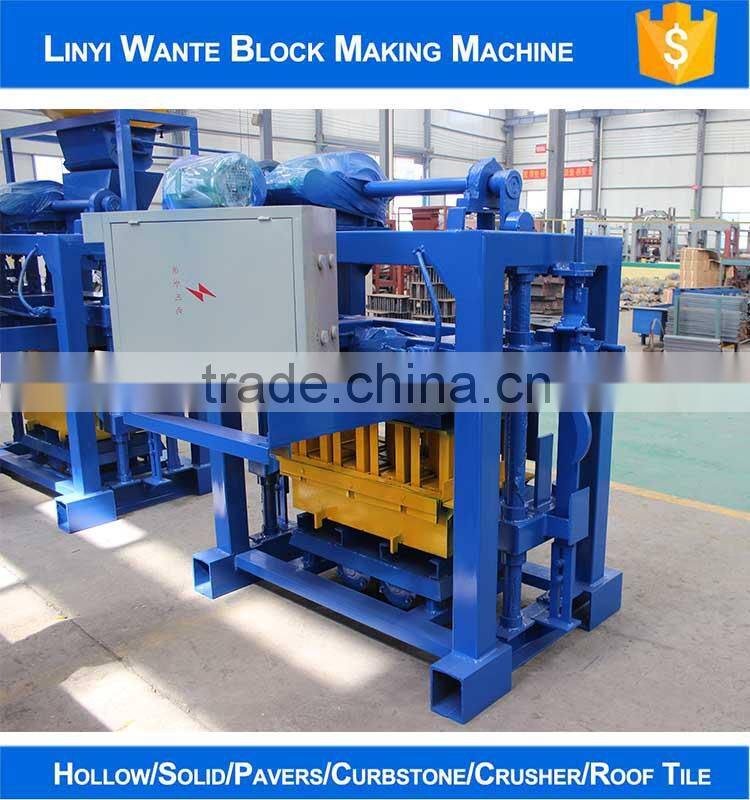

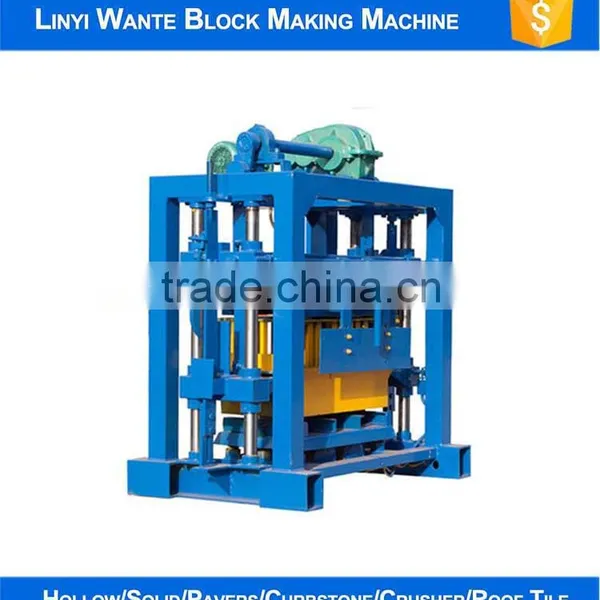

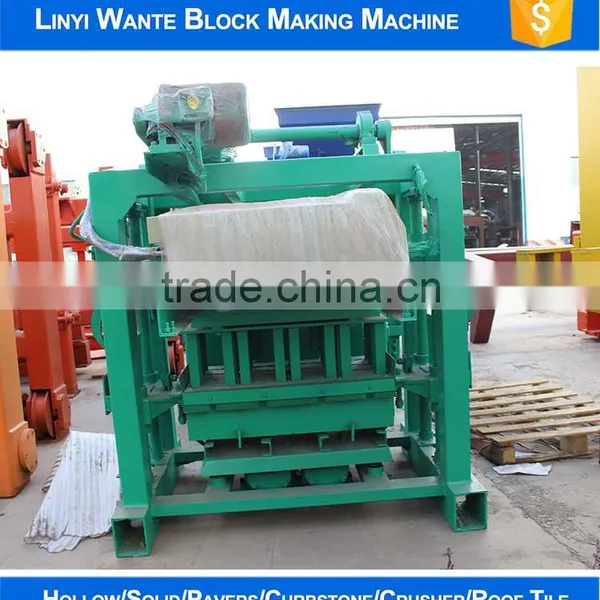

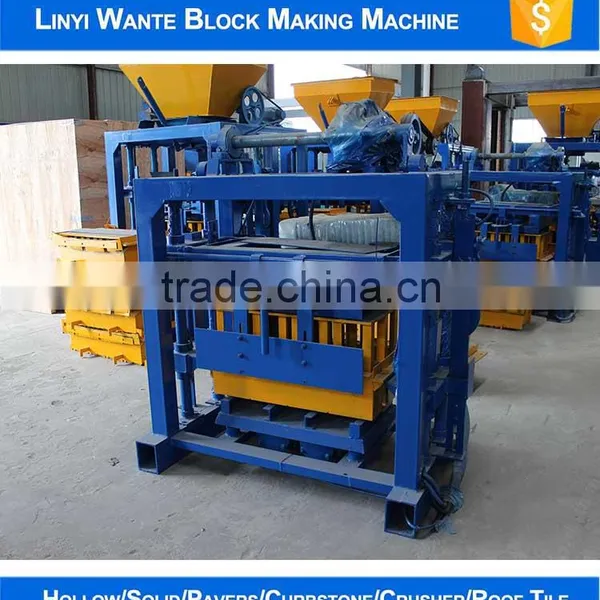

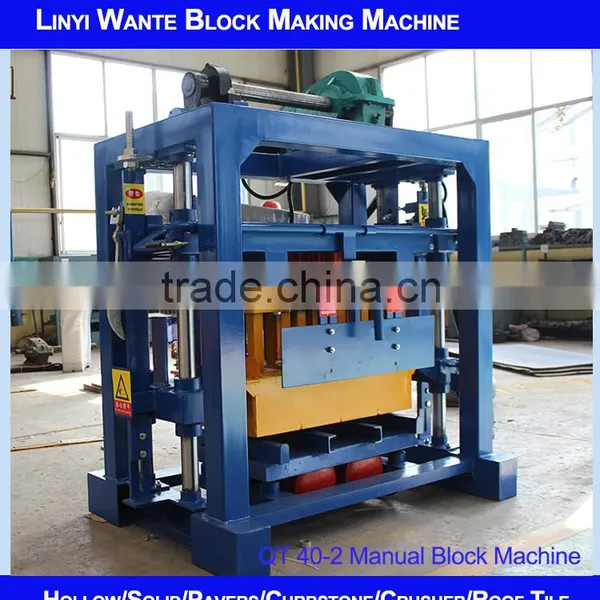

1>brief introduction of QT40-2 interlocking manual block machine line

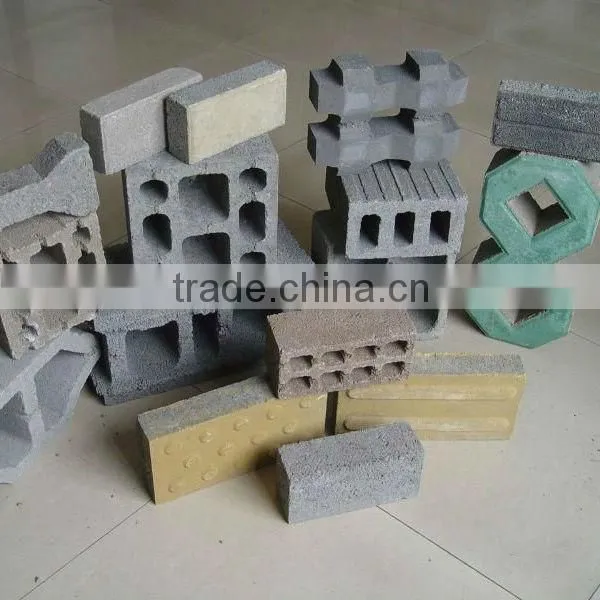

1.As a multi-purpose small scale block machine, exchanging mold can produce normal bricks,
hollow bricks, multi-holes' bricks even paver blocks, interlocking blocks.
2.The small scale block making machine is on the basis of original concrete block machine,
with technological innovation and development.
3.It has rational design, excellent performance, and is equipped with powerful vibration motor.
4.The block is of good quality, large density and high strength.
5. QT40-2 now has special molds which can make special blocks. They can be used in many sepcial building which can make them more beautiful and distinctive.
2>advantages of QT40-2 interlocking manual block machine line
(1)QT40-2 soil brick making machine changing the former one-time-vibration into twice-vibrations of molding core, so, the block density becomes higher, shaping speed quicker and block strength more even.
(2)QT40-2 soil brick making machine can produce many kinds of bricks by changing the mould.
(3)The intensity of bricks that QT40-2 high quality soil brick making machine made is of high quality.
3>technical parameters of QT40-2 interlocking manual block machine line
Main specification and technical parameters | |
Overall size | 1350(L)×1460(W)×1800(H)mm |
Shaping cycle | 40-45 seconds |
Pallet size | 850x450x25mm (bamboo) |
850x450x20mm (bamboo) | |
Vibration frequency | 2800 r.pm |
Upper vibrator | 2.2KW |
Nether vibrator | 4.4kw |
Electricity | 380V/220V/ (adjustable) |
Total weight | 1800 KGS |
4>table capacity of QT40-2 interlocking manual block machine line
No. | Block size | Pcs/mould | Pcs/hour | Pcs/day |
1 | 400x200x200mm | 4 | 450 | 3500-4500 |
2 | 400x150x200mm | 5 | 550 | 4400-5500 |
3 | 400x250x200mm | 5 | 320 | 2560-3200 |
5>raw material of QT40-2 interlocking manual block machine line
1. cement,sand,stone (standard concrete block)
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
River sand | 40% |
Crushed stone | 45% |
Other specify | You can change the proportion depend on your needs. This block is heavy, but strong |
2. cement,slag (light concrete block)
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
slag | 80-90% |
Other specify | You can change the proportion depend on your needs. This block is light, not so strong |

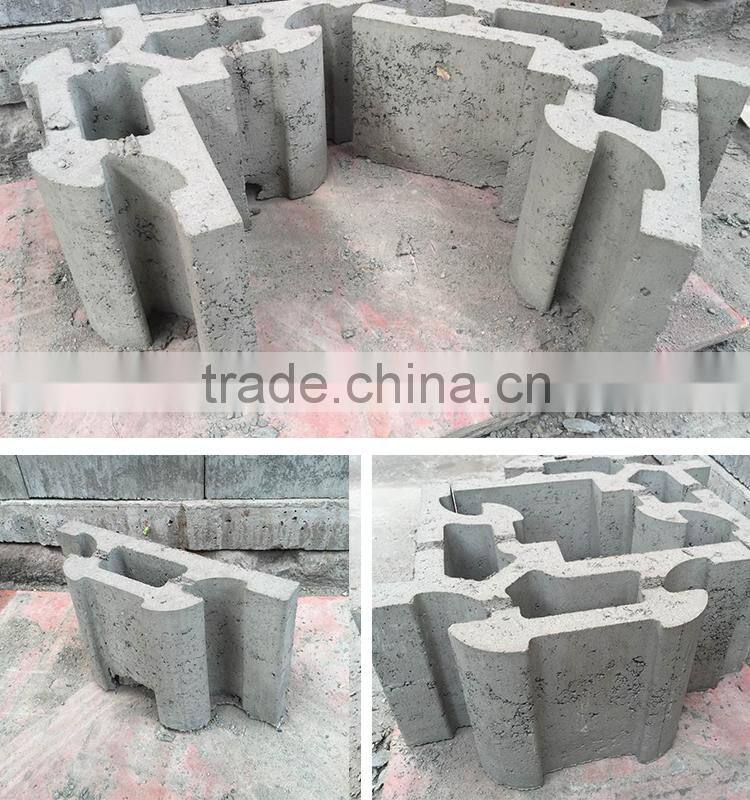

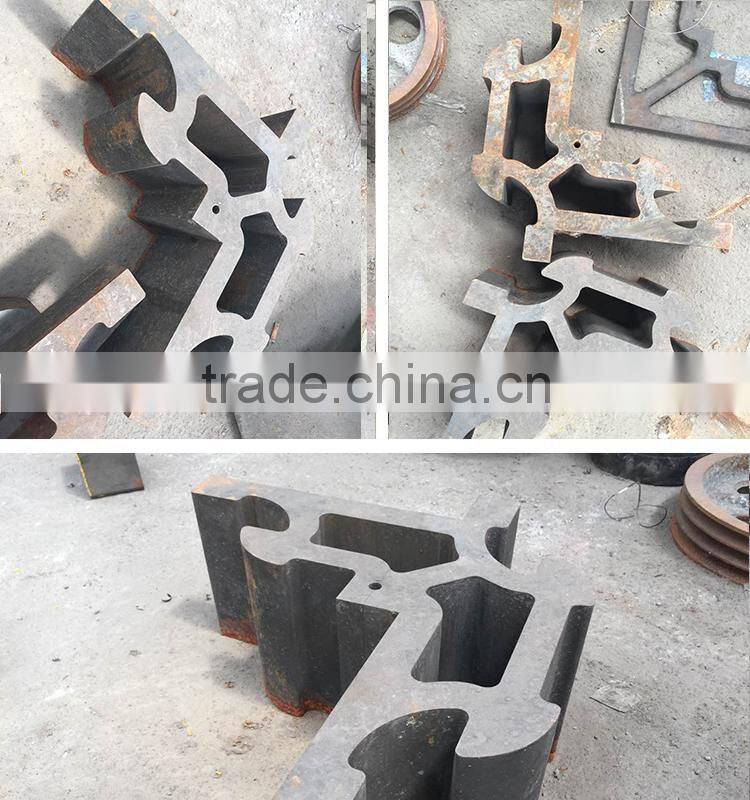

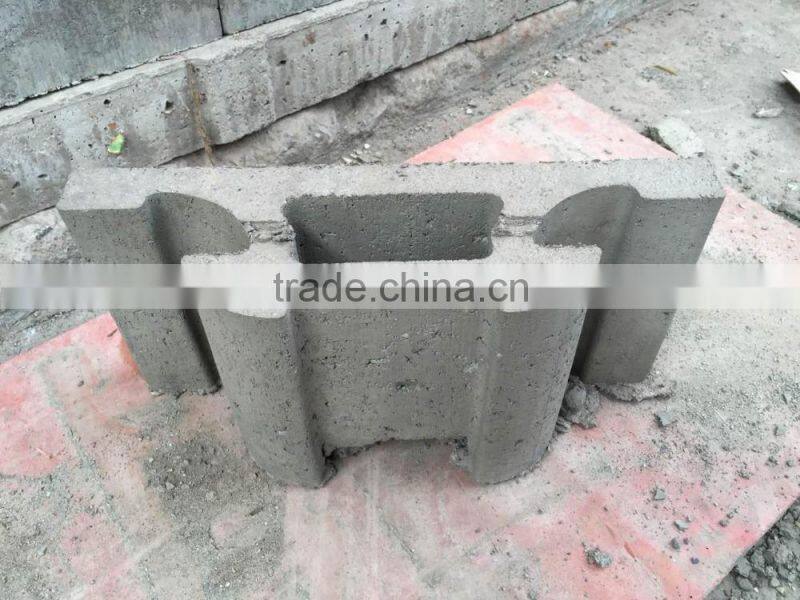

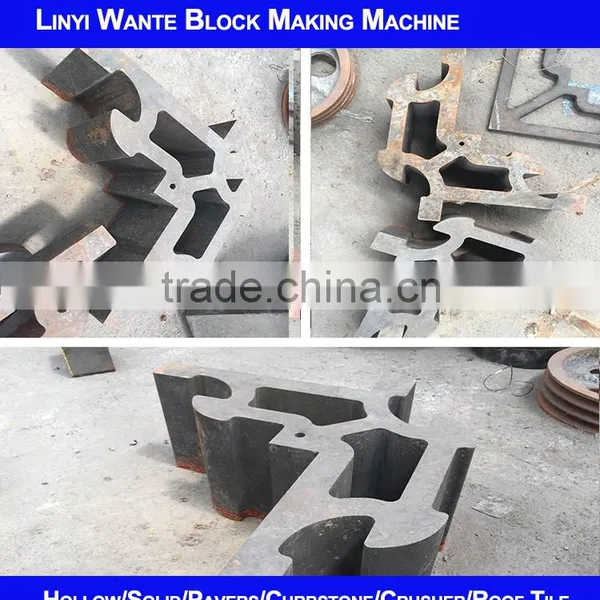

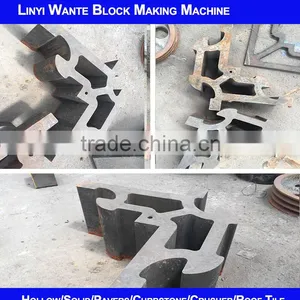

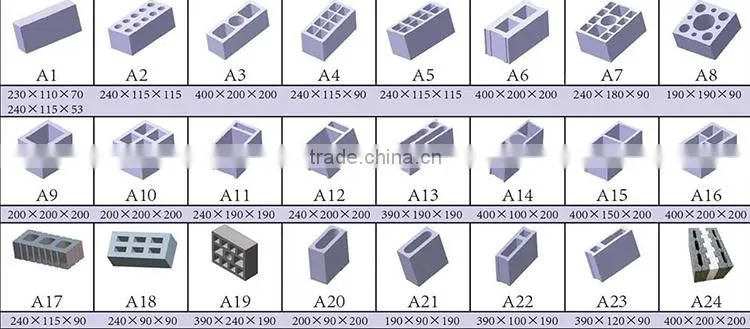

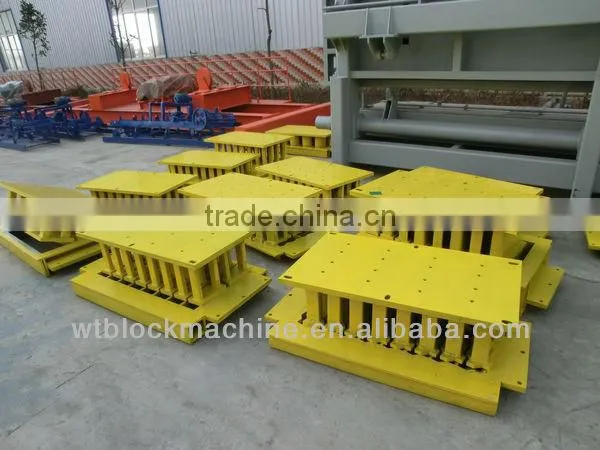

6>special beautiful molds of QT40-2 interlocking manual block machine line

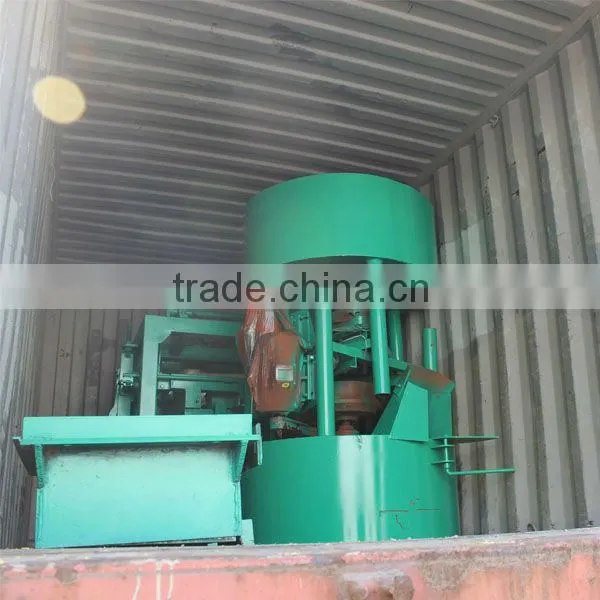

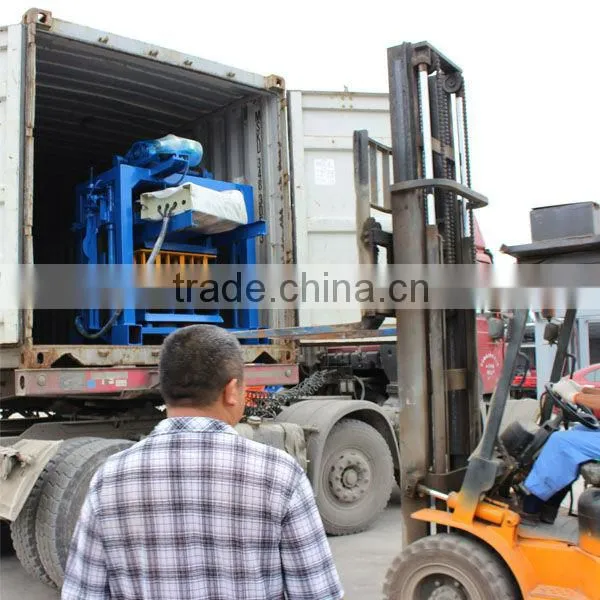

7>delivery loading photos of QT40-2 interlocking manual block machine line
