WT4-15C Block Cement Brick Making Machine Business Opportunity

WT4-15C Block Cement Brick Making Machine Business Opportunity thumbnail-1
WT4-15C Block Cement Brick Making Machine Business Opportunity thumbnail-2
WT4-15C Block Cement Brick Making Machine Business Opportunity thumbnail-3
WT4-15C Block Cement Brick Making Machine Business Opportunity thumbnail-4
WT4-15C Block Cement Brick Making Machine Business Opportunity photo-1
WT4-15C Block Cement Brick Making Machine Business Opportunity photo-2
WT4-15C Block Cement Brick Making Machine Business Opportunity photo-3
WT4-15C Block Cement Brick Making Machine Business Opportunity photo-4
US$ 18,400 - 18,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Linyi Wante Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Automatic
Place of Origin Shandong, China
Brand Name WANTE
Model Number WT4-15C
Voltage 380V/220V/ (adjustable)
Power(W) 55KN
Dimension(L*W*H) 3500x2100x2550mm
Weight 5000KGS
Features NEW
Certification ISO9001&2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

  WT4-15C block cement brick making machine business opportunity

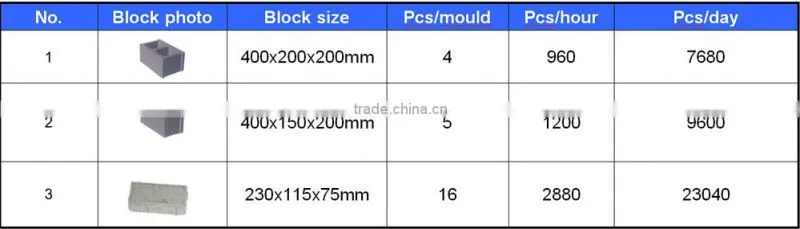

Technical parameters
WT4-15C block cement brick making machine business opportunity

Cement silo

Length

11M

capacity

50T

Diameter

2.15M

Total weight

5T

 WT4-15C block cement brick making machine business opportunity

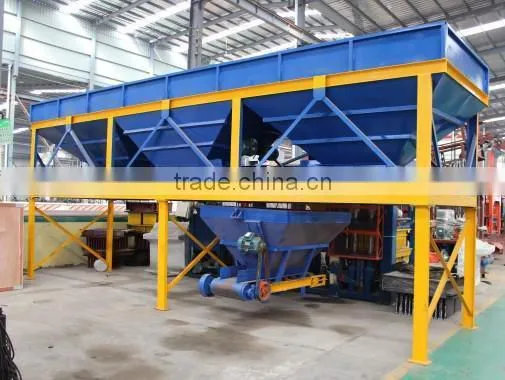

PLD800 batching machine

Weigh bucket capacity  (L)

800

Productivity   m3/h)

48

Batching precision

±1%

Max weighing capacity  (kg)

3000

Number of material matching

2

Work loading height   (mm)

3000

Feeding belt speed   (m/s)

1

Power   (kw)

12

Gross weight   (kg)

3000

Dimension  (mm)

5800*2200*3500

 WT4-15C block cement brick making machine business opportunity





JS500 mixer

Charging Capacity  (L)

800

Discharging Capacity (L)

500

Production Capacity  (m3/h)

≥25

Max Aggregate Diameter mm

≤40/60

Cycle Time  (s)

72

Stirring Vane

Rev Speed  (r/min)

31



Quantity

2×7

Stirring Motor

Model





Power  (KW)

18.5

Lifting Motor

Model





Power  (KW)

5.5

Pump Motor

Model





Power  (KW)

0.75

Dimensions ( mm)

Travel State

3030×2520×2880



Operation State

5025×3100×5680

Total weight (Kg)

3500

 WT4-15C block cement brick making machine business opportunity

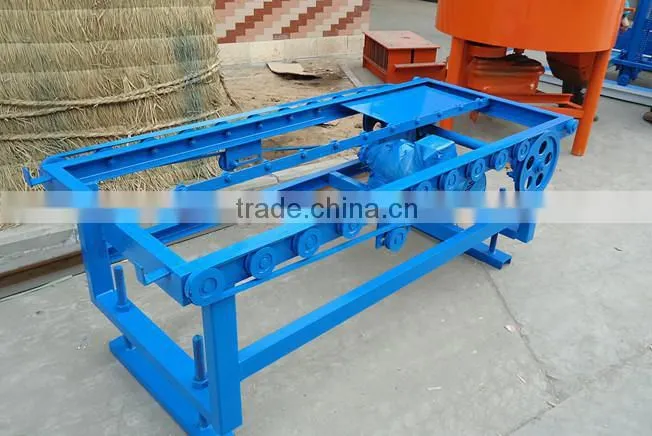

Conveyor belt

Belt width (M)

6

Belt length (M)/KW

6/2.2

Belt speed (M/S)

2

 WT4-15C block cement brick making machine business opportunity

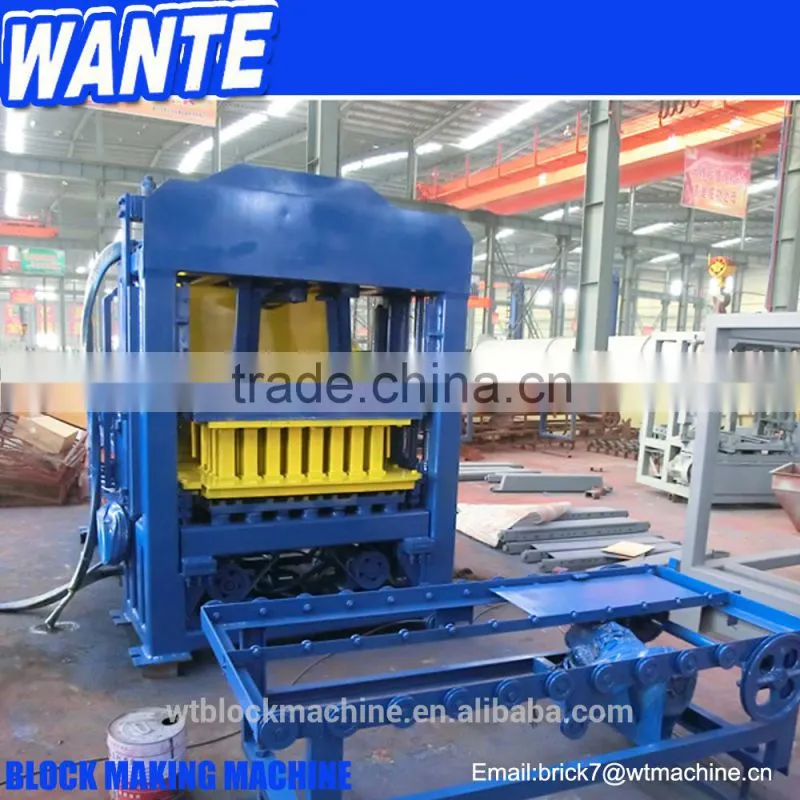

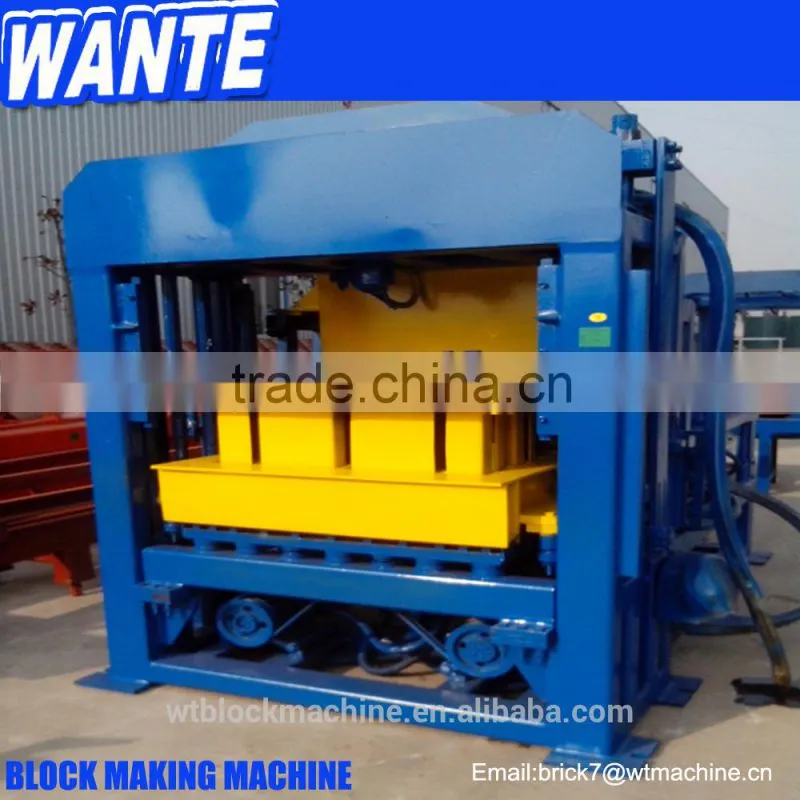

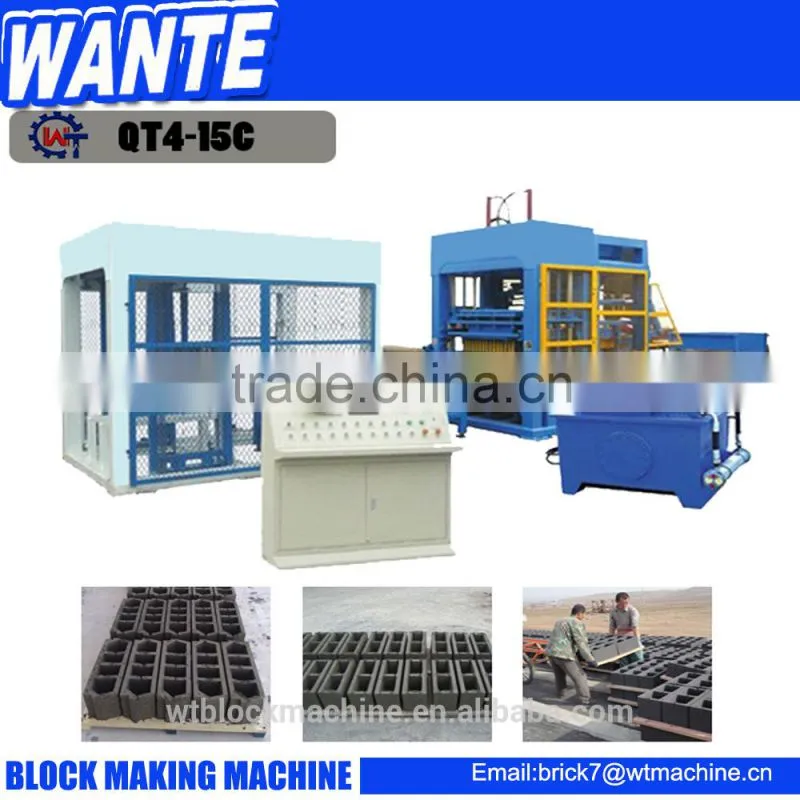

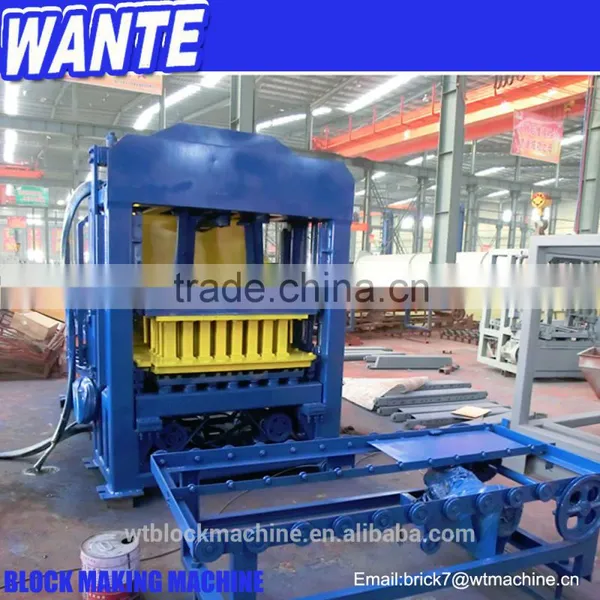

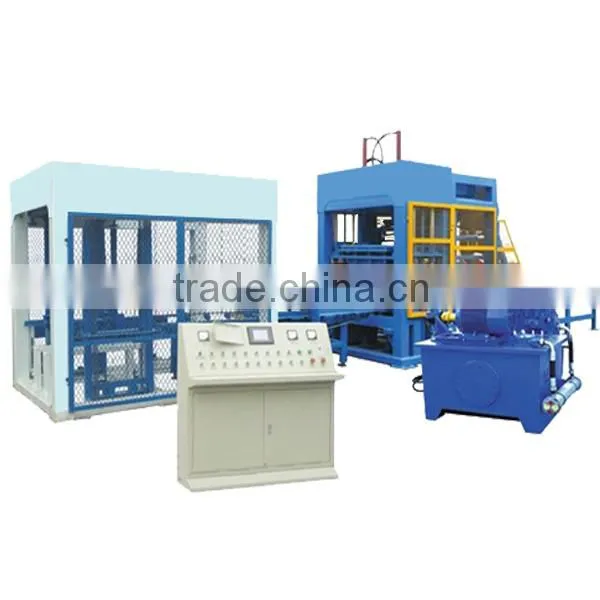

QT4-15C block machine

Overall size

3500x2100x2550mm

Shaping cycle

15-18 seconds

Pallet size

1010x550x25mm (bamboo)

1010x550x25mm (plastic)

Vibration frequency

Max.4500 R/Min

Electricity

380V/220V/ (adjustable)

Vibration force

55KN

Total weight

5000 KGS

 WT4-15C block cement brick making machine business opportunity

Block sweeper

Overall size

2100(L)×1200(W)×600(H)mm

KW

0.75

Electricity

380V/220V/ (adjustable)

Total weight

230KGS
WT4-15C block cement brick making machine business opportunity

Stacker machine

Overall size

2100(L)×1800(W)×2300(H)mm

Power (KW)

3KW

Electricity

380V/220V/ (adjustable)

Stacker layer

3 floor

Speed

0.5M/S

Total weight

2000KGS





Raw material

This is the most popular proportion in making block making machine:



1.cement,sand,stone (standard concrete block)

Raw Materials

Quantity per piece

Water

3%

Cement

9-12%

River sand

40%

Crushed stone

45%

Other specify

You can change the proportion depend on your needs. This block is heavy,but strong



2.cement,slag (light concrete block)

Raw Materials

Quantity per piece

Water

3%

Cement

9-12%

slag

80-90%

Other specify

You can change the proportion depend on your needs. This block is light, not so strong



3.cement,sand,stone,slag

Raw Materials

Quantity per piece

Water

3%

Cement

9-12%

Sand

10-20%

Stone

30-40%

slag

25-50%

Other specify

You can change the proportion depend on your needs. This block is a little light, strong





Product Description







WT4-15C block cement brick making machine business opportunityWT4-15C block cement brick making machine business opportunityWT4-15C block cement brick making machine business opportunityWT4-15C block cement brick making machine business opportunity

WT4-15C block cement brick making machine business opportunity





WT4-15C block cement brick making machine business opportunity





















































































































Order process

STEP 1:Confirm machine details, like block mould desgin,local industry voltage

STEP 2:Confirm order and pay 30% down payment

STEP 3: Production period(20-25days)

STEP 4:Pay 70% down payment .We will arrange transportation

STEP 5:If needed we will send engineer to install the machine and train the worker

STEP 6:One year warranty
