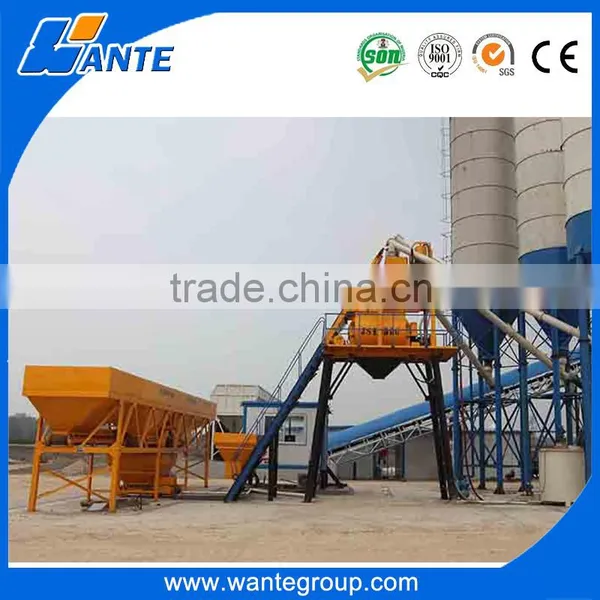

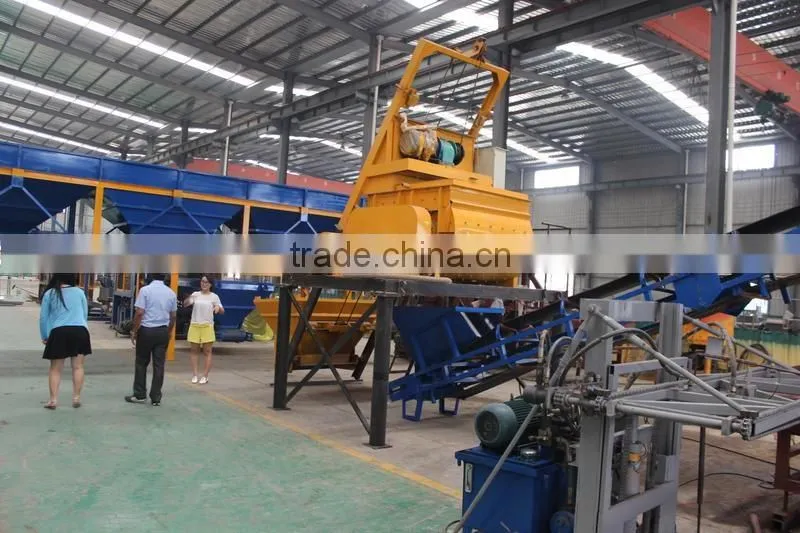

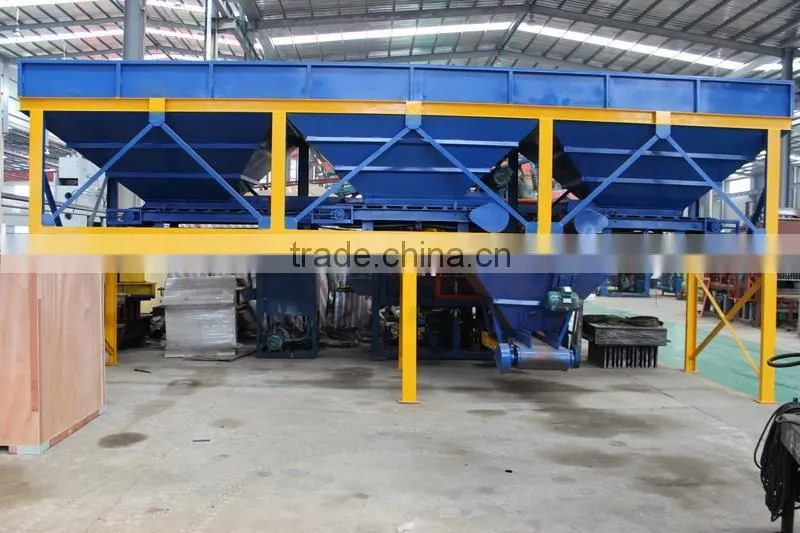

Concrete block machine batching plant

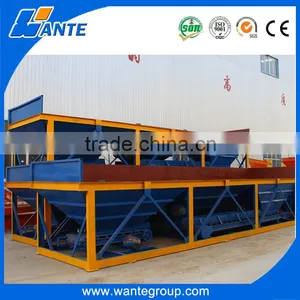

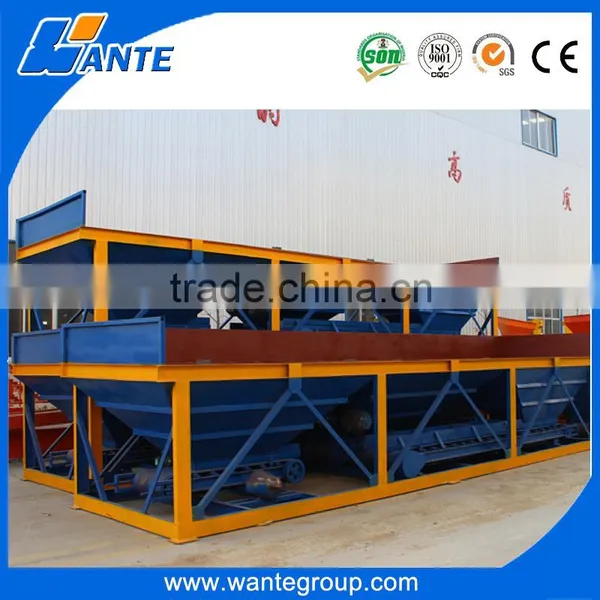

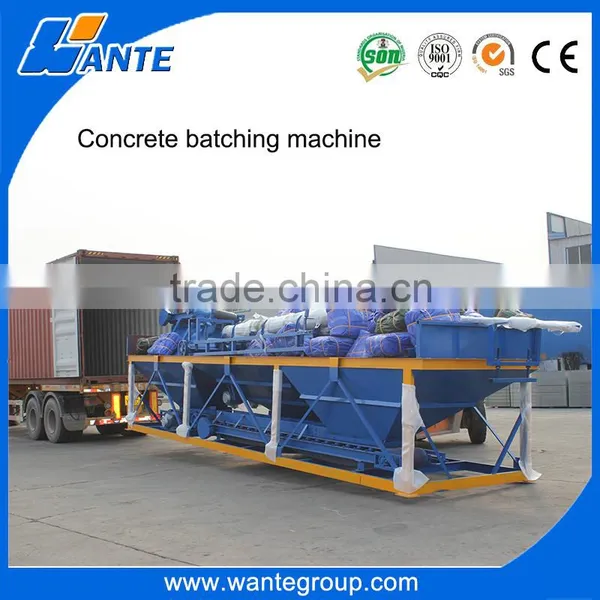

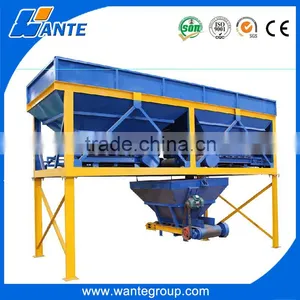

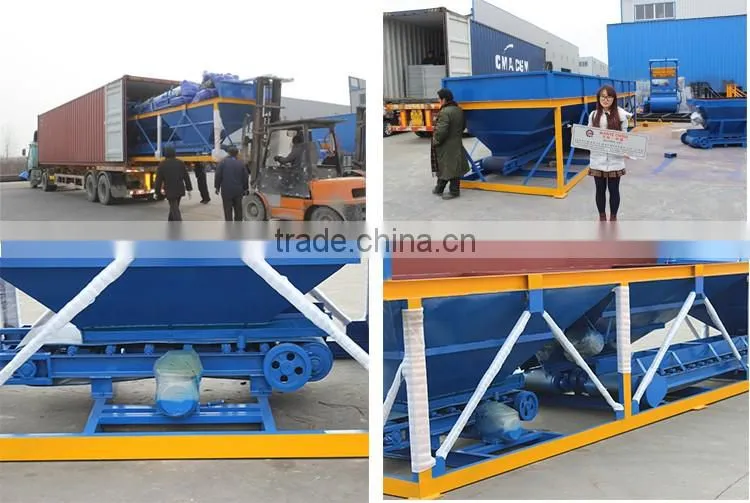

Batching machine introduction
1. Aggregate measuring system: Each hopper capacity is 1m3 (cubic meter) .
2.Materials are loaded into three hopper batching machine by loader
3.Belt scale is equipped under the hopper /use accumulated measurment.
4. Twin lines adopt double direction belt, belt can run two-way for bidirectional feeding
5.Single line adopts single direction belt for material feeding.
6.Aggregate is untaken by elevator. All materials are mixed with water in mixer
Batching machine specification:
PLD1200 batching machine | |
Weigh bucket capacity (L) |
1200 |
Productivity (m3/h) |
56 |
Batching precision |
±1% |
Max weighing capacity (kg) |
3000 |
Number of material matching |
3 |
Work loading height (mm) |
3000 |
Feeding belt speed (m/s) |
1 |
Power (kw) |
12 |
Gross weight (kg) |
4000 |
Dimension (mm) |
9000*2200*3500 |
PLD800 batching machine | |
Weigh bucket capacity (L) |
800 |
Productivity m3/h) |
48 |
Batching precision |
±1% |
Max weighing capacity (kg) |
3000 |
Number of material matching |
2 |
Work loading height (mm) |
3000 |
Feeding belt speed (m/s) |
1 |
Power (kw) |
12 |
Gross weight (kg) |
3000 |
Dimension (mm) |
5800*2200*3500 |
