aac block lightweight factory
- 150 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Other, AAC block | Brick Raw Material: | Other, Sand/flyash, cement, lime,aluminum powder, gypsum |
Processing: | Brick Cutting Machine | Method: | Autoclaved Aerated Concrete | Automatic: | Yes |
Capacity: | 50000m3-300000m3 | Place of Origin: | Shandong, China | Brand Name: | Wante Brand |
Model Number: | AAC machine | Voltage: | 220/380/240V | Power: | 300kw-1300kw |
Dimension(L*W*H): | According to the line | Certification: | ISO9001&CE | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Seaworthy package
Product Description
aac block lightweight machine information
aac block lightweight factory capacity
50,000 m3 AAC Block Plant; 60,000 m3 AAC Block Plant;
100,000 m3 AAC Block Plant; 150,000 m3 AAC Block Plant;
200,000 m3 AAC Block Plant; 250,000 m3 AAC Block Plant;
300,000 m3 AAC Block Plant; 350,000 m3 AAC Block Plant;
400,000 m3 AAC Block Plant; 450,000 m3 AAC Block Plant
Advantage of AAC block
AAC block | Detail Description |
Light weight | 500-700kg/m3. Only the equivalent of clay brick 1/4-1/5 and ordinary concrete 1/5
|
Earthquake Resistant | The light brick has light capacity, good overall performance and small inertia force in the earthquake
|
A certain high temperature resistance | The compressive strength of light brick increases slightly at a temperature of 600 degrees below
|
Good sound insulation | The inner structure of light brick is the same as bread which distributes a large number of closed pores uniformly |
aac block lightweight factory material proportion
Name | unit | Cement lime fly ash |
flash | % | 65-70 |
cement | % | 6-15 |
lime | % | 18-25 |
gypsum | % | 3-5 |
Aluminum powder paste(600kg/m3) | 1/10000 | 8 |
Water & material rate |
| 0.60-0.65 |
Casting system | OC | 36-40 |
Aluminum mixing time | S | 30-40 |
Cement lime Sand style aerated block raw material proportion
Name | Unit | Cement Lime Sand |
Sand | % | 55-65 |
Cement | % | 10-20 |
Lime | % | 20-30 |
Gypsum | % | 2-3 |
Aluminum powder paste(600kg/m3) | 1/10000 | 8 |
Water & material rate |
| 0.65-0.75 |
Casting system | OC | 35-38 |
aac block lightweight factory service
1.Production Line Design.
Including: drawing of plant working process , drawings of land construction, drawings of power working, drawings of driving force for working, drawings of anti-dust, drawings of water supply and drainage, and drawing of air pipeline construction.
2.Technical Guidance of Building Factory
Including: consultation of facility, Equipment installation guide, constitution the production preparation, etc.
3.Providing the technical information of setting up factory
Including: part of the factory management system, all posts accountability of production line, process rules, safety rules, setting a quota of staff and posts, pre-production tools directory, laboratory instruments, product catalogs, and test methods.

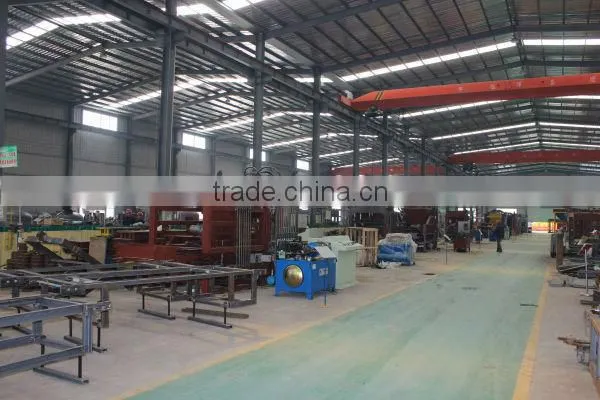

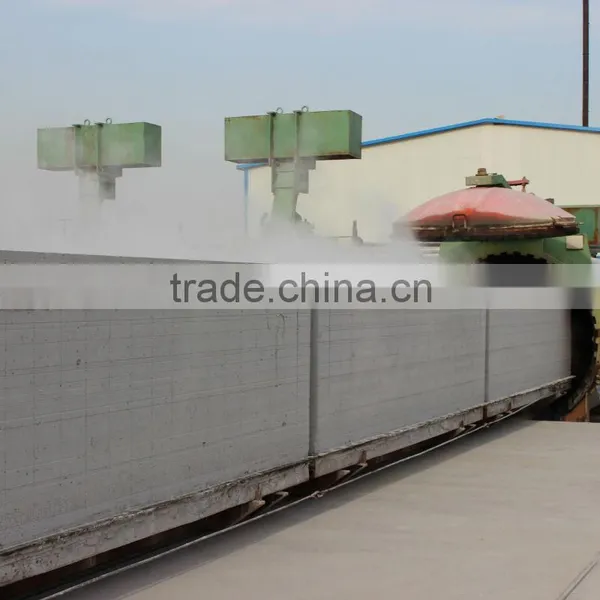

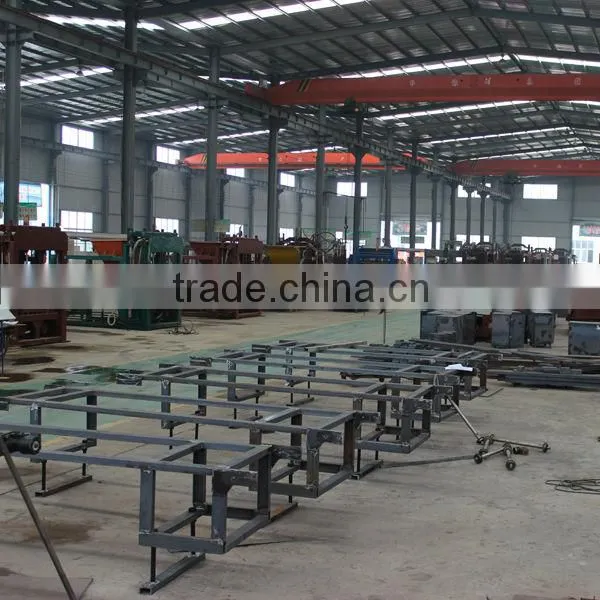

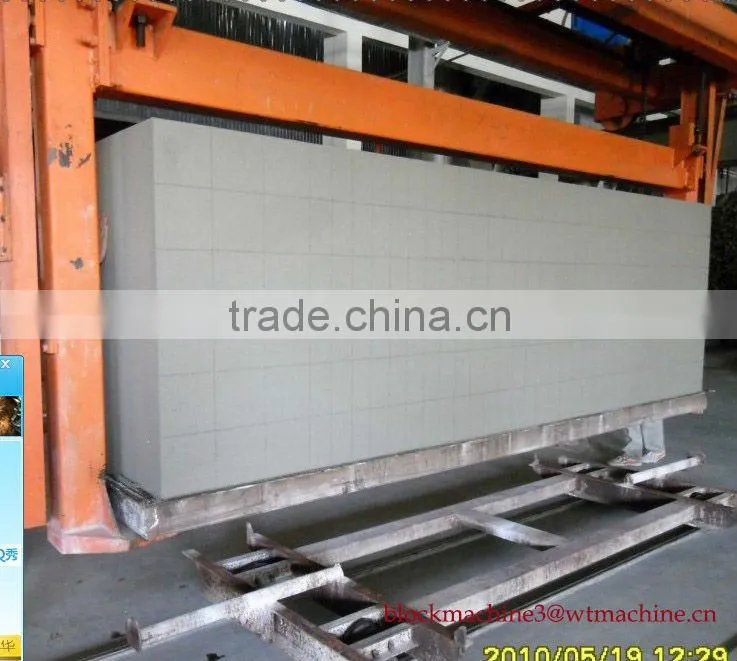

Professional AAC blocks plant pictures
Welcome to our factory
Thanks for your attention, waiting to talk more details with you.
Contact Person: Betty Skype: bettyliu4260 Tel: 0086-18315730268
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.
Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.
We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
