Professional AAC blocks plant information
Professional AAC blocks plant capacity
50,000 m3 AAC Block Plant; 60,000 m3 AAC Block Plant;
100,000 m3 AAC Block Plant; 150,000 m3 AAC Block Plant;
200,000 m3 AAC Block Plant; 250,000 m3 AAC Block Plant;
300,000 m3 AAC Block Plant; 350,000 m3 AAC Block Plant;
400,000 m3 AAC Block Plant; 450,000 m3 AAC Block Plant
Advantage of AAC block
AAC block |
Detail Description |
|
Light weight |
500-700kg/m3. Only the equivalent of clay brick 1/4-1/5 and ordinary concrete 1/5
|
|
Earthquake Resistant |
The light brick has light capacity, good overall performance and small inertia force in the earthquake
|
|
A certain high temperature resistance |
The compressive strength of light brick increases slightly at a temperature of 600 degrees below
|
|
Good sound insulation |
The inner structure of light brick is the same as bread which distributes a large number of closed pores uniformly |
Professional AAC blocks plant material proportion
Name |
unit |
Cement lime fly ash |
flash |
% |
65-70 |
cement |
% |
6-15 |
lime |
% |
18-25 |
gypsum |
% |
3-5 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
|
0.60-0.65 |
Casting system |
OC |
36-40 |
Aluminum mixing time |
S |
30-40 |
Cement lime Sand style aerated block raw material proportion
Name |
Unit |
Cement Lime Sand |
Sand |
% |
55-65 |
Cement |
% |
10-20 |
Lime |
% |
20-30 |
Gypsum |
% |
2-3 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
|
0.65-0.75 |
Casting system |
OC |
35-38 |
Professional AAC blocks plant service
1.Production Line Design.
Including: drawing of plant working process , drawings of land construction, drawings of power working, drawings of driving force for working, drawings of anti-dust, drawings of water supply and drainage, and drawing of air pipeline construction.
2.Technical Guidance of Building Factory
Including: consultation of facility, Equipment installation guide, constitution the production preparation, etc.
3.Providing the technical information of setting up factory
Including: part of the factory management system, all posts accountability of production line, process rules, safety rules, setting a quota of staff and posts, pre-production tools directory, laboratory instruments, product catalogs, and test methods.

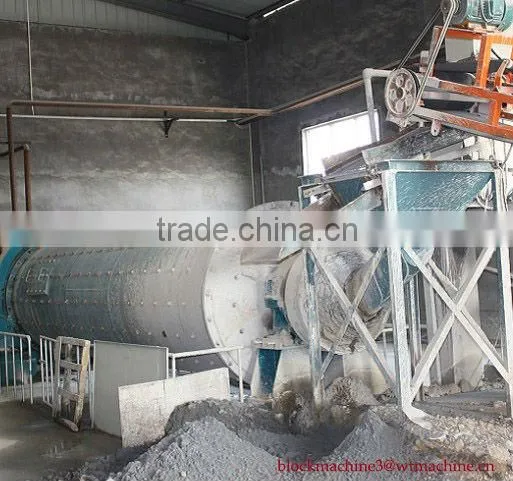

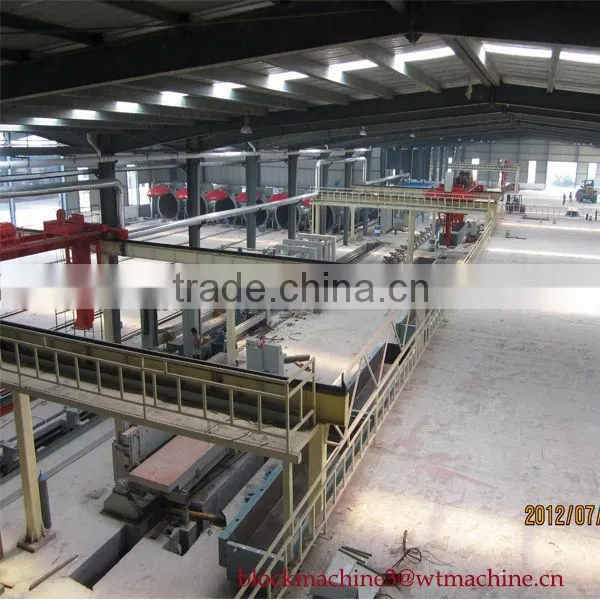

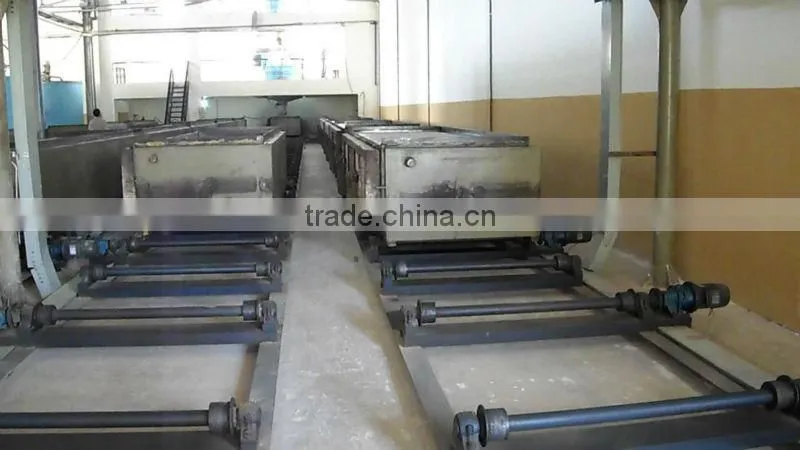

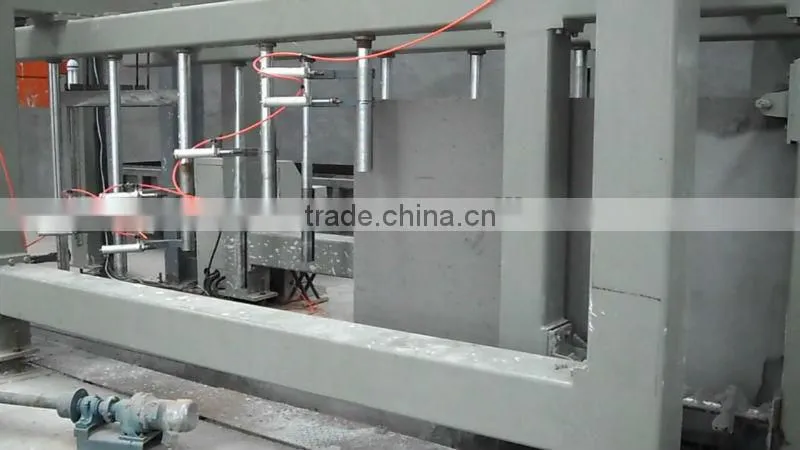

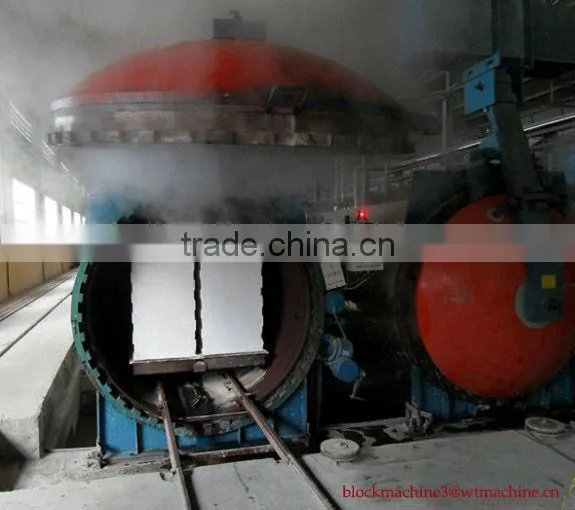

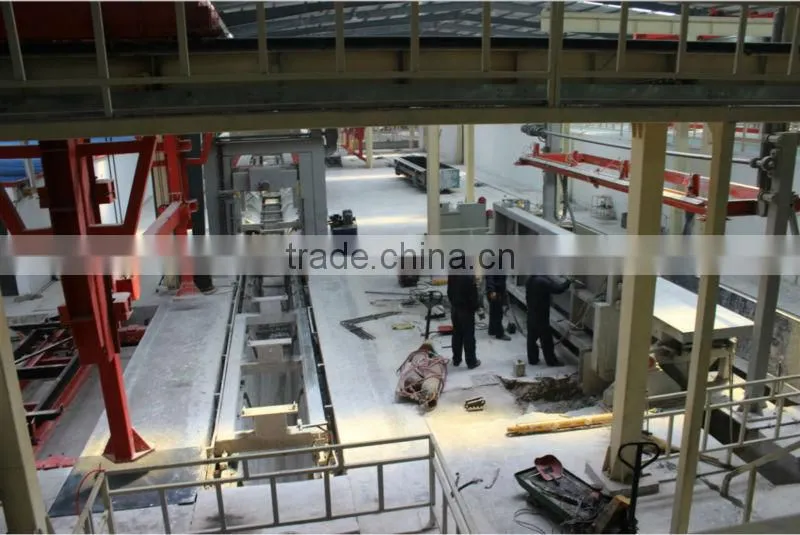

Professional AAC blocks plant pictures
Thanks for your attention, waiting to talk more details with you.
Contact Person: Betty Liu 0086-18315730268 Skype: Bettyliu4260
