KB-125E/400 automatic terrazzo floor tile making machine
Product Description
raw material
Our machine is making terrazzo tiles, floor tiles.
the raw material is cement 425# and 435# , crushed stone, stone dust and water.
| raw material | specification | ratio (kg) | notes |
| cement | P.O or P.S | 50 | |
| stone dust | medium | 80-100 | ≤dia 5mm |
| curshed stone | 50-100 | dia 5-20mm |
Notes:
1.cement : stone dust = 1:1.5~2.0 (weight)
2.water : cement = 1:0.25~0.35. The water should not be too much, otherwise tile will stick to mould.
3. can be added suitable little chemical material
4. you can put some pigment together with raw material to make tiles with colors
Production process of KB-125E/400 automatic terrazzo floor tile making machine
Material put into bucket --- Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Mould unloading --- Forming tiles --- Stacking --- Curing for 3-7 days - --- Polishing --- Finished products.
see below picture explaining showing

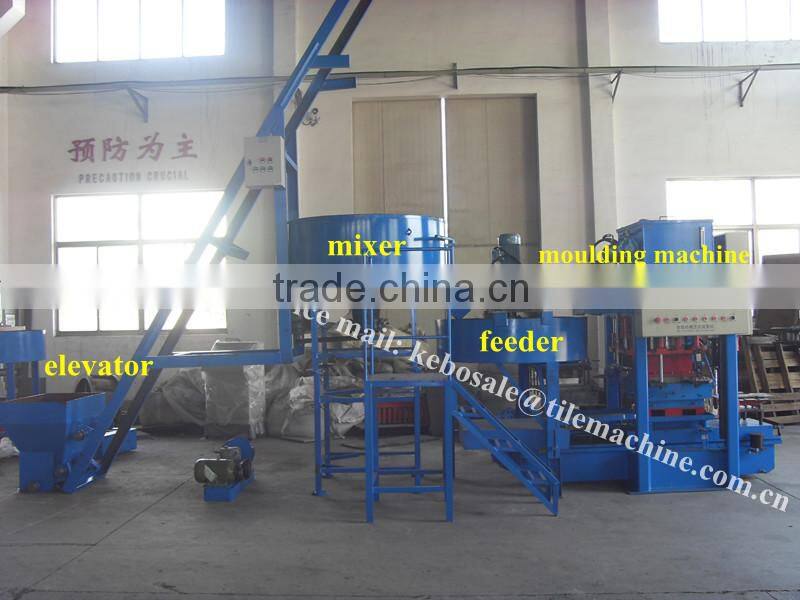

Composed equipments parts for KB-125E/400 automatic terrazzo floor tile making machine
| 1 | moulding machine | 1 set |
| 2 | constant feeder | 1 set |
| 3 | mixer | 1 set |
| 4 | elevator | 1 set |
| 5 | polishing machine | 1 set |
| 6 | stacker | 1 set |
| 7 | air compressor | 1 set |
basic specification for KB-125E/400 automatic terrazzo floor tile making machine
| Equipment type | KB-125E/400 |
| moulding speed | 6-7pcs/min |
| main frame power | 7.5kw |
| main frame weight | 5 tons |
| external dimension | 2700*1860 *2480mm |
| normal size of tile | 300*300mm, 400*400mm |
| capacity per shift | 2500-3000pcs |
Motor power for KB-125E/400 automatic terrazzo floor tile making machine
| motor power of main equipment | 7.5kw |
| motoer power of constant feeder | 5.5kw |
| motor power of mixer | 7.5kw |
| motor power of elevator | 5.5kw |
| motor power of air compressor | 7.5kw |

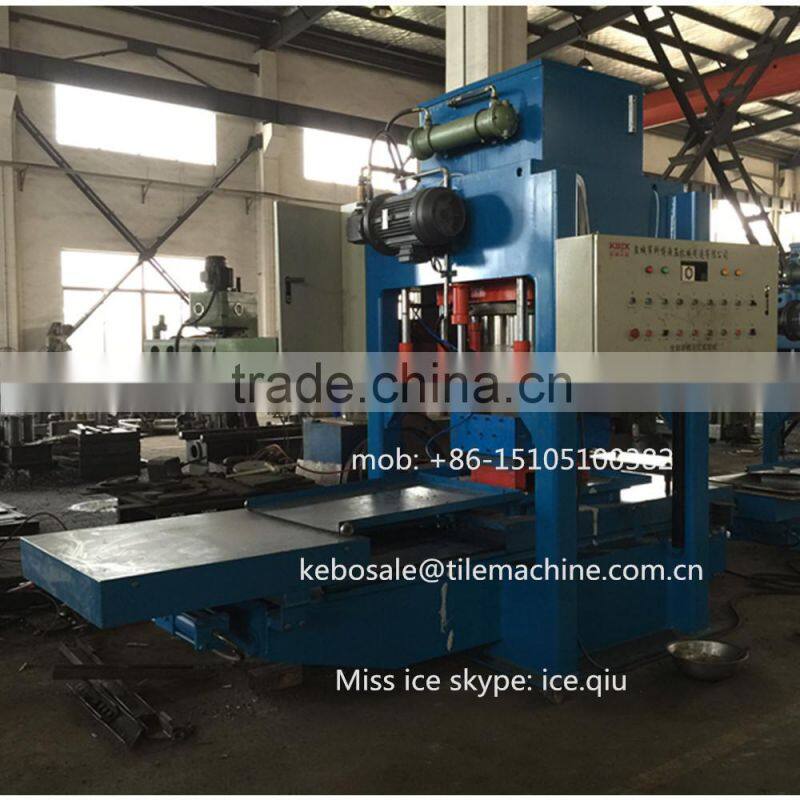

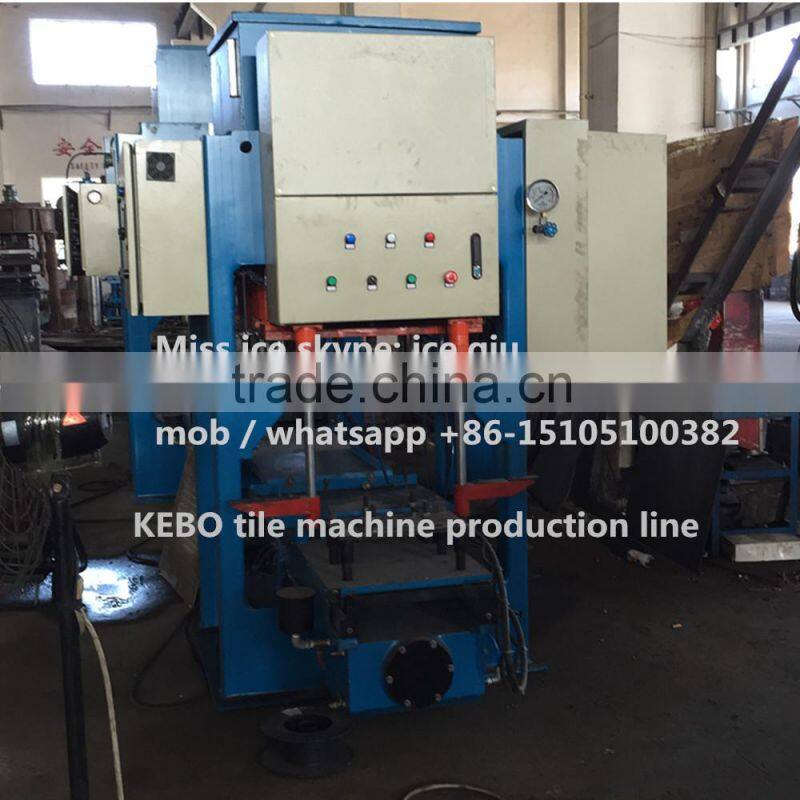

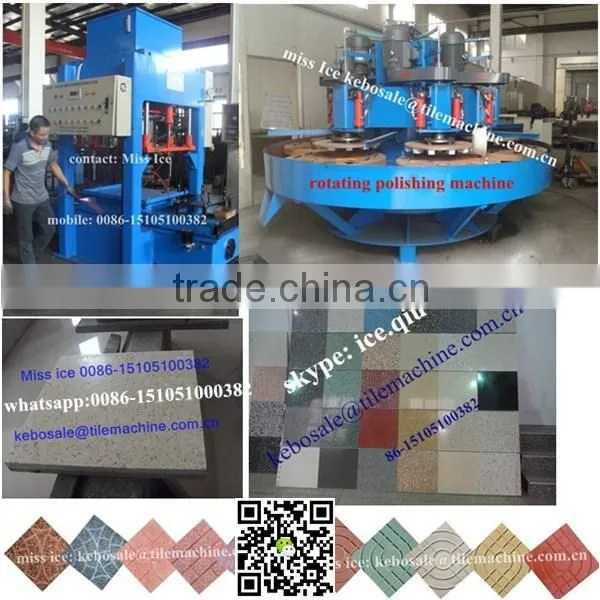

Machine sample photo for KB-125E/400 automatic terrazzo floor tile making machine
Features for KB-125E/400 automatic terrazzo floor tile making machine
-- Various colors and suitable for decoration;
-- High strength, lightweight, low consumption, large single-piece area and high coverage.
-- Good insulation.
-- Anti-acid and rain, weathering-resistant, good weather ability and over-80 years service lift expectancy.
-- Waterproofing and anti-permeation
-- Various kinds
-- Widely used. Products can be used in various buildings, practical and decorative.
Performance for KB-125E/400 automatic terrazzo floor tile making machine
1). Is PLC controlled - Is simple to operate and maintain; and it is with the function of Data input and output, Logic control and fault, and Self-diagnostic ,etc.
2). Requires just a few hours of instruction to become familiar with its operation;
3). Occupies and needs very little floor area for production;
4). May be disconnected from the power supply and ‘stored’ when not in use;
5). Designed and constructed to the same high-quality engineering standards for which all of our equipment is known.
6). Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. And Precise control components action.
7).Take use "program-controlled" Transmission positioning, stable transmission, accurate setting;
8).Take vibration on worktable ,rotating multi - layer cloth, high frequency pressure, automatic propulsion, etc. make molding cycle is short, high production efficiency, quality and density of large tiles, high strength, dimensional accuracy.
9).This machine works in many ways. By changing molds, it could produce roof tile, stair tile...
also beside KB-125E/400 , we have bigger terrazzo tile making machine KB-125E/500 and KB-125E/600 for optional. they can make bigger size like 600*600mm, 500*500mm, following is KB-125E/500 and KB-125E.600 specification for your choice:
| equipment type | KB-125E/500 |
| moulding speed | 5-6pcs/min |
| main frame power | 7.5kw |
| main frame weight | 7 tons |
| external dimension | 3300*1680*2700mm |
| normal size of terrazzo tiles | 500*500mm, 400*400mm, 300*300mm |
| capacity per shift | 2000-3000pcs |
| equipment type | KB-125E/600 |
| moulding speed | 4-5pcs/min |
| main frame power | 7.5kw |
| main frame weight | 8 tons |
| external dimension | 3460*1830*2750mm |
| normal size of terrazzo tiles | 600*600mm, 500*500mm, 400*400mm |
| capacity per shift | 1000-2000pcs |

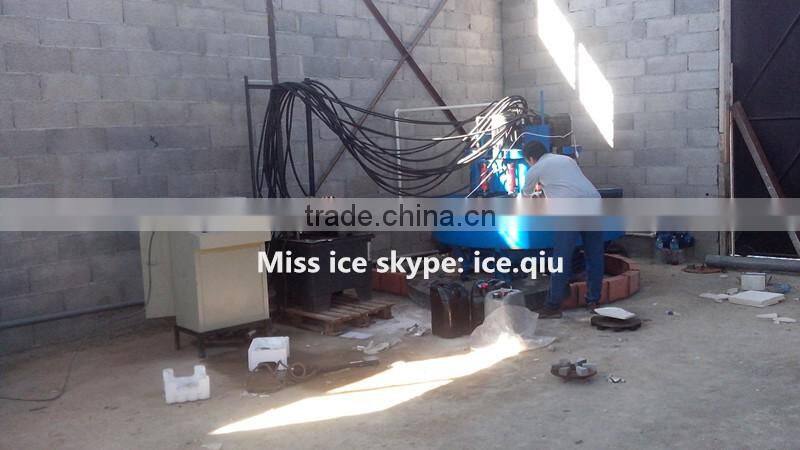

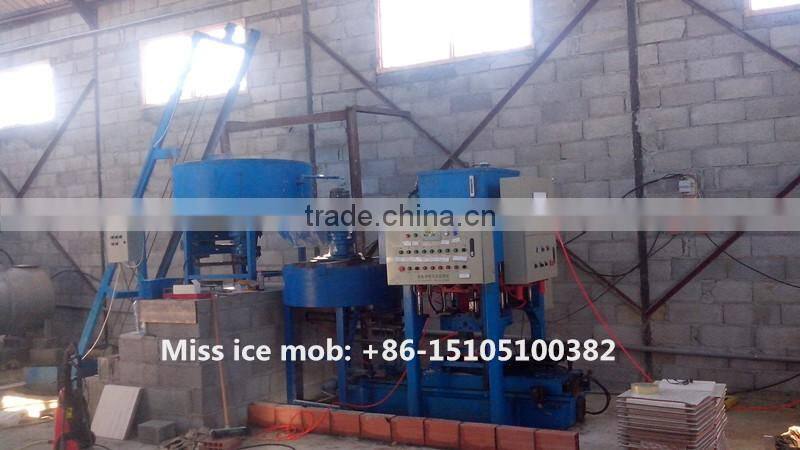

KB-125E/400 automatic terrazzo floor tile making machine is using in customer factory

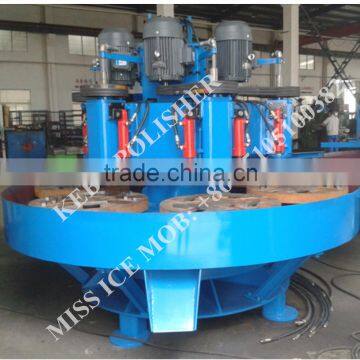

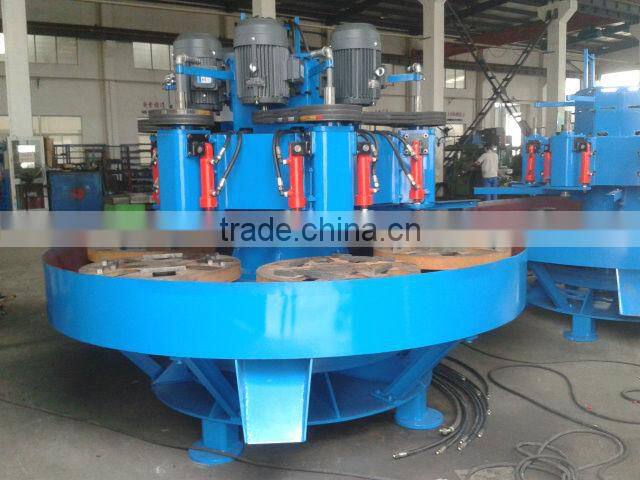

To make floor tiles, terrazzo tiles, customer also needs polishing machine, after floor tiles is made by KB125E/400, floor tile needs to be polished on its surface. KBMJ400 can meets this requirement. after polishing on tile, the surface of floor tiles will become very smooth and shining. KBMJ400 is meeting usage of KB-125E/400, they belong to one set whole line. please see below specification for KBMJ400 polishing machine
| equipment type KBMJ400 | |
| polishing speed | 9-15pcs/min |
| main frame power | 24kw |
| main frame weight | 3 tons |
| external demension | dia1950*1750mm |
| polishing floor tiles size | 300*300mm, 400*400mm |
| capacity per shift | 300-400m2 |
| composed parts for KBMJ400 polishing machine | ||
| 1 | PLC control unit | 1 set |
| 2 | hydraulic unit | 1 set |
| 3 | polishing pads | 5 sets |
| 4 | polishing stone | 1 set |
| 5 | main engine | 1 set |
1 Its applicable for the polishing of terrazzo tile and marble tile.
2 The Dimension is within 400 * 400mm
3 Its with the multiple working position and several groups so grinding heads. It could automatically change the working poistion,polish and supply,and grind separately and gradually.
4 Its with the simple operation. Usually,it only needs one person to load and unload the floor tiles.
5 The output is 12-15S/piece.
6 The surface is very smooth,which can compare with the finished marble.
7 Its with the stable performance and reliable safety.
8 Usually KBMJ-400 is used together with KB125E/400. as KB125E/400 is kind of terrazzo tile making machine. Then KBMJ400 can polish these tiles.
9 Lower price with KBMJ400 terrazzo grinding machine , exported many countries and get high reputation.

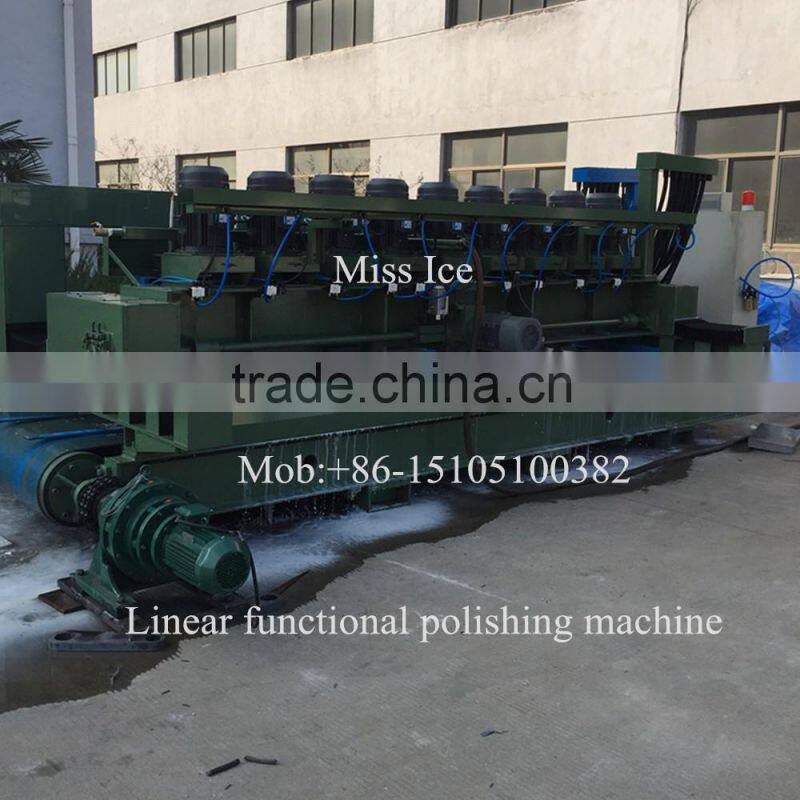

Optional polishing machine KBLP9 is one of our advanced new machine in 2015, it is linear polishing machine, has more polishing heads, 9 heads, 12 heads, 15 heads, 20 heads, KBLP9 is much more better than KB-125E/400, more shining, bigger capacity, much quicker, the best is KBLP9 also can polishing marble and granite panel. see below specification:
| processing width | max 900mm, 1300mm |
| processing thickness | max 30mm |
| grinding heads | 9/12/16 |
| capacity | 300-500 square meter per 8 hours |
| grinding heads power | 9/12/16 * 7.5kw |
| belt move power | 1.5 kw |
| bridge move power | 3 kw |
| belt move speed | 600-2200 mm.min |
| pressure | 0.6-0.8Mpa |
| cooling water pressure | in 0.15Mpa |
| consumption water for single grinding | 25L/min |
| machine size: | Machine size:7500*2200*2100mm,9600*2200*2100mm, 10800*2200*2100mm |
Main function and characteristic
KBLP9 polishing machine machine with 9-12-16-18 heads, this machine is mainly for slab polishing. the struture is reasonable, steady performance, high work effiency. With the import PLC controlling systerm, text display is controlled intelligence.
1. Out airbag, long life using, lower hazard rate, lower maintenance cost, etc advantage.
2. With the best quality belt with famous brand, thickness accord, promise the thickness of the slab.
3. Belt move and bridge move is controlled with the automatic controlling system
4. With lower power (7.5kw single head), lower cost, Capacity is 38 square meter per hour. The brightness for G3786 can catch up 85 degree.
5.The control system of this machine adopts PLC terminal control with LCD touch screen terminal for parameter setting and faulte prompts during operationm etc. It is applicable to continuours grounding and polishing granite tile. Operating speeds of plate coverying and crossbeam of polishing disc are controlled by frequency converter. working pleasure and the polishing width of tile are adjustable within the setting values. This machine can also automatically identify the shape of tile, so that each polishing disc (polishing head) could automatically lift and lower according to the identified shape of tile, and conduct tracking records for tile polishing at the same time. The overall machine is produced according the standard requirements with performance up to the leading domestic level.
6. All the electrical parts adopt famous brand, the PLC is Siemens and other electrical parts mainly are Schneider, so these can ensure the machine’s stability and long-term working.

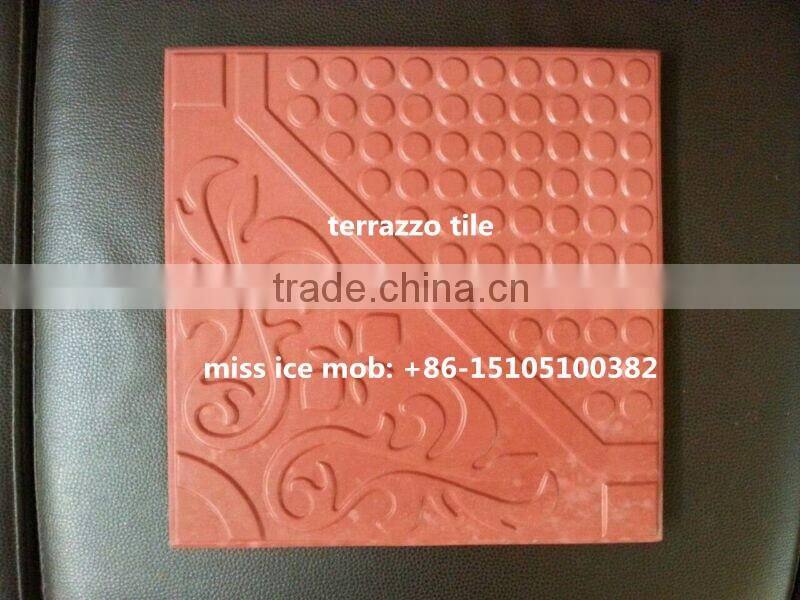

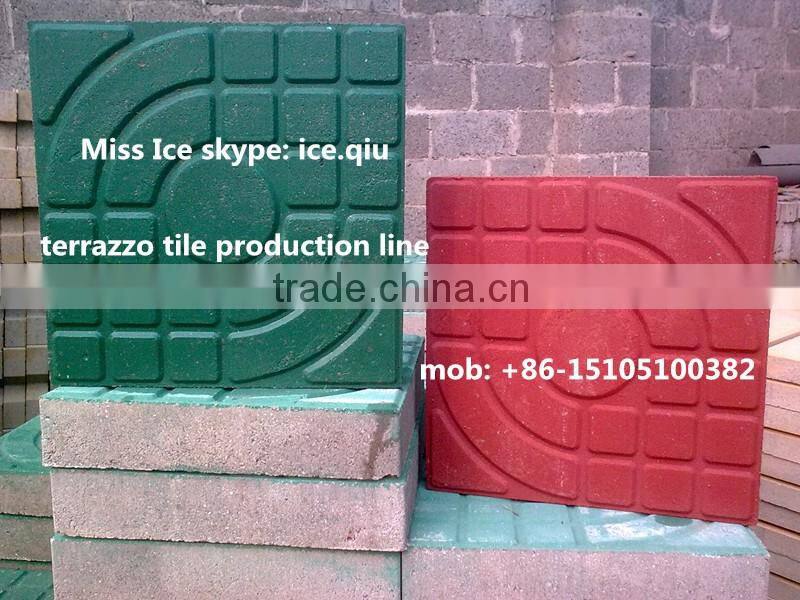

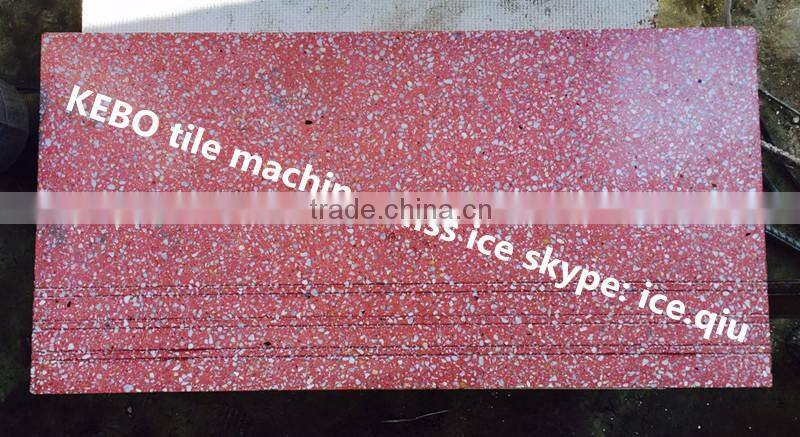

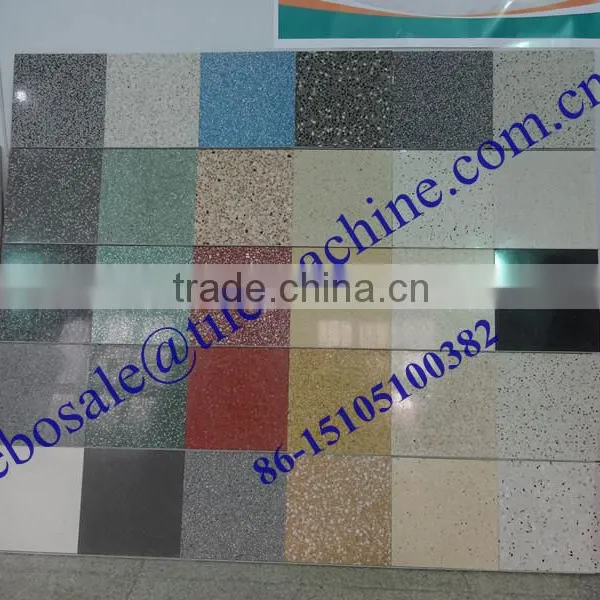

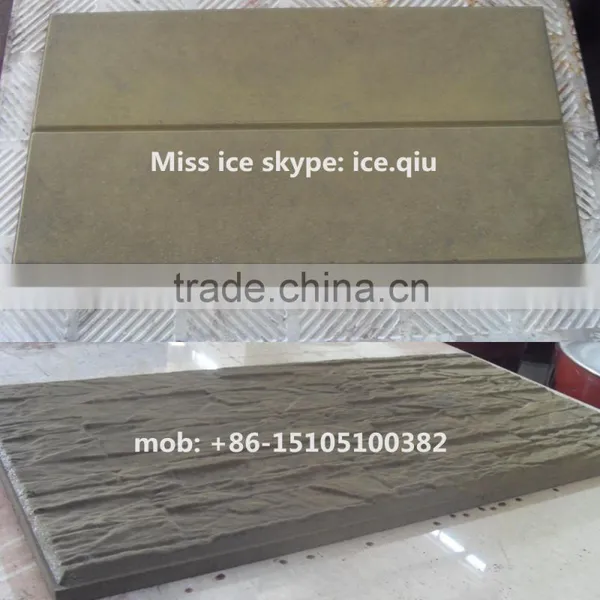

finished products -- terrazzo tiles showing
Packing & shipping
Our Services
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
a. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
b. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
Company information
Yancheng KEBO Tile Machinery Manufacturer is professionally making tile machine for 12 years. Main products is roof tile machine and floor tile machine, raw material is cement, concrete. Our machines export to foreign market, Middle -East, Asia, Africa....etc. We cooperate with Germany construction Int'l for three years, in order to research new technology of tile machine
FAQ
. one year guarantee for whole machine except consumption
. 24 hours technical support by email
. calling or door to door service
. ues-friendly english software, user manual, and details video
for details information, pls feel free to contact my following information, if you have time welcome you come to visit our factory.
