Specifications
1) Low consumption2) moisture(output) is less than 1%
3) Easy operation
4) good price
3 cylinder dryer creation rotary dryer is widely used in a variety of materials drying operations. As reliable operation, convenient operation, strong adaptability, large capacity, it is widely used in metallurgy, building materials, food, light industry, chemical industry, coal, medicine and mining industries. Rotary dryer is suitable for drying granular materials in general. It can also be mixed with some materials by drying sticky paste materials or materials with higher water content. Commonly used in dry sand, slag, coal, animal waste and so on.

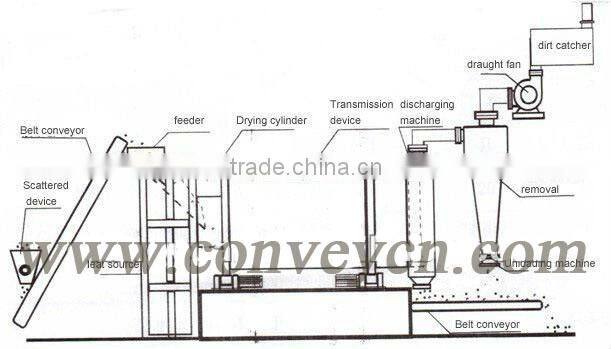

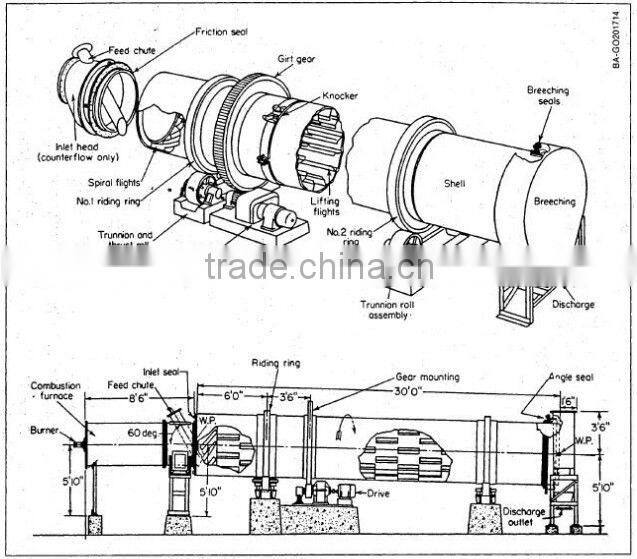

Structure composition of Creation Rotary Dryer
It mainly consists of revolution body, raise material board, transmission device, supportive device and sealing ring, etc.
The heat sources of the drier is from the combustion train, and is adopts down-flow heating methods. When the materials enter into the body from the feeding device, it will be pushed back by the spire raising board. As the drier is in an inclined position, the materials will be down to the lower end under the influence of gravity and rotation, but the raising board will be threw to the upper end for scattering. This procession makes the material well-distributed in the body, and then ensure the heat exchange with the heat wind. After repeated cycle with this procession, the moisture content will be dried.
| Model | Shell diameter (mm) | Shell length (mm) | Slope(°) | Rotary speed(r/m) | Weight(t) | Power (KW) | Volume (m3) |
| Φ0.6×8 | 600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
| Φ0.8×10 | 800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
| Φ1.0×10 | 1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
| Φ1.2×12 | 1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
| Φ1.5×12 | 1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
| Φ2.2×14 | 2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
| Φ2.4×18 | 2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
| Φ2.8×24 | 2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |
We are manufacturer in China, which serves as the largest base of Chinese industrial technology, and the busiest container port in the world. The competition in this city is severe, only companies with ending technology, stable workforce, and effective cost management could survive. With 50years of efforts and innovation,our company is now a leading brand in China.
Affordable, high-quality machines. Our highly competitive price relies upon our ability to minimize our costs, of which our competitors don’t.
place order or send inquiry we would like to know the following information:
-What kind of material you are going to dry?
-Capacity per hour you need?
-Moisture before and after dry you required?
-Fuel available for the dryer?
