Specifications
1.High quality and high efficient2.Energy-saving
3.Good performance
4.Good after-service

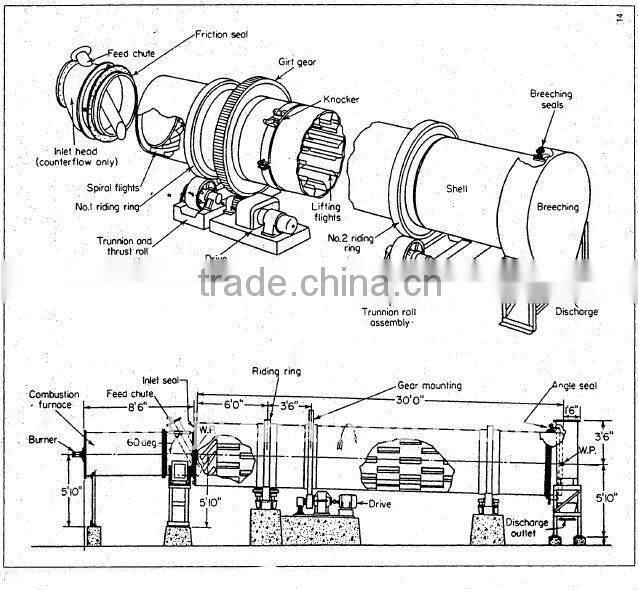

Structural component of gypsum dryer
Desulphurization gypsum dryer is short for TDGD
Intermittent drum Gypsum powder Wok mainly consists of steel machine base, wok, frying pan which has scatter plate, stock guide, riding ring and transmission mechanism
Wok was installed on the furnace, so the furnace body can get the heat directly
Then the heat was passed to gypsum and fries the gypsum in this way
The wok machine use intermittent way to charge or discharge the material and timing frying
This machine is specialized developed for frying β-semi-hydrated gypsum powder and architectural gypsum powder on the base of the technology of rotary dryer and food wok machine
Main characteristics of gypsum dryer:
Can make use of the chemical gypsum (desulfurization gypsum, phospho gypsum, and others) to fry to β-semi-water gypsum powder directly
Ensure the requirements of burning gypsum powder precise control frying time and temperature in the process
Exit design of wok machine is reasonable, operation without dust pollution
Intermittent feeding and discharging materials can pressure fire and shutdown furnace, when open furnace again, 3 minutes latter, it can be put into normal operation
Equipped gas stove and boiling furnace supply the heating, the exhaust heat can be recycling (boiling water or heated air)
|
Type |
specification | Volume (m3) |
Charge (t) | Rotate speed(r/min) | Motor power(kw) | Weight of the equipment |
| TDGD1 | Φ1.2×3m | 3.4 | 1 | 15.5 | 3 | 3.2 |
| TDGD 2 | Φ1.5×3.6m | 6.4 | 2 | 13.7 | 5.5 | 4.7 |
| TDGD 3 | Φ1.5×4.6m | 8.2 | 3 | 13.7 | 7.5 | 5.8 |
| TDGD 4 | Φ2 3.6m | 12 | 4 | 11.2 | 11 | 7.5 |
| TDGD 5 | Φ2 4.6m | 15 | 5 | 11.2 | 15 | 8.8 |
Certification:
If you are new for this business, we will help you
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable type for you and send you reasonable quotation, could please give us some more information about your requirement as follows:
♥ What is the raw material to be dried and what is the moisture before and after drying ?
♥ What is required capacity(t/h) ?
