Good performance Chicken /Cow//pig Manure Drying Machine/Poultry Dung Dryer Machine for Africa Marketing
- 20 Set / Sets per Month
- Qingdao/Tianjin/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | China |
Brand Name: | Creation | Model Number: | KDG | Voltage: | 380,414,440 |
Power(W): | 3-75KW | Dimension(L*W*H): | according to the capacity | Weight: | according to the capacity |
Certification: | ISO9001,CE | Warranty: | 12months, 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1).high degree of mechanization2).low energy cost
3).Structure was simple and excellent
4).Reliable for running
Features:
Chicken manure drying machineis a low-fuel-consumption and high efficiency of drying drying machine
Can be used to dry the material with a moisture content below 85% to a final moisture content below 13%
Applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of chemical raw materials, such as chicken manure, wine slot, furnace slag, fructose slag, slag vinegar sauce, sugar beet residue, animals slaughtered contents, coal slime, bentonite, and more.
For resource development and good environmental protection drying machine
The drying machineuses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying of fresh chicken manure can achieve the purposes of drying, sterilization,
deodorant and preservation of nutritional Equipped with highspeed rotating drum of crushing devices, which increases the
contact area between material and drying medium, the internal unique drying machinedesign, makes materials difficult to adhere to the drum wall panels and parade.
The complete machine has the effects of heat preservation, good sealing performance, and the fact that the thermal
efficiency considerably higher than the general drum drying machine. The drying machinestructure is compact, easy to install and debug, and using small floor area Drum and crushing device use stepless speed regulating devices, which can
adapt to the different requirements of the drying materials. The drying machinecan combine the use of different fuels
(such as coal, heavy oil, natural gas, and more)

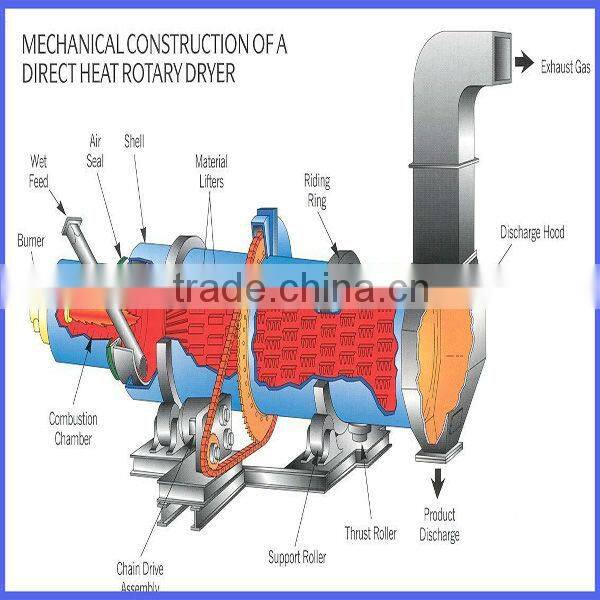

Facilities and work principle:

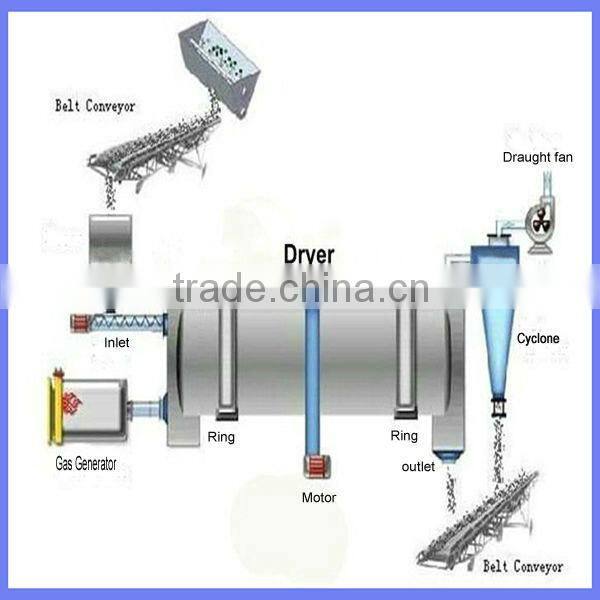

The complete sets of drying machinemainly is composed of the crushing drum drying machine, burning furnace, feed spiral, output spiral, pipeline, dust collector, airlock, air induced fan, electric control cabinet, and other components
Work principle:
Conveyed from the feed screw directly into the drying machinedrum, raised by the drum wall panels repeatedly, and
scattered by the crushing blow dispersion devices Materials and the negative hightemp media are combined sufficiently to
complete heat and mass transfer process. Result of the drum wind angle and induced air, feed materials move slowly, and
discharged from the spiral after drying, exhaust gas handled by the dust precipitator, venting to the atmosphere.
Certification:
place order or send inquiry we would like to know the following information:
-What kind of material you are going to dry?
-Capacity per hour you need?
-Moisture before and after dry you required?
-Fuel available for the dryer?
