1 Fiber LSZH Outer Jacket Fig 8 Self-Supporting Fiber Cable For Southeast Asia
US$ 0.08 - 0.1
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
Fig 8 Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2-144 Fibers Single-mode Double Armors Double Jackets Flame-retardant Fiber Optic Cable(GYFTZA53)US$ 0.3 - 1MOQ: 1000 Meters -
2-24 Fibers Single Mode Single Armor Double Jackets Flame-retardant Mining Fiber Optic Cable(MGTSV)US$ 0.4 - 2MOQ: 1000 Meters
-
Cheapest Price Aerial Outdoor Fiber Optic Cable(GYXTW)US$ 0.2 - 0.6MOQ: 1000 Meters
-
Non-armored Steel Wire Strength Aerial Fiber Optic Cable (GYXTY)US$ 0.15 - 0.6MOQ: 1000 Meters
-
Non-armored and Non-metallic Central Strength Member Aerial Outdoor Fiber Optic Cable(GYFXTY)US$ 0.15 - 0.6MOQ: 1000 Meters
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
Fig 8 Cable
Type
Cat 1
Number of Conductors
1
1 Fiber LSZH Outer Jacket Fig 8 Self-Supporting Fiber Cable For Southeast Asia

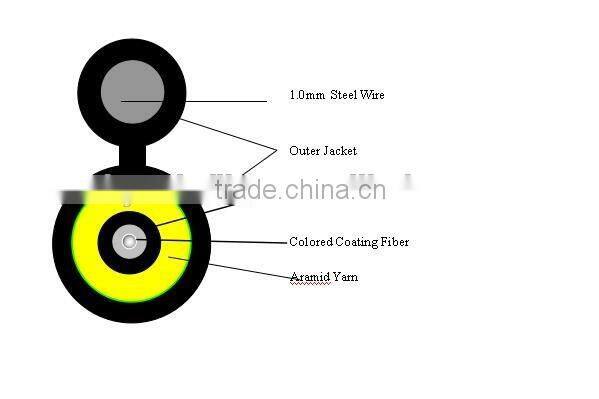

Profile View:
Fiber Parameters:
| No. | Items | Unit | Specification | |
| G.657A1 | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±1.0 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 | ||
Cable Parameters:
| Items | Specifications | |
| Fiber Count | 1 | |
| Tight-buffered Fiber | Dimension | 0.85mm±0.05mm |
| Material | PVC | |
| Color | Blue | |
| Outer Jacket | Dimension | 6.5mmx3.5±0.2mm |
| Material | LSZH | |
| Color | Natural | |
| Strength Member | Dimension | 1.0mm |
| Material | Steel Wire | |
| Yarn | Type | Aramid yarn |
Mechanical and Environmental Characteristics:
| Items | Unite | Specifications |
| Tension(Long Term) | N | 300 |
| Tension(Short Term) | N | 800 |
| Crush(Long Term) | N/10cm | 200 |
| Crush(Short Term) | N/10cm | 600 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |

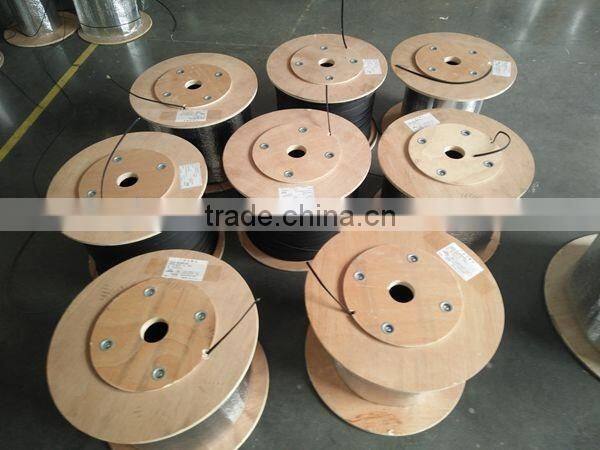

The Pictures of Packaging:
