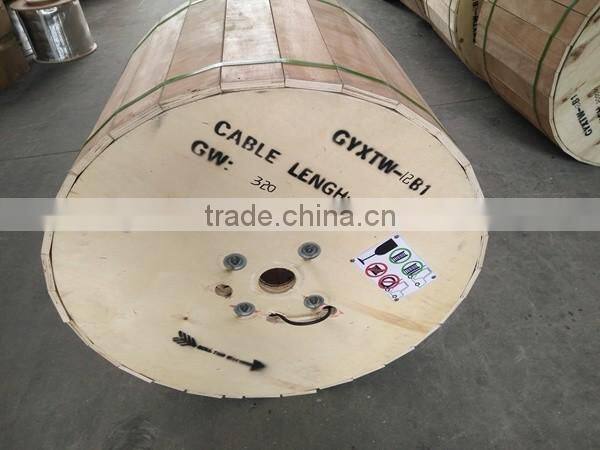

8 Fibers Single-mode Central Loose Tube Waterproof Outdoor Fiber Optic Cable(GYXTW)
These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.
Fiber Count:8 Fibers
Strength Member Meterials: Steel Wire
Fiber Type:Single Mode G652D
Armor Layer:PSP
Outer Sheath:PE
| Cable Count |
Out Sheath Diameter |
Weight |
Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | |
| 2 | 8.0 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | 8.0 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 6 | 8.0 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 8 | 8.0 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 10 | 8.0 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 12 | 8.00 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| G.652D | 50/125µm | 62.5/125µm | ||
|
Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 | |||
