Help CenterDear Baby Food/Nutrition Powder Production Line
Related Products
-
Portable Artificial Rice Production LineUS$ 8,000 - 12,000MOQ: 1 Set -
High Tech Rice Making Machine/artificial Rice Production LineUS$ 21,000 - 26,000MOQ: 1 Set
-
High Tech Artificial Rice Production Line/health Rice Food MachineUS$ 21,000 - 26,000MOQ: 1 Set
-
New Energy Rice Making Machine/artificial Rice MachineUS$ 21,000 - 26,000MOQ: 1 Set
-
High Efficiency Artificial Rice Production LineUS$ 8,000 - 12,000MOQ: 1 Set
Pregelatinized starch is subject a soluble & instant digestible food, and according to different customers and prescriptions, it could be divided into baby rice flour, old rice flour and instant rice flour. Learning from advanced domestic and overseas technologies, our new self-developed fully automatic nutrition rice flour line produces modified starch from grain through high-temperature and high-pressure extrusion, instead of traditional grain stir-frying, which is more absorbable with higher nutrition. With main raw materials of all kinds of grain, either adding daily necessary nutrient contents during producing nutrition powder or non-adding is available. Meanwhile, this line is capable to produce all kinds of baby rice flour, sesame paste, nut paste, etc.
Technological Process

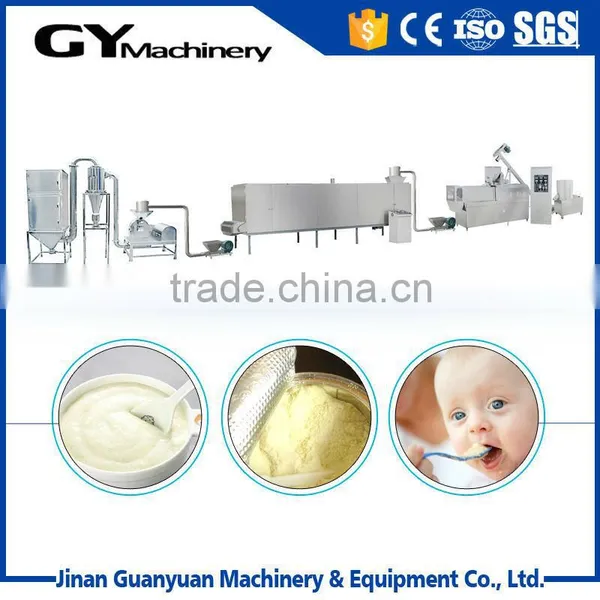

Raw Materials Configuration→ Mixing→ Conveyance→ Extrusion→ Conveyance→ Drying→ Conveyance→ Pulverizing
Equipment Configurations
- Flour Mixer: evenly stir starch alone or starch mixture (e.g. corn starch, cassava starch, potato starch, etc) with a certain amount of water. Choose different GY flour mixer model according to different output requirements.
- Spiral Conveyor: Convey stirred raw materials into feeding hopper of extruder.
- Extruder: Select different GY extruder model based on clients’ raw materials and output capacity requirement. With the help of special control cabinet, extruder is able to extrude the raw material under different temperature & pressure, and produce puffed products. The shapes of products can be changed by changing the modules in extruder.
- Air Conveyor: Convey material into drying oven.
- Multi-Layer Drying Oven: Dry semi-finished products. It is the most common dehydration plant for puffed food. It includes a belt dryer and some in-built heating devices to carry out drying by means of electricity, vapor, diesel or gas. The drying temperature and drying time can be controlled.
- Pulverizer: Select an appropriate pulverizer model to pulverizing the products to powder according to the output requirements of modified starch production line.
Characteristics
- Various models to meet different output capacity requirements.
- Flexible configurations to meet different produce, budget and workshop layout requirement.
- Vast raw material range to produce different final products by only one production line.
- High automation and accurate control system to save labor cost and improve the quality of final products.
- Independent temperature control system is able to realize zone temperature control, electronic induction, accurate & visual digital display.
- Feeding system without material returning. It is unnecessary to clean barrel and screw in case of restarting or material replacement.
- Screw adopts high-performance nitride alloy steel with strong wear-resistance and longer service life.
- Food-grade stainless steel. Neatness and easy clean.
Technical Parameters
Model |
Output Capacity |
Installed Capacity |
Power Consumption |
Dimension Size: |
Supply Voltage |
GY12/65-1 |
100 ~ 150 Kg/h |
32 KVA |
10-18 Kw |
2.8x1.4x1.8 M |
380V/50Hz Three phases or 220V/60Hz Single phase |
GY12/65-4 |
150 ~ 220 Kg/h |
50KVA |
15-30Kw |
3.2x1.4x1.8 M |
|
GY12/70-1 |
150 ~ 260 Kg/h |
51 KVA |
15-35 Kw |
3.4x1.4x1.8M |
|
GY12/75-1 |
200 ~ 400 Kg/h |
79KVA |
20-45Kw |
4.3x1.6x1.8 M |
|
GY12/85-1 |
250 ~ 500 Kg/h |
104KVA |
45-75Kw |
4.2x1.7x2.1M |
|
GY12/95 |
400 ~ 1000 Kg/h |
168KVA |
60-110Kw |
5.6x1.8x2.4M |
Workers
Normally 1-2 operators are sufficient for production.
