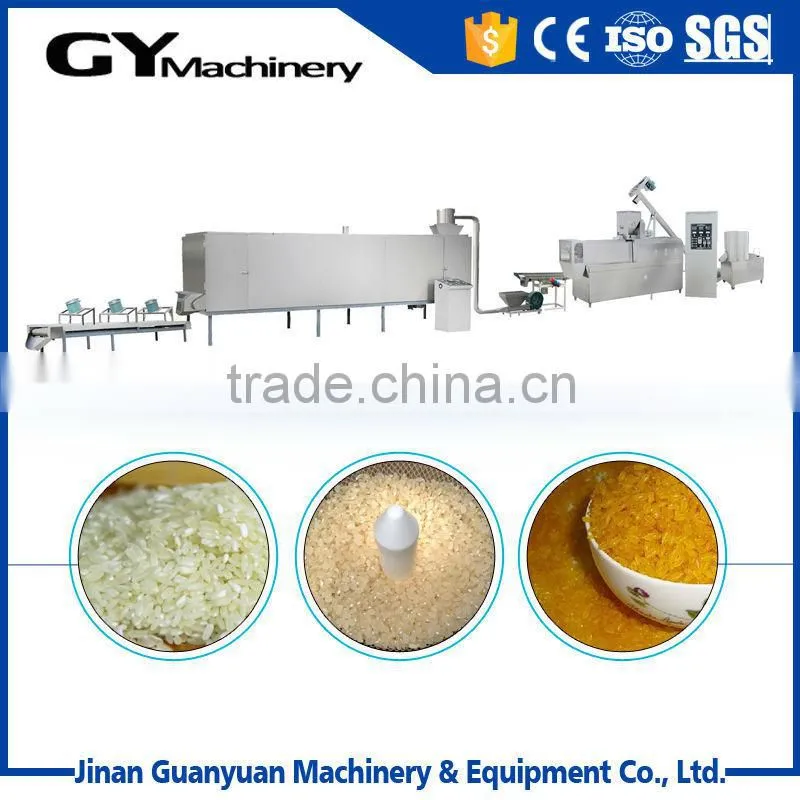

High Tech Rice Making Machine/artificial Rice Production Line

High Tech Rice Making Machine/artificial Rice Production Line thumbnail-1
High Tech Rice Making Machine/artificial Rice Production Line photo-1
US$ 21,000 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, grain
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan Guanyuan Machinery & Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, grain
Place of Origin Shandong, China
Brand Name GY
Model Number GYS/65/70
Voltage 380V/50HZ/Three Phase
Power(W) 60kw,65kw,95kw
Dimension(L*W*H) 16000x1500x2200mm
Weight 3t-5t
Certification ISO 9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



Description



Based on modern nutritional requirement and integrated with advanced technologies, GY nutrition rice and artificial rice production line is researched and developed by our company to meet the requirements of the tendency that people have a more rational thinking  about food nutrition. It has the advantages of high automaticity and wonderful energy conservation. This line could use rice, millet, black rice, buckwheat, etc as raw materials to generate new enhanced nutrition rice through extrusion, curing and  forming after mixing with different types of vitamins, proteins and mineral substances, subject to a nutrient-rich & green-health rice and undifferentiated in cooking method.



Technological Process



Raw Material Configurations→ Mixing→ Conveyance→ Extrusion→ Vibrating Screening→ Conveyance→ Drying→ Cooling









Equipment Configurations



  1.  Flour Mixer: Stir mixed raw materials evenly with a certain amount of water. Choose different GY flour mixer model according to different output requirements.
  2. Spiral Conveyor: Convey stirred raw materials into feeding hopper of extruder.
  3. Extrusion: Select different GY extruder model based on clients’ raw materials and output capacity requirement. With the help of special control cabinet, extruder is able to extrude the raw material under different temperature & pressure, and produce puffed products. The shapes of products can be changed by changing the modules in extruder.
  4. Vibrating Screening: Vibrating screening the semi-products to prevent adhesion.
  5. Air Conveyor: Convey semi-finished products into dryer.
  6. Multi-layer Drying oven: Dry semi-finished products. It is the most common dehydration plant for puffed food. It includes a belt dryer and some in-built heating devices to carry out drying by means of electricity, vapor, diesel or gas.
  7. Cooling Machine: Realize fast cooling of dry coherent rice.



Characteristics



  • Various models to meet different output capacity requirements.
  • Flexible configurations to meet different produce, budget and workshop layout requirement.
  • Vast raw material range to produce different final products by only one production line.
  • High automation and accurate control system to save labor cost and improve the quality of final products.
  • Independent temperature control system is able to realize zone temperature control, electronic induction, accurate & visual digital display.
  • Feeding system without material returning. It is unnecessary to clean barrel and screw in case of restarting or material replacement.
  • Screw adopts high-performance nitride alloy steel with strong wear-resistance and longer service life.
  • Food-grade stainless steel. Neatness and easy clean



Technical Parameters



Model

Output Capacity

Supply Voltage

GY11/70-2

150 ~ 260 Kg/h

380V/50Hz Three phases

or

220V/60Hz Single phase

GY11/75-2

200 ~ 400 Kg/h
