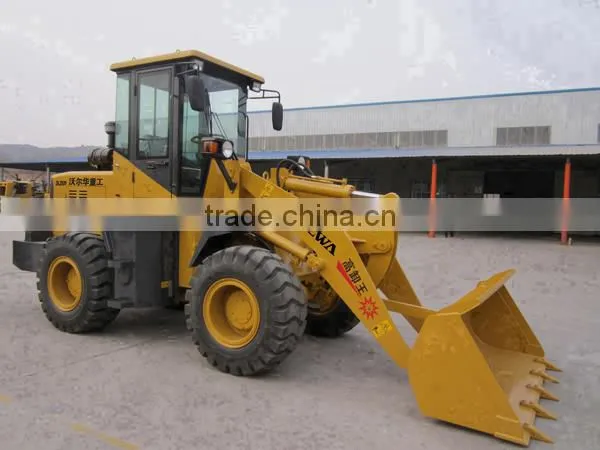

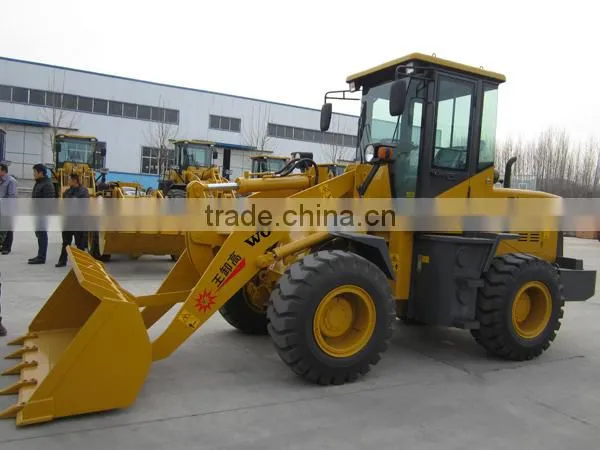

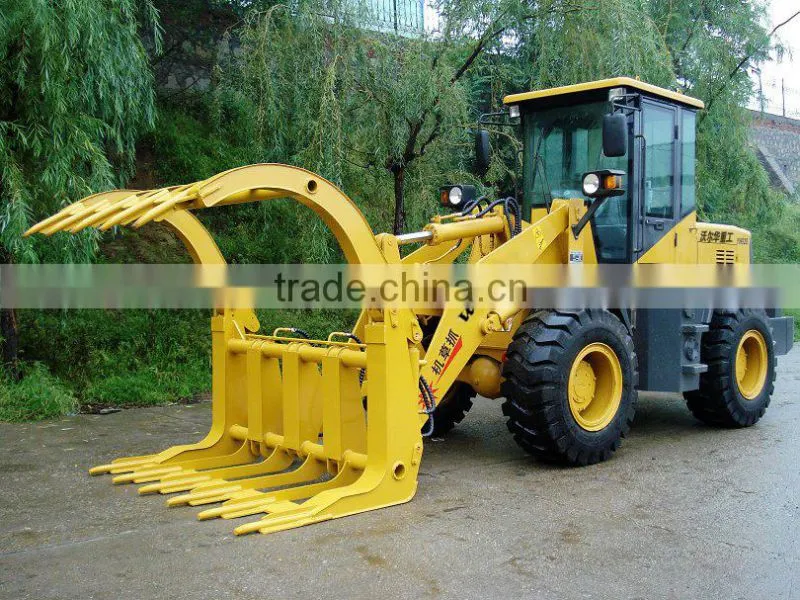

Help CenterDLZ920 1.8 Ton Lwheel Loader Price Made in China for Sale
Related Products
-
DLZ926 2ton Lower Wheel Loader Price List Made in China for SaleUS$ 1 - 10MOQ: 1 Set -
DLZ926 1.5ton Wheel Loader Price List Made in China for SaleUS$ 1 - 10MOQ: 1 Set
-
Wolwa GN15 Mini 4x4 Wheel Hydraulic Dumper LoaderUS$ 4,000 - 4,200MOQ: 1 Set
-
3 Ton Mini Wheel Hydraulic Dumper for SaleUS$ 7,000 - 7,500MOQ: 1 Set
-
Wolwa GN30 Mini 4x4 Wheel Hydraulic Dumper With Self Loading SystemUS$ 7,000 - 7,500MOQ: 1 Set
DLZ920 wheel loader feature
AdoptXin Chai four cylinder diesel engine.
Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
Load sensing fully hydraulic steering system makes operation easy.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically levelling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.
DLZ920 wheel loader technical specifications
Bucket capacity |
0.9 m3 |
Min. turning radius |
4200mm |
Rated load |
1800 kg |
Steering angle |
35º |
Dumping height |
2750 mm |
Min. ground clearance |
330mm |
Dumping reach |
910 mm |
Wheel base |
2150mm |
Boom lifting time |
4.5 S |
Tread |
1480mm |
Total cycling time |
9 S |
Engine model |
Xin Chai 4105 |
Max. speed |
25km/h |
Rated power |
50kW/2400rpm |
|
Max. breakout force |
46 kN |
Tyre |
16/70-20 |
Max.drawing force |
35 kN |
Overall dimensions |
5520*1950*2670mm |
Max. Gradeability |
28° |
Operating weight |
5300kg |
