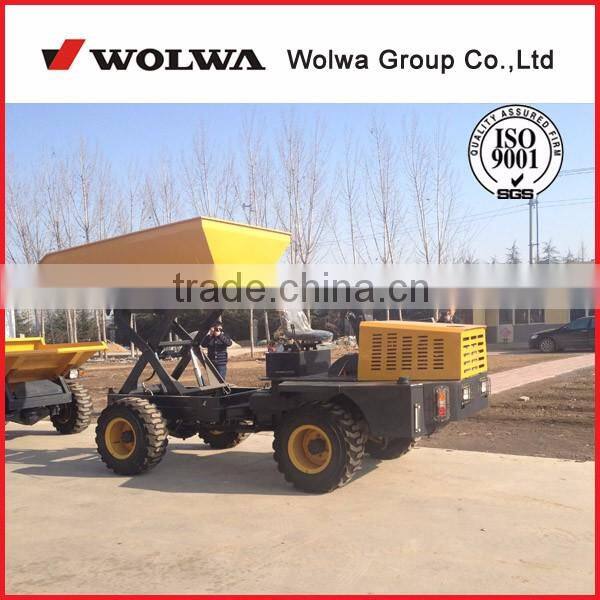

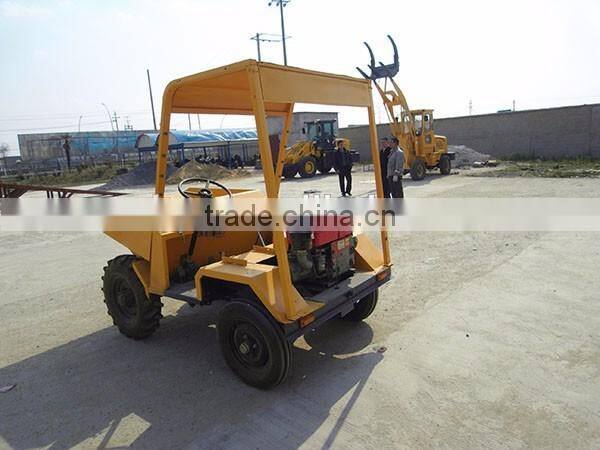

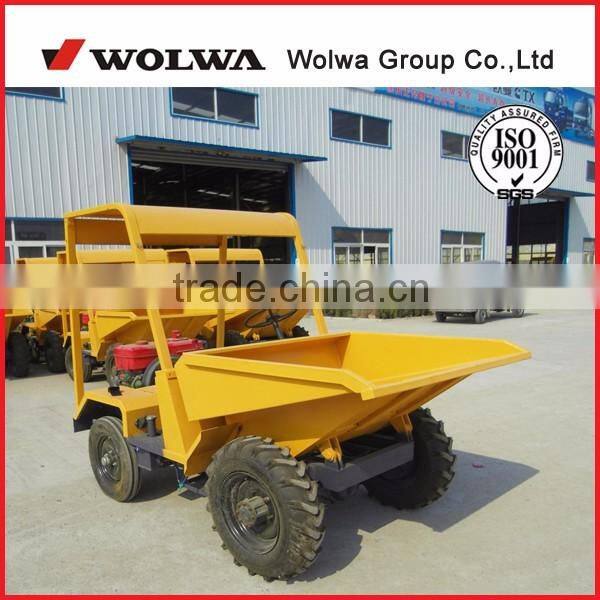

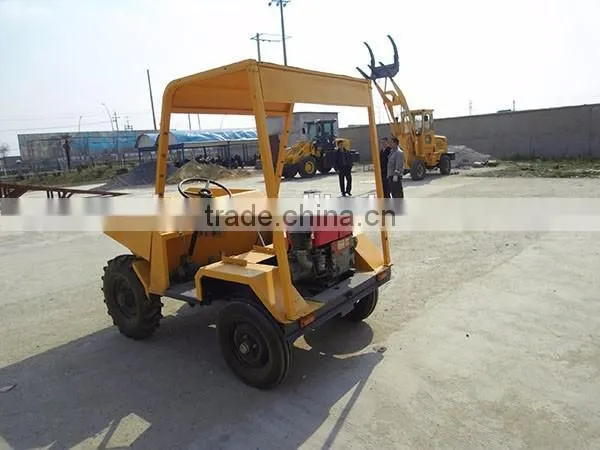

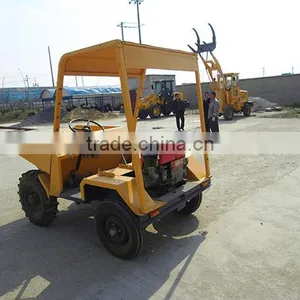

Wolwa GN15 Mini 4x4 Wheel Hydraulic Dumper Loader

Name: Wolwa GN15 Mini 4x4 Wheel Hydraulic Dumper Loader
Brand: Wolwa
SKU: 111844493

US$ 4,000 - 4,200 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

Wolwa

Model Number:

GN15

Wolwa Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Wolwa

Model Number GN15

Place of Origin China

Type Mini Loader

Moving Type Wheel Loader

Rated Load 1500kg

Certification ISO9001

Warranty 12 Month

After-sales Service Provided Engineers available to service machinery overseas

1.5ton Wheel dumper GN15

Product Introduction

1 Mini dumper 4*4 Drive Hydraulic steering, can unload materianls smoothly by strong hydraulic pressure unloading system

2 Low walking speed, short-distance transport of bulk materials

3 Easy opration, small turning radius can be used in a narrow environment.

4 With self loading bucket can realize the mutifunction tools. Wtih full seal cabin optional.

5 Deutz Engine as Optional engine which makes the performance reliable.

6 Off road wider tyres as option, can work in muddy and bumpy road.

7 With bucket 180 rotate can raalize side dumping and dumping in each direction can have high working.

Item		GN15

Rated load(kg)		1500
Rated bucket capacity(m3)		0.75
Dumping height(mm)		240
Max .climbing gradient ( ^O)		21
Bucket width		1580
trave speed(km/h)	Forward gear Ⅰ	6.8
	Forward gearⅡ	9
	Forward gearⅢ	22
	Reverse gear	4.8
Min turning radius (mm)		4600
Overall dimension (length width high)(mm)		272016002040
wheel base(mm_)		1500
tread (mm)		1230
Minimum ground clearance(mm)		200
The weight of machine(kg)		1200
Engine Model	Model	ZS1100
	Rate power(kw)	12.1
	Rated speed(r/min)	2200
Tipping system		Hydraulic tipping hopper
Electic starting		Yes
drive		2 wheel drive
