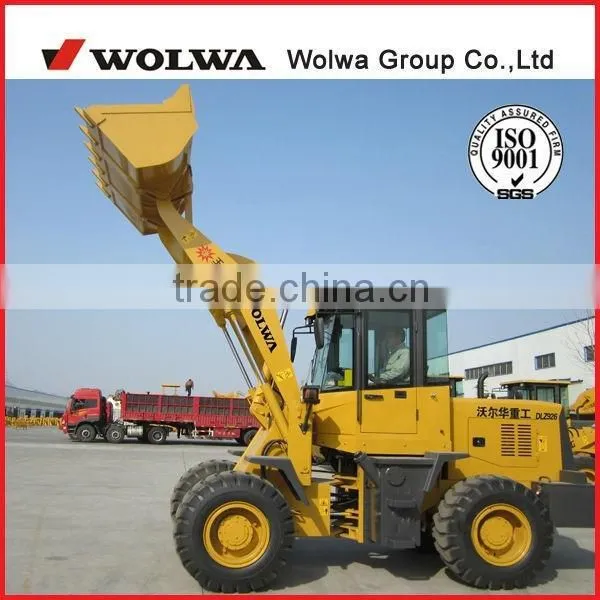

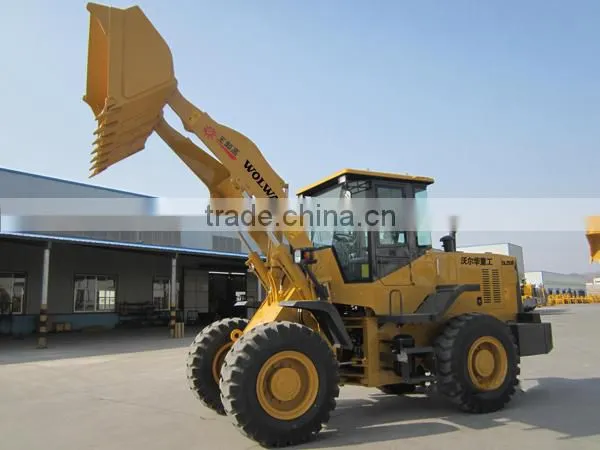

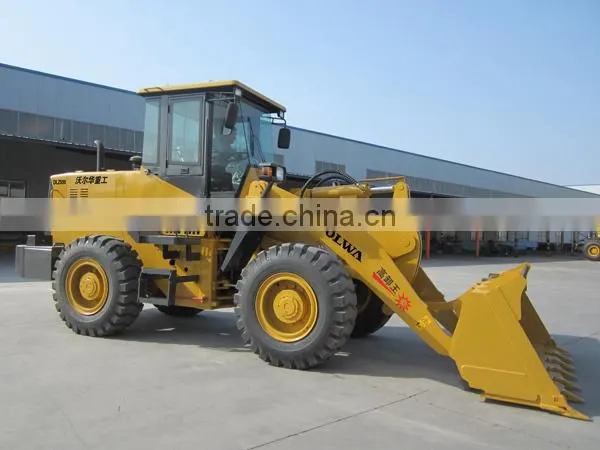

DLZ926 lowest wheel loader feature
YTO diesel engine is adopted, with strong power.
Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
Load sensing fully hydraulic steering system makes operation easy.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically levelling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.
DLZ926 lowest wheel loader technical specifications
| No. | ITEM | UNIT | DATA |
| 1 | Rated Loading | kg | 2000 |
| 2 | Operating Weight | kg | 6000 |
| 3 | Rated Bucket Capacity | m3 | 1.1 |
| 4 | Max. Traction Force | KN | 45 |
| 5 | Max. Breakout Force | KN | 55 |
| 6 | Max. Grade Ability | ° | 30 |
| 7 | Max. Dump Height | mm | 2750 |
| 8 | Max. Dump Reach | mm | 920 |
| 9 | Overall Dimensions(LxWxH) | mm | 5880x2060x2750 |
| 10 | Min. Turning Radius | mm | 4600 |
| 11 | Engine Model | - | YTO |
| 12 | Rated Power | kw | 60 |
| 13 | Gear shift | - | Two forward two reverse |
| 14 | Total Cycling Time | s | 9 |
| 15 | Wheel base | mm | 2350 |
| 16 | Tread | mm | 1500 |
