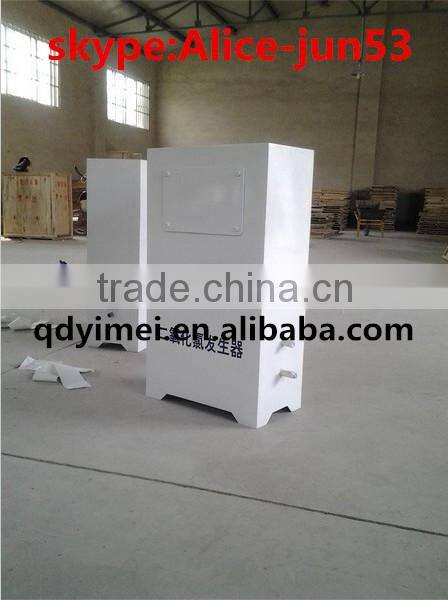

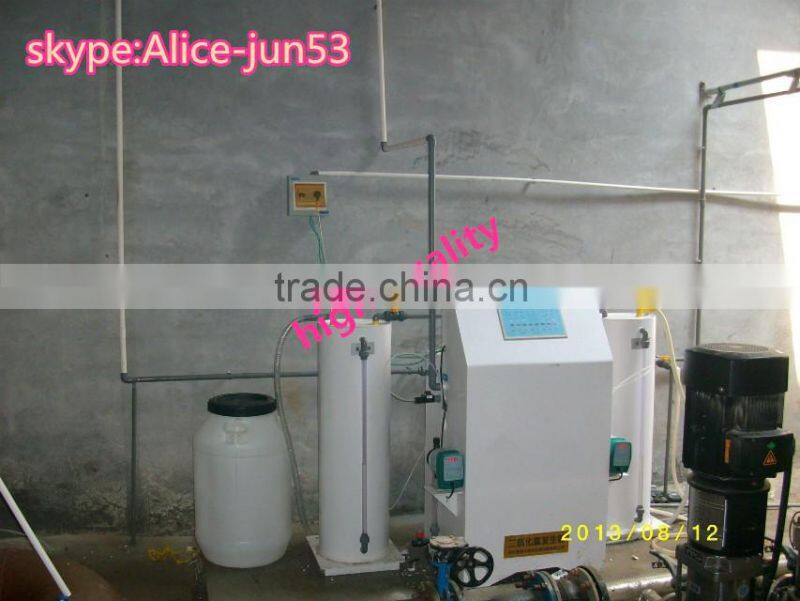

Chlorine Dioxide Generator Water Sterilizer Plant

Specifications

duct features and main purposes:

YM series chlorine dioxide generator is my company in the thorough study of domestic and foreign similar products based on advanced technologies, after many years of exploration, innovation and practice, using the latest techniques and special high quality materials developed by. This product has advanced technology, operation convenience, easy maintenance, low operating cost, service life long, the comprehensive performance marked characteristics in the domestic leading level. This equipment is widely used in drinking water, swimming pools, water, hospital wastewater disinfection; Industrial cooling water sterilization alga; Industrial wastewater decoloring, deodorant and remove reducing pollutants.

2.Specifications and types of composition and representing significance:

Generator per hour of equipment specification according to the chlorine-antiseptic yield (g/h) to differentiate, for example: YM - 1,000 refers to economical series products, rated asia-pacific forum every hour for 1000 grams chlorine-antiseptic yield.

3. environment of use and working conditions:

Setting place: indoor (well ventilated)
With water: 25, hydraulic pipe diameter DN p 0.2-0.4 MPa, : traffic Q p 2 cubic meters/hour.
With power: AC220V, 50HZ; Power 1KW

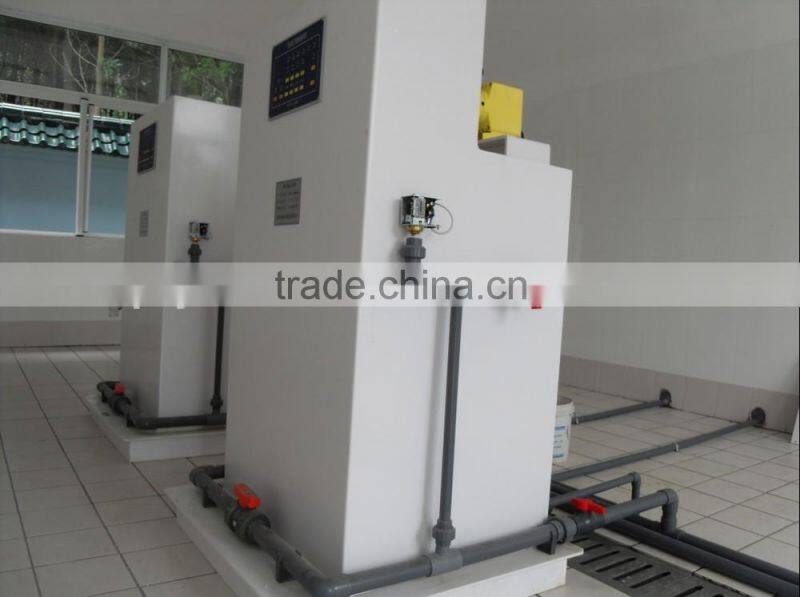

B. the structure and working principle:

1.The overall structure and working principle:

Overall structure: generator have material feeding system and reaction system, absorption system and safety system structure. Generator shell for PVC material.
Working principle: sodium chlorate aqueous solution with hydrochloric acid by negative pressure conditions in the feeding tube material box, dripping with valve into reaction chamber, fully and reaction, output by chlorine dioxide gas for the main ingredients of disinfection, via water absorption and water shoot fully mixing is formed after disinfection, access to water was disinfected.

2.Equipment parts schemes and illustration:

Serial          parts                                                 function

number       name
1        level gauge                            shows raw material box level
2        drops add valve                     adjusting raw material dosing quantity
3        raw material dosing valves       open or turn off the raw material, KaiTingJi when used
4        suck feed tube                  add sodium chlorate solution and hydrochloric acid solution to use
5       unicom valve material box,       absorb charge absorb charge open when end closure

6     exhaust valve material box,         absorb charge absorb charge when closed end to open
7       the outlet                        check back exports and prevent water chlorine into equipment inside
8       the outlet valve absorb charge        only in raw material box when closed
9       drain valve                                      when cleaning of the residual liquid discharge reactor
10     discharging valve row materials.        In the box net materials

11      the relief valve                             equipment operation not the specific pressure at approach
12      water mouth                                 water heating tanks mouth
13      outfall                                            heating tanks drain
14      heating window
15      inlet                                         equipment in operation of air passages

Technical Data:
