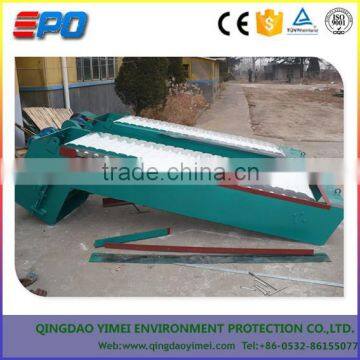

Bar screen/solid-liquid separation mechanical grille machine
- 50 Set / Sets per Month
- QINGDAO
- T/T
- excavator diesel engine Oil filter element 9N-3367
- 10g 7g ozone generator for lab waste water treatment
- PW USP Purified Water Generation Systems For Making Pill Form Drugs
- SS316L Pharma Purified Water System FDA USP cGMP GMP Standard
- Water Filters Systems Sand Carbon Purification RO To Drinking Water Treatment Machinery
- BPE SS Pipeline Pharmaceutical Water Systems With Diaphragm Valve
Product Details
Place of Origin: | Shandong, China | Brand Name: | YM | Model Number: | YMGS |
Product Description
solid-liquid separation mechanical grille machine
Use and brief introduction
YMGS type rotary bar screen rack cleaner machine is a kind of continuously automatic self-cleaning rack cleaner pretreatment equipment, used for large and medium-sized water supply and drainage engineering facilities water inlet, it is widely used in the water and sewage pretreatmeng of urban and planning area.The clear of fill sundries of water plant, sewage treatment plant, electric power plant, steel plant. To ease the following process treatment load.
Use and brief introduction
YMGS type rotary bar screen rack cleaner machine is a kind of continuously automatic self-cleaning rack cleaner pretreatment equipment, used for large and medium-sized water supply and drainage engineering facilities water inlet, it is widely used in the water and sewage pretreatmeng of urban and planning area.The clear of fill sundries of water plant, sewage treatment plant, electric power plant, steel plant. To ease the following process treatment load.
Technical parameters
Model | YMHG-300 | YMHG-400 | YMHG-500 | YMHG-600 | YMHG-700 | YMHG-800 | YMHG-900 | YMHG-1100 | YMHG-1200 | YMHG-1250 | YMHG-1500 |
Install angle( a) | 60°~80° | ||||||||||
Power (kw) | 0.37~0.75 | 0.55~1.1 | 0.75~1.5 | 1.1~2.2 | 1.5~3 | ||||||
Screen Speed ( m/min) | About 2 | ||||||||||
Width w0(mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1100 | 1200 | 1250 | 1500 |
Height H0 (mm) | H+H1+1350 | ||||||||||
Total width W1 (mm) | 650 | 750 | 850 | 950 | 1050 | 1150 | 1250 | 1450 | 1550 | 1600 | 1850 |
Ditch width U (mm) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1350 | 1600 |
Ditch depth h (mm) | decided by user | ||||||||||
Diversion trench Length L (mm) | 1500+Hxctga | ||||||||||
Medium maxi temperature(°C) | 80° | ||||||||||
foot margin to discharging top mouth height H2 (mm) | 400~1000 |
High quality accessories

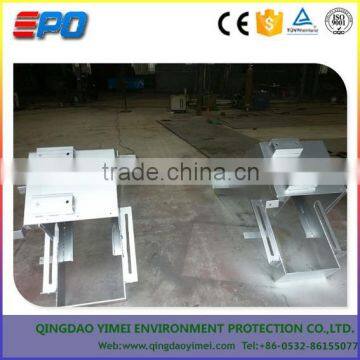

Production process
Installation drawing
Ordering Information
- Customer should provide civil canal width, depth, slag discharge height, installion angle, gear clearance etc technique paremeter.
- Customers should specify special materials requirement.
- Supporting electronic controll box should bu marked controll requirement and controll mode.
