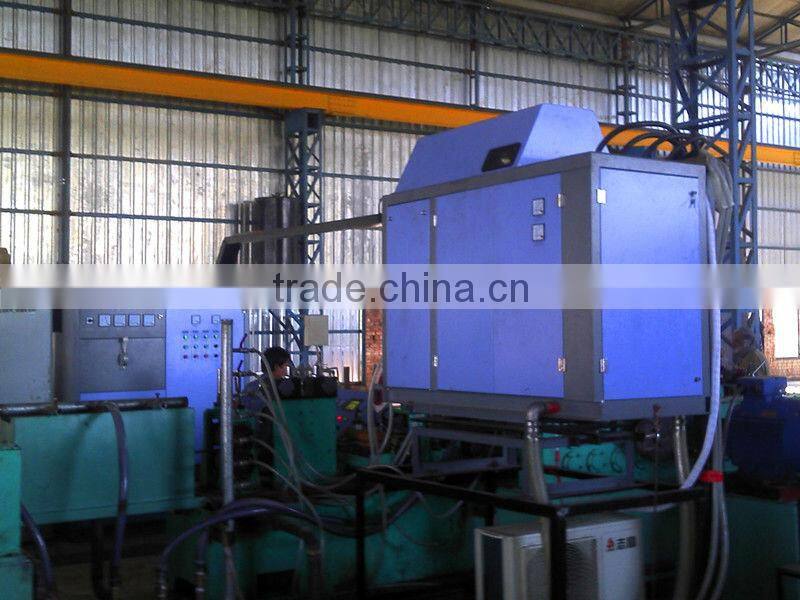

KGPS M.F. Heating Device 500kw

Specifications

The detail of kgps furnace ( we also supply IGBT ,KGPS dual /dual track furnace )

Application:

this furnace is used for refining of the molten metal in conjunction with the primary melting furnace, such as arc furnace, converter or induction furnace. It possesses the various metallurgical functions of arc heating, argon blow stirring, temperature measuring and sampling and alloying, etc. It is a critical secondary steelmaking facility for high-quality carbon steel, alloy steel, bearing steel, tool steel and stainless steel, and so it could meet the requirements of continuous casting, rolling and ingot production.

Performance:

1, mechanical parts
Including infrastructure plans, layout plans, civil engineering requirements, platforms and cooling system, power Manual, the use of electric furnace maintenance manuals and operational procedures IF power notes.
Hydraulic schematics, hydraulic station and dumping the furnace console plans and hydraulic parts list. Hydraulic System Manual.

2, electrical parts
Including the main circuit electrical schematics, external wiring diagram, IF Power Maintenance Manual, the control system failure ruled out inspection guidance manuals.
All drawings and technical information on a duplicate. In the contract after the commencement of advances to two weeks after the delivery, drawings and other technical information with the equipment delivered.

Model explanation:

Magnetic steel used hydraulic transmission Conjugate structure, by the shell, sensors, magnetic conjugate, refractories, dumping furnace, water-cooled cable component.

Structure:

Electrical parts of the equipment include rectification transformer, low-voltage switch cabinet, medium frequency power cabinet, filter reactor, and compensation capacitor bank and water tank.

Equipment Constitution:

in all the equipment manufacturers has been completed, the buyer the invitation of the technical staff to the equipment manufacturing plants, to participate in the pre-inspection equipment and training.
6.1 Pre-acceptance content

1) general inspection
2) security check
3) Body size detection assembly
4) induction loop insulation manufacturing quality inspection and pressure test
5) induction coil and the electric space heaters shell measuring
6) and the furnace shell coil insulation resistance measurement
7) and the furnace coil magnetic yoke of insulation resistance measurement
8) IF furnace insulation pressure test
9) the hydraulic test coil
10) matching pieces of inspection, including models, specifications, pre-certification inspection
11) Availability of pre-check the integrity of the technical documents
