Pig Manure Anoxia Tank Submerged Mixer

  Submersible mixer for sewage treatment plant

Submersible mixer drawing

Product Description

1, submersible mixer can meet the technological requirement for
homogeneity and fluidity of solid-liquid two-phase flow and solid-liquid-gas three phase flow in biochemical course of the water
treatment process. It is composed of the submersible motor, impeller, and installation system etc.. The submersible mixer is in direct
connection structure. Comparing with the traditional high-power electric motor that retards speed.

2,submersible mixer is supporting by the conventional four-motor and highefficiency
reducer, compared to Multi-motor can significantly reduce the power of burden, can be saving energy more than 15%.

3,The submersible mixers are mainly used for mixing, agitating and making ring flows in the process of municipal and
industrial sewage treatment and can also be used for equipment maintenance of the landscape water circulation through
agitation, they can achieve the function of creating water flow, improving water quality, increasing oxygen content in the water
and effectively preventing the sedimentation of the suspended substances.

Feature

pact structure,small volume,light weight, easy operation maintenance,fast installation,long service life etc.

2.the blade has the self-cleaning function, can prevent sundries wind,blocking

3.can combine with aeration system to make energy reduced greatly, greatly increase oxygen volume, effective prevent sediment.

4.motor winding is F grade insulation, protection grade is IP68.

5.all fastener is stainless steel.

Specification Introduction:

QJB0.85/8-260/3-740s

QJB------ submersible mixer

260----- impeller dia

740------- impeller rotate speed(r/min)

0.85------ motor power(KW)S--------stainless steel

matching power range:0.85-10KW impeller dia range:260-615mm

Impeller rotate range:180-980r/min

Function and application condition:

This mixer suitable for all kind of water treatment process which need keep solid,liquid_ two phase or solid,liquid ,air three phase uniform mixing reaction area.

Normal continuous operation condition:

Maxi temperature no over 40°C  medium PH 5-9

Medium density no over 1150KG/M^3

long term diving operation, diving water depth no over 20m

Attention items when chose models:

In order to guarantee mixer to get the best operation effect, pls supply the Application purpose

 tank type and dimension

 Mixing media characteristic: contain Viscosity, density, temperature and solid content etc.

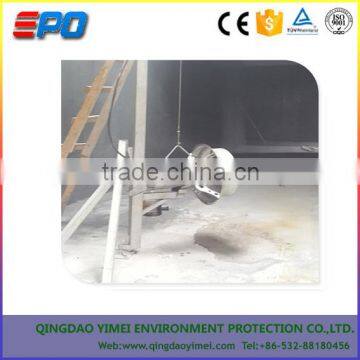

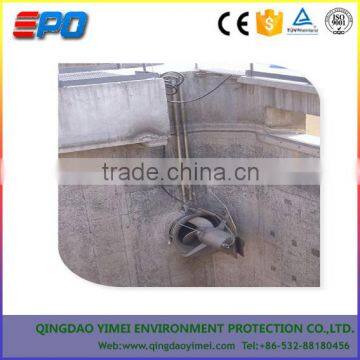

Installation system:

The special install system of mixer can be fast installation and dismantle submersible mixer no need discharge out the sewage in tank.

When tank depth H <4m, suggest adopt install system Ⅰ-1. The diving depth

Can make adjustment in vertical direction according to requirement, and it can rotating maxi angle plus or minus 60° around guide pad is in horizontal direction inner hoist system base,supporting bracket and below bracket and all concerned connect face all adopt expansion bolt fix, no need reserved hole.

Installation system Ⅱ using guide rope instead of guide pad, it has the feature of convenient installation, simple site installation etc, and effective improve too much depth tank condition, due to guide pad installation error and lead to can’t normal hoist condition.
