HOT MBR Integration Water Reuse System

MBR integration water reuse equipment

The MBR is a suspended growth-activated sludge system that utilizes microporous membranes for solid/liquid separation instead of secondary clarifiers. The system uses precision filter membranes having pore sizes of 0.1 µm. MBR treated water can be used for landscaping, toilet flushing, and a variety of other applications.

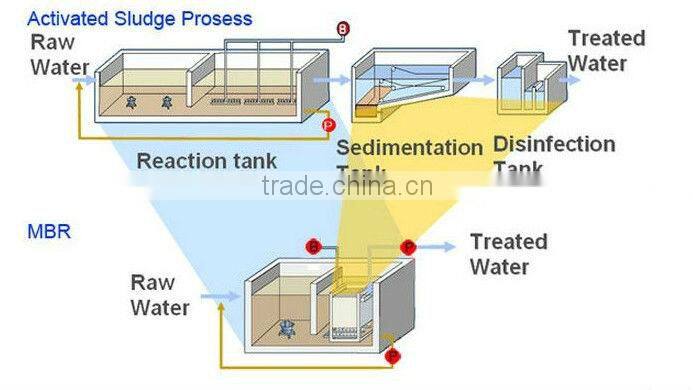

System Flow Scheme: The MBR systems allow for size reduction of the structures required by up to 70 % and even increase the performance of wastewater treatment plants.

Membrane Modules:

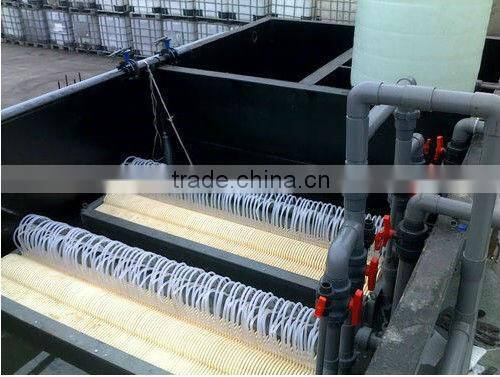

The principle of membrane filtration is based upon the separation of solids suspended in a watery solution by means of a pressure difference. While the water permeates through the membrane, the solids, bacteria and even most viruses are retained on the concentrate side on the membrane surface where they are removed by relative movement. The MBR system is provided with multiple membrane elements in an integrated membrane module in 2 or 3 stages in an aerobic tank. The MBR systems utilize side-stream cross-flow membrane configuration. The wastewater is filtrated using suction filtration, and the filtered water becomes treated. Air is supplied from the air diffuser installed on the bottom of the membrane module to prevent sludge from adhering to the membrane surface. Thus, the system can perform stable treatment without getting clogged.

Water Treatment Quality:

BOD < 5 mg/L

TSS < 1 mg/L

Turbidity < 1 N.T.U

Total bacterial removal 99.99% virus removal

Key Benefit of MBR:

 High efficiency / Low maintenance

Membrane modules are backflushable

Easy to clean

Yield 60-80% less sludge than conventional system

Compact design – footprint 75% smaller than conventional

Possibility of direct and indirect water reuse
