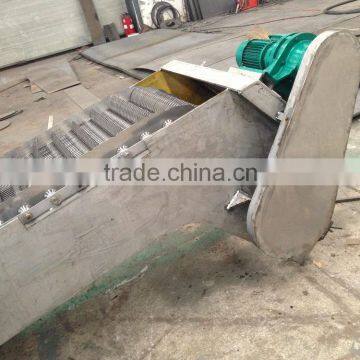

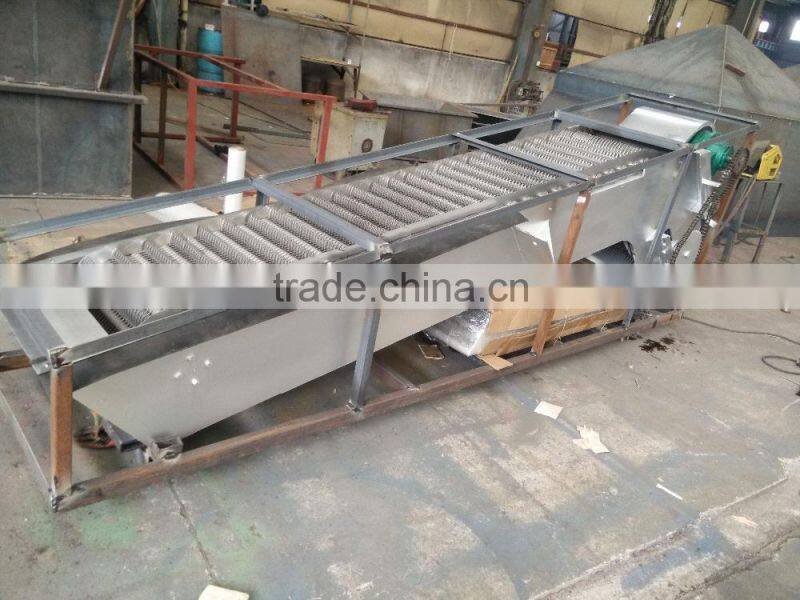

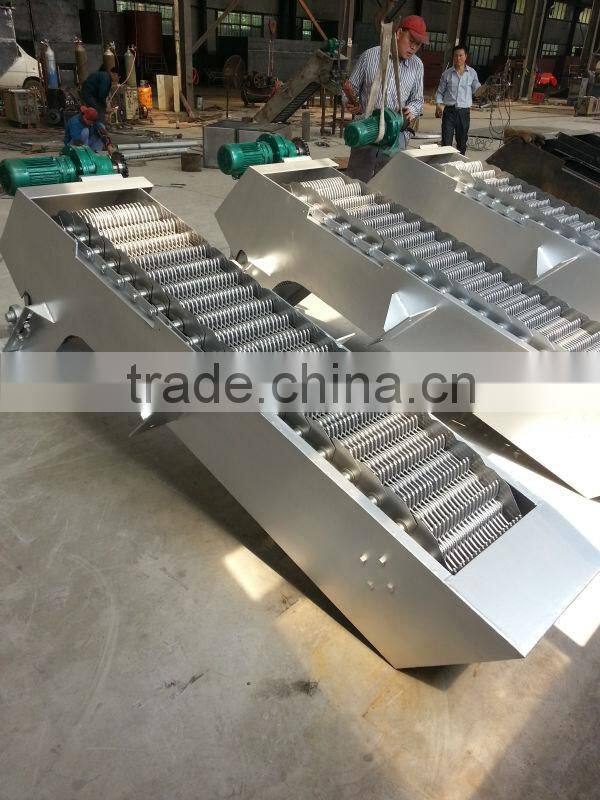

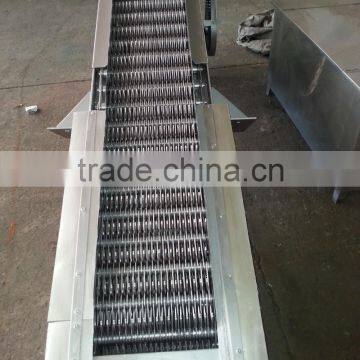

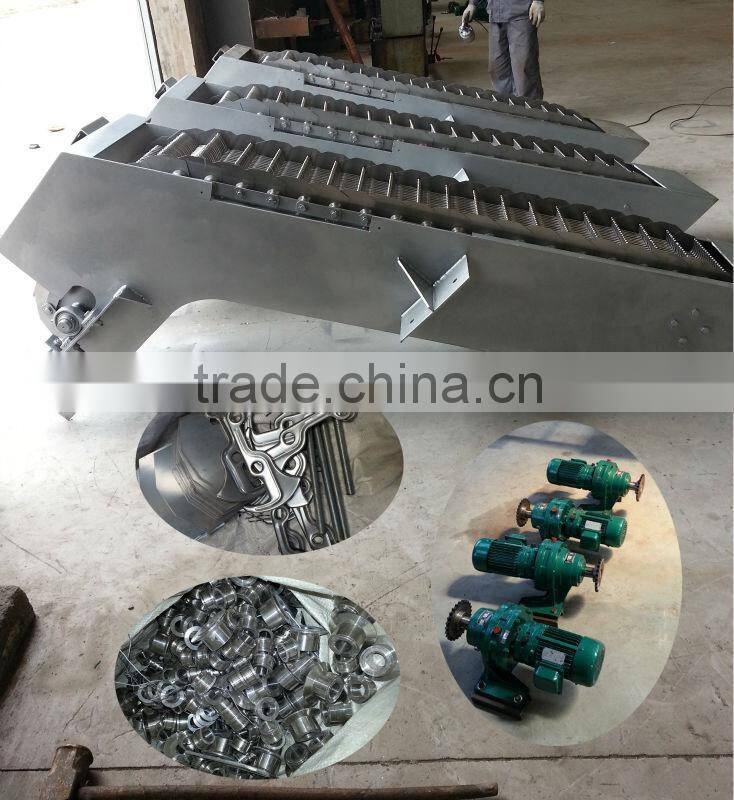

Automatic Filter Sieve Machine

 automatic filter sieve machine

Structure characteristic

1. XHG type automatic fine screen machine is composed of the gate teeth, gate shaft, and chain plate gear up grille, to replace the traditional grille article of the gate.
2. Grill on the frame in the back sports, which will intercept and constantly in the sewage suspended separation out of the water, gate by turn down to brush the slag in the fight.
3. The advantages of being able to separate suspended for water, and high efficiency, stable operation, grille and water level difference is small, and not easy jam. This machine suitable for thick grille use.
4. The gate grille tooth engineering plastics or stainless steel can be two kinds of materials manufacturing, gate tooth axis and chain plate by stainless steel, greatly improving the grille overall corrosion resistance.
5. The grille general appropriate clearances with stainless steel gate teeth.

Advantage

1. Mechanical bar screen machine biggest advantage is a high degree of automation, high separation efficiency, power consumption is small, no noise, corrosion resistance, good performance in unmanned circumstance can ensure continuous stable work, set up overload safety protection devices, in equipment is at fault, will produce the acoustic alarm and automatic stop, can avoid equipment overload.

2. This equipment can according to user needs to arbitrarily regulate equipment operation, running, realize periodic intervals according to level difference before automatic control of geogrid; And a manual control functions, with convenient maintenance. Users can use either the work according to different selection.

3. Equipment specification according to machine 300-1500 width points type. Machine, and then make it more than 1500mm wide and online. Bar gap 1mm, 3mm, 5mm into 10mm, 20mm, 30mm, 40mm, 50mm from various specifications, water, hoisting height had total, solid-liquid separation and the shape of separation material, particle size to choose bar gap. Can be based on user needs to choose material of engineering plastic, nylon, stainless steel production; the rake tooth main frame has stainless steel material and carbon steel corrosion two kinds.

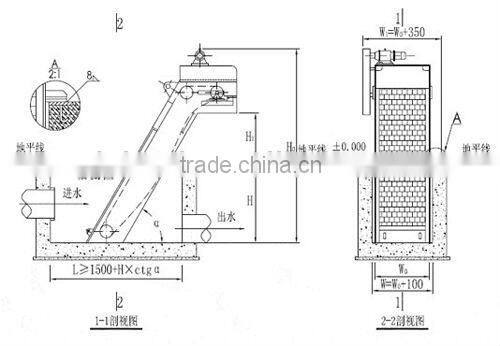

Chart

Application

1. Water supply and drainage engineering pump stations, water inlet fine grille, remove fine grille between the grid slag;
2. Textile, printing, dyeing, slaughtering, leather, paper making industrial wastewater solid-liquid separation;
3. Sugar, wine, food processing of solid-liquid separation.
