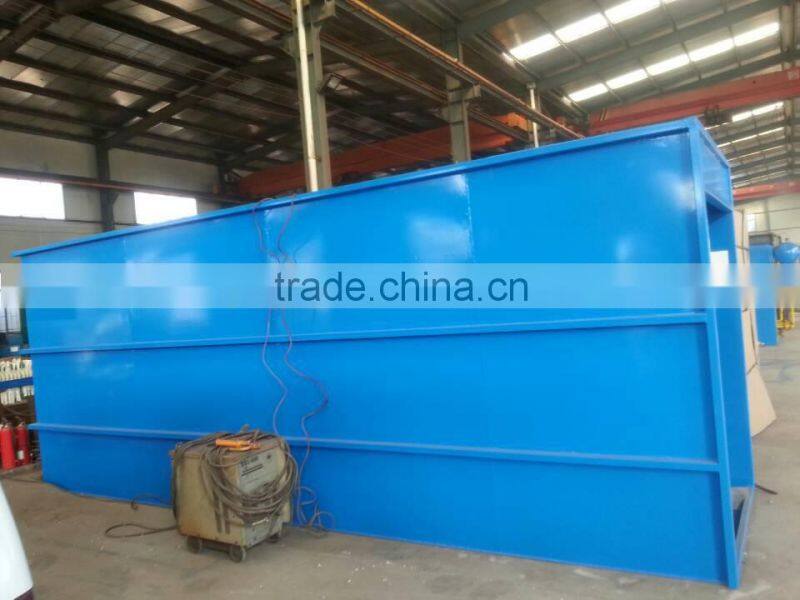

Industrial Wastewater Treatment System

Name: Industrial Wastewater Treatment System
Brand: YIMEI
SKU: 111760891
Availability: InStock

Qingdao Yimei Environment Project Co., Ltd.

US$ 2,300 - 12,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

YIMEI

Model Number:

YMYT-50

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingndao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name YIMEI

Model Number YMYT-50

Industrial Wastewater Treatment System
Our company based on the SBR technics ( sequencing batch reactor) developed a new kind matched equipment which can make up SBR many deficient; which can widely apply to all kind of sewage treatment plant.. the package sewage treatment plant principle is a kind of biochemical treatment which combine activated sludge microbiological method and new biological membrane manner. In treatment process, large bacteria and bacteria membrane update, adopt biological carrier, improve the contact efficiency of micro- organism and pollutant matter in sewage; the whole treatment equipment produce anaerobic-anoxia- aerobic three kind of environment take turns function, improve purified water ability of different kind of microbial population, intensify organism removal and nitrogen and phosphorus removal function.

Item		YMSZ-1	YMSZ-3	YMSZ-5	YMSZ-7.5	YMSZ-10	YMSZ-15	YMSZ-20	YMSZ-30
Disposal capacity(m³/h)		1	3	5	7.5	10	15	20	30
equipment Nm		1	1	1	1	2	2	2	3
Primary clarifier		1.8	5.5	9	14	18	27	36	50
Contact oxidation tank (m³)		5.0	14.5	24	36	44	63	83	130
Secondary clarifier surface load (m³/m²h)		1.2	1.3	1.3	1.3	1.2	1.2	1.5	1.5
Disinfection tank (m³)		0.6	1.8	2.8	4	5.5	8	10	15
Air blower	model	HC-25IS	HC-30IS	HC-50C	HC-50IS	HC-60IS	HC-80S	HC-100S	HC1-100S
	power(kw)	0.4	0.75	1.5	2.2	2.2	3.7	5.5	5.5
	units	2	2	2	2	2	2	2	2
sewage pump	model	AS10-2CB					AS16-2CB
sewage pump	power(kw)	1.0					1.6
Total Weight(t)		5.5	6.5	8	11	17	20	21	29
Occupy area(m²)		6	14	20	30	50	65	75	115
