Help CenterPlate Frame Filter Press For Water Treatment/Solid-Liquid Separation Wastewater Treatment Equipment
Related Products
-
Hydraulic Automatic Filtering Chamber Filter PressUS$ 8,760 - 9,680MOQ: 1 Set -
Chamber Hydrautic Filter PressUS$ 1,480 - 1,518MOQ: 1 Set
-
PP Chamber Filter PressUS$ 4,350 - 5,690MOQ: 1 Set
-
Sludge Screw PressUS$ 2,500 - 15,000MOQ: 1 Set
-
Belt Filter Press Slurry DewateringUS$ 9,500 - 22,000MOQ: 1 Set
Main material:

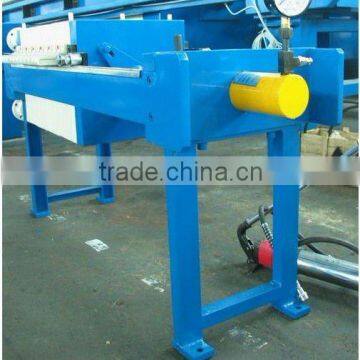

1.Mechanical electric integrated motorized hydraulic automatic pulling plate chamber filter press,
hydraulic oil cylinder diameter 200MM ( it is made of 45 #seamless steel pipe,piston rod is 45 # steel);
high-strength steel structure rack,panel is 16 Manganese plate, crossbeam is 16 manganess low carbon alloy steel plate (thickness 30mm), crossbeam bag stainless steel, stainless steel chain and pulling plate vessel.

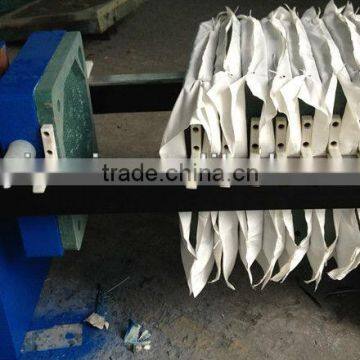

2. Reinforced PP pure material filter plate, special acid-resisting thick filter cloth.
3. Electric adopt DELIXI, button switch adopt sanli, Mitsubishi PLC.
4. Hydraulic system hydraulic parts adopt Shanghai plunger pump2.5L,check valve,overflow valve, YTN ,solenoid valve etc.
main technique data
Specification | XMYZB20/630-UK | Remark |
Filtering area (m2) | 20 |
Electric hydraulic, automatic pressurize , Electric driven hydraulic
|
Filtering form | close flow double effluent water | |
Filter plate material | Pure fresh material polypropylene | |
Rack material | steel structure plate 16 manganese steel | |
Filter chamber volume | 640 | |
Filter plate specification (mm) | 630x630 | |
Filter plate thickness (mm) | 50 | |
Filter plate quantity (pcs) | 31 | |
Whole machine size (mm) | 3420×840×1150mm | |
Motor power (kw) | 1.5 | |
Working pressure of filter chamber | 0.6(Mpa) | |
Maximum Stroke Of maxi stroke | 400MM | |
Filter cake thickness (mm) | 28 | |
Highest filtering temperature | <80°C | |
Oil cylinder working pressure | <18MPA | |
Whole weight(Kg) | 1400KG | |
Acid-resistance filter cloth | Polyester fibre thick about 900 mesh
|
| total capacity l | outer frame size (MM) | filter plate thickness(MM) | the filter room number pcs | filter cake thickness | long×wide×high(mm) | filter indoor pressure of work | the whole machine quality (kg) | |||
| 887×554×518 | ≤0.6 | 130 | ||||||||
| 5.6 | 315×820 | 25 | 4 | 27 | 989×511×518 | 140 | ||||
| 8.4 | 315×280 | 6 | 1193×544×518 | 160 | ||||||
| 14 | 10 | 1499×544×518 | 170 | |||||||
| 22.4 | 16 | 1703×544×518 | 190 | |||||||
| 28 | 20 | 1958×544×518 | 200 | |||||||
| 35 | 25 | 2213×544×518 | 220 | |||||||
| 42 | 30 | |||||||||
1. How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
3. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
4. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
5. How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
6. How do you manufacture your equipment ?
A:Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
7. How to install after the equipments arriving destination? A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
